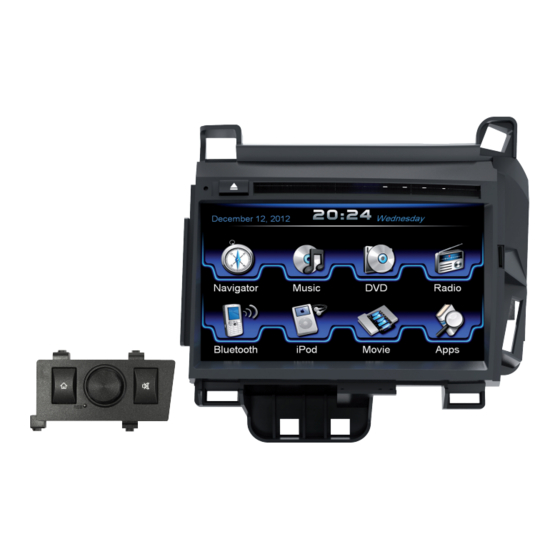

ESX VISION NAVICEIVER VN710 LX-CT200h Installation Manual
Hide thumbs
Also See for VISION NAVICEIVER VN710 LX-CT200h:
- Installation manual (8 pages) ,
- Owner's manual (40 pages) ,
- Owner's manual (40 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ESX VISION NAVICEIVER VN710 LX-CT200h
Summary of Contents for ESX VISION NAVICEIVER VN710 LX-CT200h

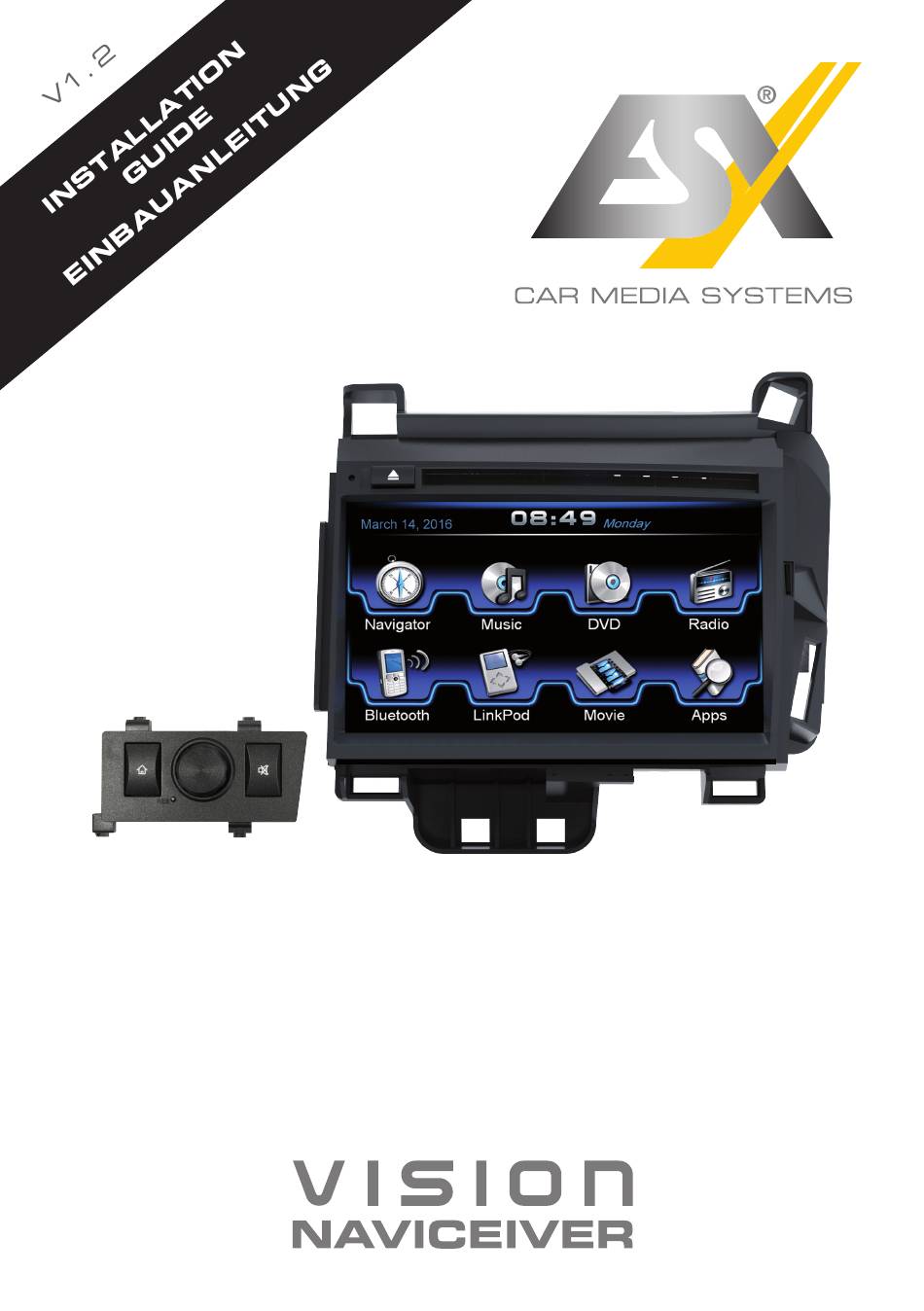

- Page 1 VN710 LX-CT200h...
- Page 2 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl MAIN DEVICE – Hauptgerät CABLE REMOTE CONTROL – Kabel-Fernbedienung STYLUS – Markierstift MICRO SD CARD 8GB INKL: NAVIGATION SOFTWARE – MicroSD Speicherkarte 8GB Navigationssoftware VIDEO INPUT CABLE SET Video-Eingang Kabelsatz REAR CAM INPUT Rückfahrkamera-Eingang...
- Page 3 SCOPE OF DELIVERY / Lieferumfang ITEM FIGURE SLOT QUANTITY Artikel Abbildung Steckplatz Anzahl AUDIO OUT (SUBWOOFER/CENTER) Audio-Ausgang (Subwoofer/Center) USB CABLE SET WITH 1CONNECTOR INCL. 1 CONNECTOR FOR THE CAR- SPECIFIC USB PORT USB Kabelsatz mit 1 Anschluss inkl. 1 Anschluss für den fahrzeugspezifischen USB-Anschluss IPOD / IPHONE CONNECTOR iPod / iPhone Anschluss...
- Page 4 CONNECTION DIAGRAM / Anschlussdiagramm BT-MICROPHONE BT-Mikrofon AUDIO OUT (DUAL ZONE) Audio-Ausgang (Dual Zone) AUDIO OUT (SUBWOOFER/CENTER) WITH REMOTE TURN ON Audio-Ausgang (Subwoofer/Center) mit Einschaltleitung „Remote“ VIDEO INPUT CABLE SET Video-Eingang Kabelsatz WITHOUT FUNCTION Ohne Funktion SPECIFIC CONNECTORS OF THE VEHICLE Fahrzeugspezifische Stecker WITHOUT FUNCTION AM/FM ANTENNA...
- Page 5 INSTALLATION NOTES / Installationshinweise Important Notes prior to installation: This guide is an installation aid for a proper installation of the device. Please read the following instructions prior installation: 1.) Please treat all parts of the sound system and the components of your vehicle with caution. 2.) Follow under all circumstance the regulations of the vehicle manufacturer and do not make any modifications on the vehicle, which could interfere the driving safety.
- Page 6 Vermeiden Sie das Verlegen des Kabels über die Lenksäule. In der Regel sollte das Kabel lang genug sein, um die A-Säule (Fahrerseite) über die Beifahrerseite zu erreichen. Ein evtl. werksseitig vorhandenes Mik- rofon ist nicht kompatibel mit dem ESX Gerät. Bitte verwenden Sie das mit- gelieferte Mikrofon.
- Page 7 INSTALLATION NOTES / Installationshinweise Handbrake connection: Connect the cable from the handbrake connection (14 or 15) with the handbra- ke signal in your vehicle. The signal must be connected with ground while the handbrake is applied. Please contact for a proper and safe installation your car dealer! According to legal regulations, the device must playback a DVD or video on the main screen only with the handbrake applied, Never connect the the cable permanently with the vehicle‘s ground.
- Page 8 ESX Car Media Systems · Audio Design GmbH Am Breilingsweg 3 · D-76709 Kronau/Germany Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510 www.esxnavi.de - www.audiodesign.de ©2017 All Rights Reserved...
