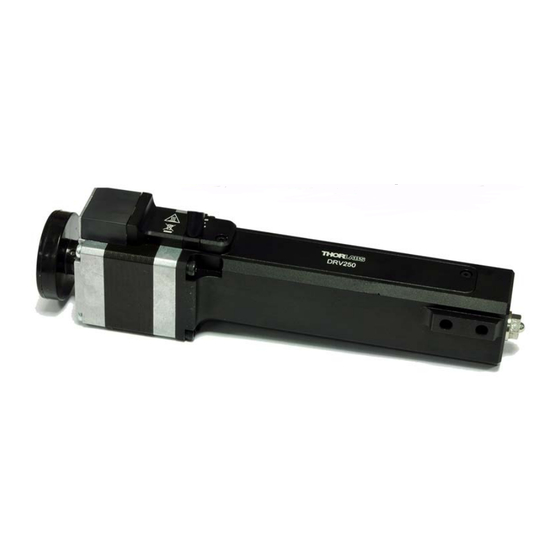

THORLABS DRV225 User Manual

THORLABS DRV225 User Manual

Stepper motor actuators

Advertisement

Quick Links

DRV225 and DRV250
Stepper Motor Actuators
User Guide
Original Instructions
HA0397T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRV225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for THORLABS DRV225

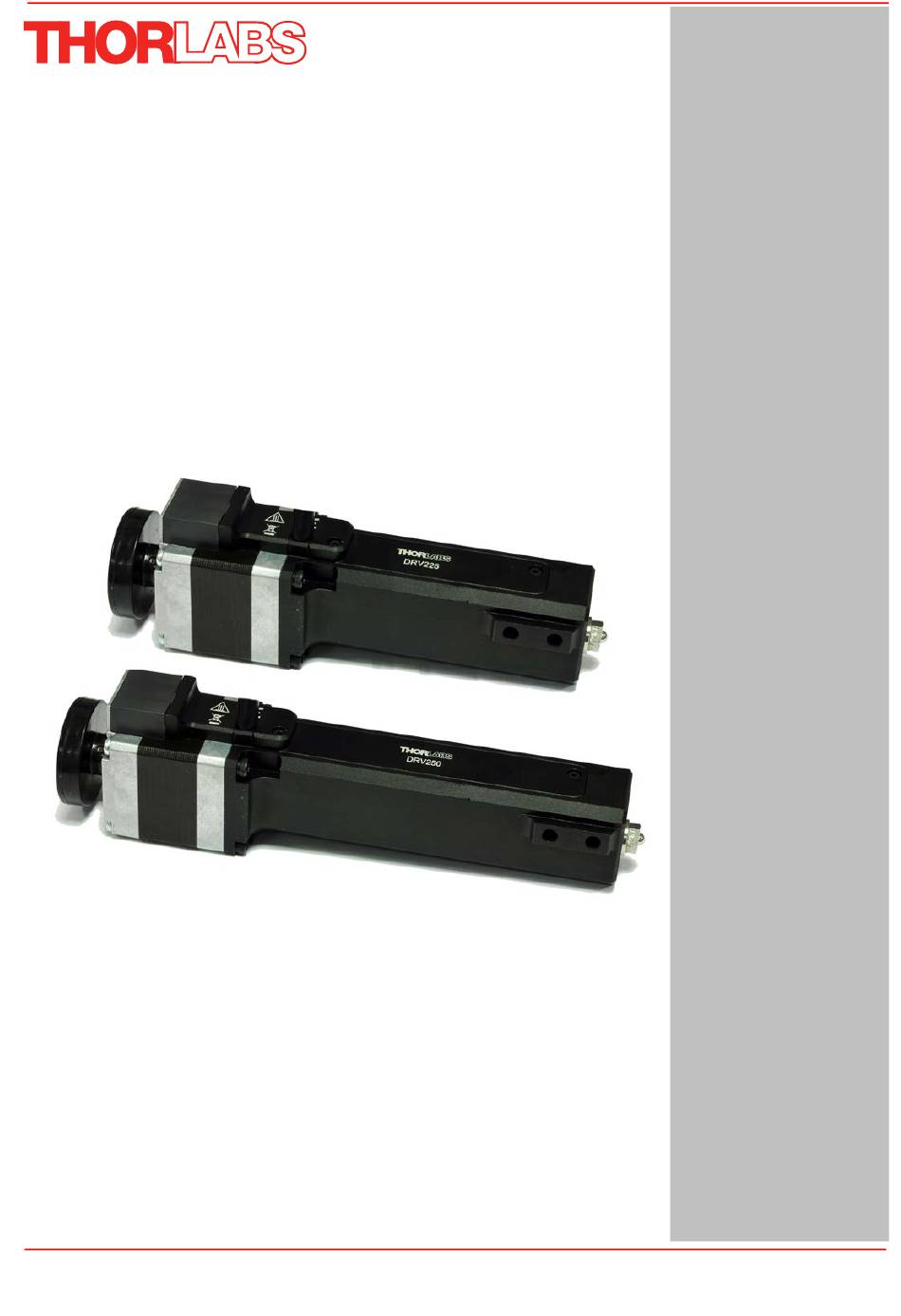

  • Page 1 DRV225 and DRV250 Stepper Motor Actuators User Guide Original Instructions HA0397T...
  • Page 2: Table Of Contents

    DRV225 and DRV250 Stepper Motor Actuators Contents Chaper 1 Overview ..........................1 1.1 Description ........................1 Chaper 2 Safety ............................2 2.1 Safety Information ......................2 2.2 General Warnings ......................2 Chaper 3 Operation and Maintenance ....................4 3.1 Environmental Conditions ....................4 3.2 Fitting the Motor Actuator ....................
  • Page 3: Chaper 1 Overview

    Chapter 1 Overview Chapter 1 Overview 1.1 Description These motor actuators offer 1" (25 mm) and 2” (50 mm) of travel, and when used with one of our stepper motor controllers, such as the BSC201, can achieve a default maximum speed of 50 mm/s. They provide sufficient torque for large loads up to 180 N. The hybrid stepper motor, with its rotor consisting of 50 individual magnetic teeth, is ideally suited for micro-stepping applications.
  • Page 4: Chaper 2 Safety

    DRV225 and DRV250 Stepper Motor Actuators Chapter 2 Safety 2.1 Safety Information For the continuing safety of the operators of this equipment, and the protection of the equipment itself, the operator should take note of the Warnings, Cautions and Notes throughout this handbook and, where visible, on the product itself.
  • Page 5 Check all connections before supplying power to the motor. Caution The control PC used to operate the driver for the DRV225 and DRV250 actuators must be running Kinesis Software version 1.14.20 or higher. Earlier versions of software do not support this product.
  • Page 6: Chaper 3 Operation And Maintenance

    Fig. 3.1 Fitting a motor drive Caution When a DRV225 or DRV250 motor actuator is fitted, the stage must be fitted with an LNR50P4(/M) baseplate before it is fitted to the work surface - see www.thorlabs.com for more information. The legacy LNR50P1 baseplates are not compatible with these motors.
  • Page 7: Selecting The Stage Type

    2) Ensure that the device is connected to the PC and powered up. 3) Run the Kinesis software - Start/All Programs/Thorlabs/Kinesis/Kinesis. 4) On start-up, the 'Actuator/Startup Settings’ window is displayed This window allows the correct actuator to be selected.
  • Page 8: Maintenance

    DRV225 and DRV250 Stepper Motor Actuators 5) Click the arrow to the right of the window, and select the actuator type (i.e. DRV225 or DRV250) from the list displayed. Fig. 3.3 Select Actuator Stage Settings Window - 2 6) Click OK.
  • Page 9: Pin Assignments

    Fig. 3.4 Output Connector 3.6 Extension Cables The motor is supplied with a 0.5 m flying lead and a 3 m (PAA613) extension cable. Additional extension cables are available separately - see www.thorlabs.com for more details. Rev B Jan 2020 Page 7...
  • Page 10: Chaper 4 Specifications

    DRV225 and DRV250 Stepper Motor Actuators Chapter 4 Specifications 4.1 Specifications Specification DRV225 DRV250 Travel Range 25 mm 50 mm Unidirectional Repeatability ±1.6 µm Bidirectional Repeatability ±3.9 µm 180 N Maximum Pushing Force Max Velocity 50 mm/s Max Acceleration 50 mm/s...
  • Page 11: Chaper 5 Regulatory

    Chapter 5 Regulatory Chapter 5 Regulatory 5.1 Declarations Of Conformity 5.1.1 For Customers in Europe 5.1.2 For Customers In The USA This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules.
  • Page 12: Chaper 6 Thorlabs Worldwide Contacts

    Contact Thorlabs for more information. Waste treatment is your own responsibility. "End of life" units must be returned to Thorlabs or handed to a company specializing in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
  • Page 13 www.thorlabs.com...
