Summary of Contents for THORLABS DRV001

  • Page 1 DRV001 Stepper Motor Actuator User Guide Original Instructions...
  • Page 2: Table Of Contents

    Chapter 3 Specification ................. 7 Chapter 4 Regulatory ..................8 4.1 Declarations Of Conformity ..............8 4.1.1 For Customers in Europe ................... 8 4.1.2 For Customers In The USA ................8 Chapter 5 Thorlabs Worldwide Contacts ........... 11 HA0149T Rev 7 Sept 2016...
  • Page 3: Chapter 1 Overview

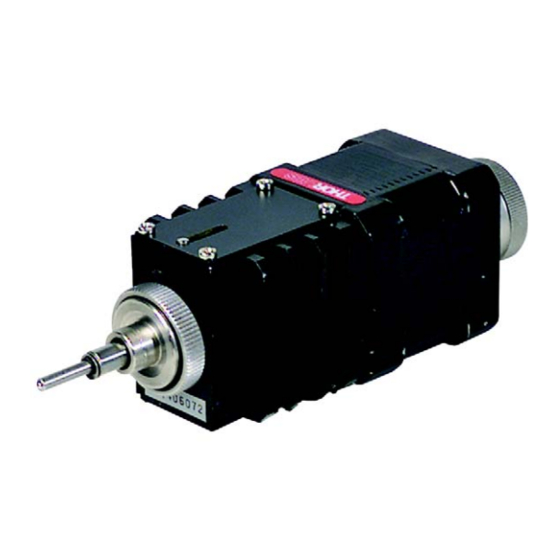

    Modular Quick Connect Adapter (MCA1 for Ø3/8” mounting or MCA2 for Ø10mm mounting). When driven by a Thorlabs BSC20x series stepper motor controller, this actuator is capable of speeds as high as 4mm/sec and offers 8mm of travel. The powerful stepper motor is capable of handling a load capacity of up to 21.8 Kg (48lb).
  • Page 4: Chapter 2 Operation And Maintenance

    1) Shut down all applications using the APT s erver (e.g. APT User or y our own custom application). 2) Run the APT Config utility - Start/All Programs/Thorlabs/APT Config/APT Config. 3) From the 'APT Configuration Utility' window, click the 'Stage' tab.
  • Page 5: Dimensions

    DRV001 Stepper Motor Actuators Note To ensure correct operation, it is important to select the correct stage type for your controller. If using a BSC20x series controller, select the appropriate ‘HS NanoMax’ option. If using a legacy BSC0xx or BSC10x controller, choose an option without the ‘HS’...
  • Page 6: Using The Mca Modular Quick Connect Adapters

    Chapter 2 2.4 Using the MCA Modular Quick Connect Adapters Modular quick connect adapters allow the DRV001 actuators to be fitted to stages with standard mounting clamps (MCA1 for Ø3/8” mounting or M CA2 for Ø10mm mounting). Simply remove the circlip from the end of the drive rod, remove the washers, then screw on the adapters.
  • Page 7: Chapter 3 Specification

    Chapter 3 Specification Specification DRV001 8 mm Travel Range 0.5 mm Lead Screw Pitch 0.5 µm Bidirectional Repeatability 21.8 kg (48 lbs) Max Load Capacity 40.0 µm/s to 4 mm/s Velocity Range 1.8° Full Step Angle Step Angle Accuracy Rated Phase Current 4.6 Ω...
  • Page 8: Chapter 4 Regulatory

    Chapter 4 Regulatory 4.1 Declarations Of Conformity 4.1.1 For Customers in Europe In accordance with the following Directive(s): 2006/42/EC Machinery Directive (MD) 2004/108/EC Electromagnetic Compatibility (EMC) Directive 2011/65/EU Restriction of Use of Certain Hazardous Substances (RoHS) this equipment has been tested and is in conformity with the applicable requirements of the following documents: EN ISO 12100 Safety of Machinery.
  • Page 9 DRV001 Stepper Motor Actuators...
  • Page 10 Chapter 4 HA0149T Rev 7 Sept 2016...
  • Page 11: Chapter 5 Thorlabs Worldwide Contacts

    UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com techsupport.uk@thorlabs.com Europe Scandinavia Thorlabs GmbH Thorlabs Sweden AB europe@thorlabs.com scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. sales.fr@thorlabs.com brasil@thorlabs.com Japan China Thorlabs Japan, Inc. Thorlabs China sales@thorlabs.jp chinasales@thorlabs.com...
  • Page 12 Thorlabs Inc. Thorlabs Ltd. 56 Sparta Ave 1 Saint Thomas Place, Ely Newton, NJ07860 Cambridgeshire CB7 4EX, Tel: +1 973 579 7227 Tel: +44 (0) 1353 654440 Fax: +1 973 300 3600 Fax: +44 (0) 1353 654444 www.thorlabs.com www.thorlabs.com...
