Battery Charger User Guide
MODEL: AQ15000
AC Input:220-240VAC, 50-60Hz, 2.5A
DC Output: 12VDC, 15A;
24VDC, 7.5A;
12VDC, 20A (5 minutes)
Temperature Controlled
Please read and understand all important safety and operating instructions before using this
charger. In addition, please read and follow all battery and vehicle manufacturer's
instructions and cautionary markings.
www.aqtron.com - info@aqtron.com
LAD/AQ15000
®
Advertisement
Table of Contents
Related Manuals for AQ-Tron AQ15000
Summary of Contents for AQ-Tron AQ15000

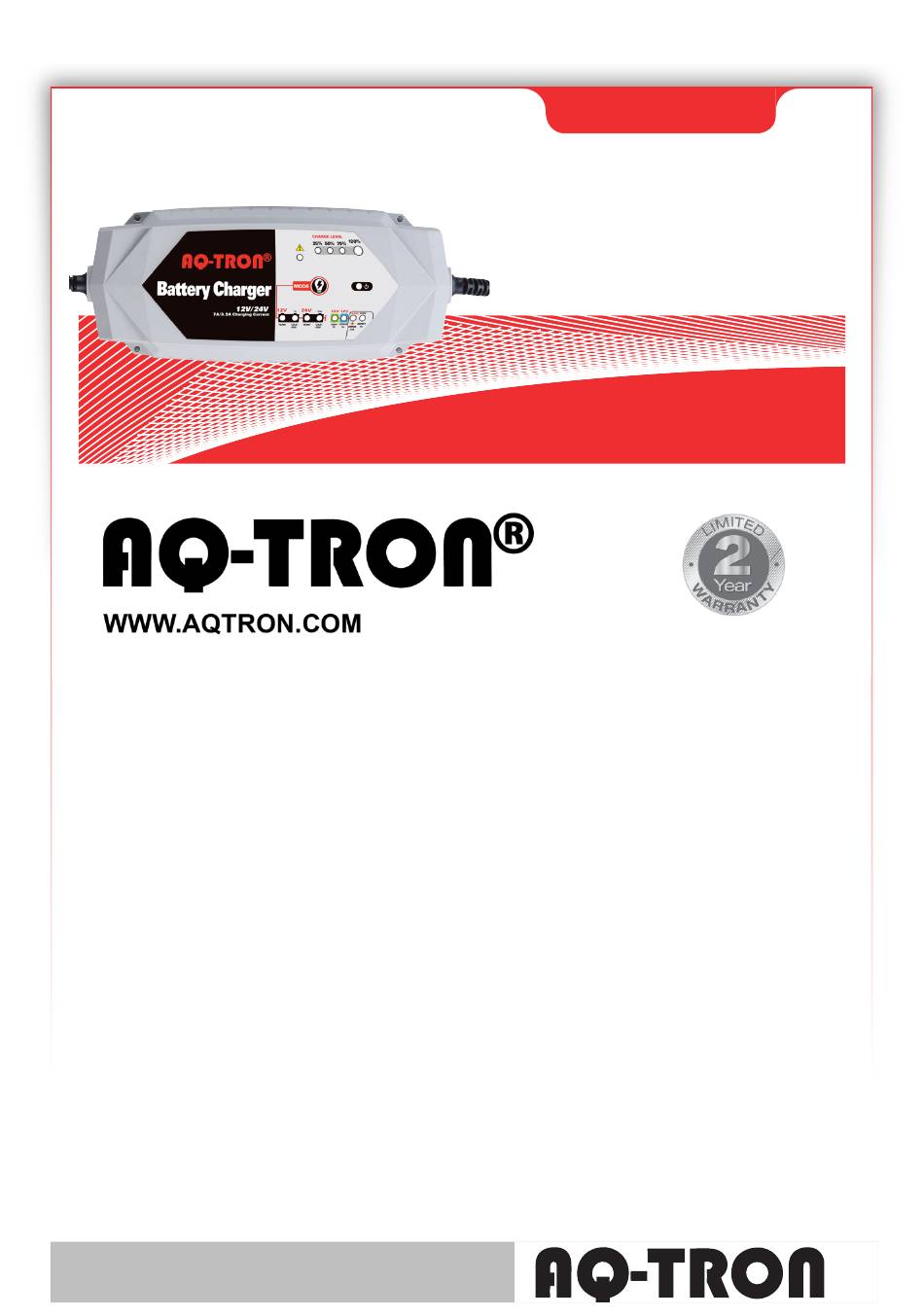

- Page 1 MANUAL LAD/AQ15000 Battery Charger User Guide MODEL: AQ15000 AC Input:220-240VAC, 50-60Hz, 2.5A DC Output: 12VDC, 15A; 24VDC, 7.5A; 12VDC, 20A (5 minutes) Temperature Controlled Please read and understand all important safety and operating instructions before using this charger. In addition, please read and follow all battery and vehicle manufacturer’s instructions and cautionary markings.
-
Page 2: Important Safety Instructions
MANUAL LAD/AQ15000 IMPORTANT SAFETY INSTRUCTIONS SAFETY PRECAUTIONS FOR WORKING IN THE PROXIMITY OF A BATTERY 1) Batteries generate explosive gases during normal operation. Use in well-ventilated area. 2) Consider having someone close enough or within the range of your voice to come to your aid when you work near a battery. - Page 3 ABOUT AQ15000 1) The AQ15000 is designed for charging all types of 12V lead-acid ,24V lead-acid and 12V lithium-ion batteries, including WET (Flooded), GEL, MF (Maintenance-Free), EFB (Enhanced Flooded Battery), AGM (Absorbed Glass Mat),AGM+ (Absorbed Glass Mat+), and LIB (Lithium Ion) batteries.
-
Page 4: Connecting To The Battery
MANUAL LAD/AQ15000 battery. 7) Following is the charger’s technical specification: AC Input 220-240VAC, 50-60Hz, 2.5A DC Output 12VDC, 15A; 24VDC, 7.5A; 12VDC, 20A (300 seconds) Temperature Controlled Charger Type 8 steps, Full-automatic Charging Cycle Start Voltage > 1V Housing Protection IP33 All Types of 12V &24V Lead-acid Batteries,... -
Page 5: Charging Modes
CHARGING MODES AQ15000 has nine modes: Standby, 12V NORM, 12V COLD/AGM, 24V NORM, 24V COLD/AGM 12V AGM+, 12V LITHIUM, REPAIR, 13.6V SUPPLY and 12V JUMP CHARGE. Some charge modes must be held for three (3) seconds or / and pressed to enter the mode. - Page 6 MANUAL LAD/AQ15000 old, idle, stratified or sulfated batteries. REPAIR (Hold & Press) Yellow LED + 12V/24 mode LEDs 13.6V SUPPLY Converting to a DC power supply for powering 12V (When the charger is not ––– DC device or as a memory retainer when replacing...
-
Page 7: Charging Steps
MANUAL LAD/AQ15000 This mode converts the charger to a constant voltage, constant current DC power supply. When the charger is not connected with battery, it can be used to power 12VDC devices. Prior to use, read your 12VDC device manual to determine if it is suitable for use with this mode. -
Page 8: Battery Level Indicator
MANUAL LAD/AQ15000 STEP 1: DIAGNOSIS (Check if battery has connected with the charger and also check battery voltage) STEP 2: DESULPHATION (If battery voltage is too low, programs automatically generate pulsing current to remove sulphate, up to 5 hours) STEP 3: ANALYSE (Check if the battery voltage reaches to the threshold after... - Page 9 MANUAL LAD/AQ15000 level is less than 50%. When 50% is reached, the LED will be solid. The 75% Charge Red LED will slowly flash when the battery level is less than 75%. When 75% is reached, the LED will be solid.
- Page 10 MANUAL LAD/AQ15000 Only charging mode Current reduces when LED is on, four battery temperature in charger is Overheat protection level indicator LEDs too high. After cooling are flashing down, charge will begin Solid yellow REPAIR In 12V REPAIR mode ------...
- Page 11 MANUAL LAD/AQ15000 Flashing Yellow Heavily Corroded Replace with a new Warning! LED (ONLY Battery (voltage is less battery or try REPAIR for 12V lead-acid than 3V), need Repair Mode for recovery batteries) Mode NOTICE: following situation indicates that battery need to be replaced, although there is no abnormal result LED communication.
-
Page 12: Warranty
MANUAL LAD/AQ15000 responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
