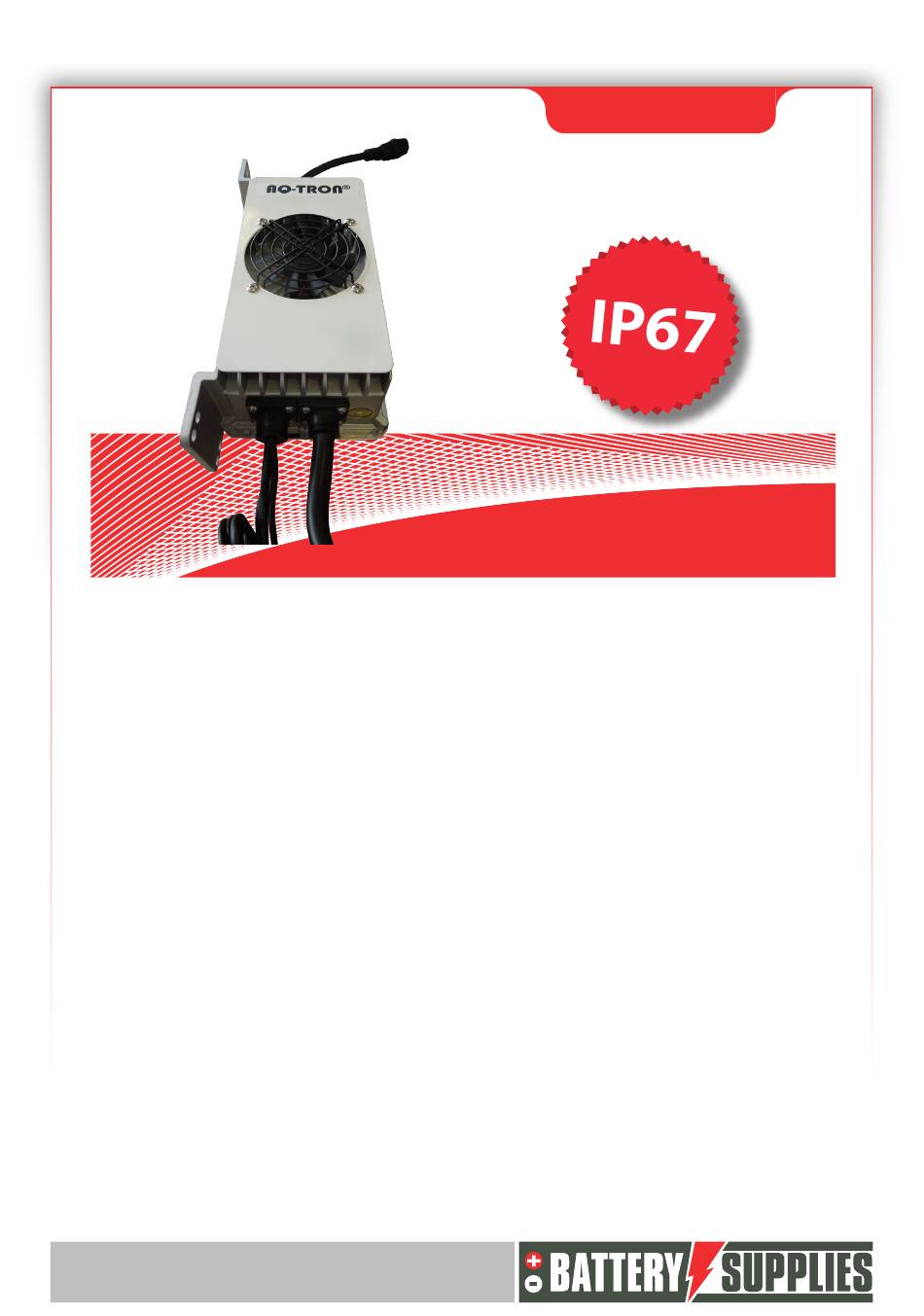

TECHNICAL DATA SHEET

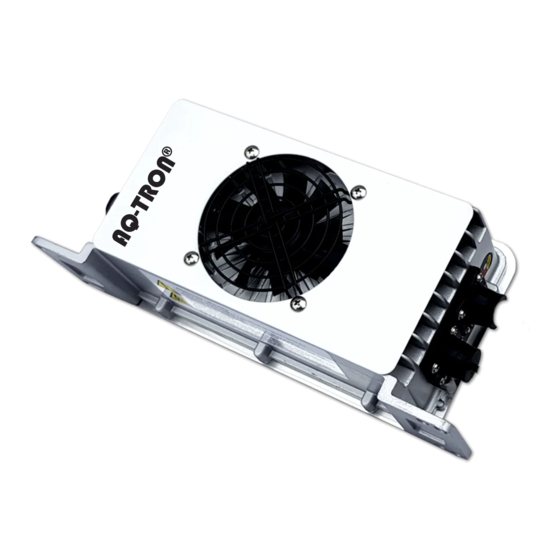

Waterproof High Frequency charger
-
Made in Europe
-
One profile : the correct charging curve is programmed in the factory and will avoid
mistakes when assembled
-
Compatible charge curve for mostly all standard batteries.
Version 'WET' : compatible for the most Semi-Traction, Monoblocs and Deep-Cycles
Version 'AGM' : compatible for all Lead Carbon ( DLC) and AGM ( DAB) batteries
Other profiles possible on demand
-
Operating Temperature: from -30°C to +65°C
-
Storage Temperature: from -40°C to +95°C
-
Humidity: from 5% to 95%
-
Altitude: up to 2000 mt
-
Protection Grade: IP67
-
V in = 180 - 264 V AC
Inclusive:
-
Battery temperature sensor : the temperature of the battery will influence the charging
curve and will increase the safety of the charging process and life time of the battery
-
Remote charge indicator
-
Interlock safety system : will prevent the vehicle from starting when the battery charger is
still connected to the grid.
Nijverheidslaan +50/56, B-8540 Deerlijk - BELGIUM
Tel +32 56 617 977 - Fax +32 56 617 955
info@batterysupplies.be - www.batterysupplies.be
AQHF WP-series
Advertisement
Table of Contents
Related Manuals for AQ-Tron AQHF WP Series
Summary of Contents for AQ-Tron AQHF WP Series
- Page 1 TECHNICAL DATA SHEET AQHF WP-series Waterproof High Frequency charger Made in Europe One profile : the correct charging curve is programmed in the factory and will avoid mistakes when assembled Compatible charge curve for mostly all standard batteries. Version ‘WET’ : compatible for the most Semi-Traction, Monoblocs and Deep-Cycles Version ‘AGM’ : compatible for all Lead Carbon ( DLC) and AGM ( DAB) batteries Other profiles possible on demand Operating Temperature: from -30°C to +65°C Storage Temperature: from -40°C to +95°C Humidity: from 5% to 95% Altitude: up to 2000 mt Protection Grade: IP67 V in = 180 - 264 V AC Inclusive: Battery temperature sensor : the temperature of the battery will influence the charging curve and will increase the safety of the charging process and life time of the battery Remote charge indicator Interlock safety system : will prevent the vehicle from starting when the battery charger is still connected to the grid. Nijverheidslaan +50/56, B-8540 Deerlijk - BELGIUM Tel +32 56 617 977 - Fax +32 56 617 955 info@batterysupplies.be - www.batterysupplies.be...
- Page 2 TECHNICAL DATA SHEET AQHF WP-series IP67 IP67 With a protection degree of IP67, the battery charger is completely resistant to water and dust. It can resist to brief period of total immersion in water. On-board use IP67 With the protection degree of IP67, the special box used and an innovative building technology, make the charger resistant to vibrations, to bumps and bad weather so is perfect for on-board use. Safe and reliable The battery charger is completely safe and reliable for long operation work and charging cycles thanks to the many safety control of which it’s equipped with. Among these, we can find: - External and internal thermal probe - Short circuit protection - Overcurrent protection - Self-diagnosis for anomalies High efficiency The WP series offers an efficiency of ≥ 94% and a power factor ≥0,99. Ideal for every battery Based on the installed charging curve, it’s possible to charge any type of battery (AGM, GEL, Lead Acid, Lithium). There is a fixed curve per charger, this curve can not be changed.
- Page 3 TECHNICAL DATA SHEET AQHF WP-series Models Every box of this series was specifically developped based on the control card that it will host to al- low an optimal heat dissipation also in extremely hot and humid environments. Severe tests were applied to guarantee a long-lasting duration over time. Power Battery Capacity Ah (C5) Dimensions Supply Model Voltage Current Module (mm) Amp (A) AQHF12-10 WP 10 A 187 x 122 x 70 AQHF12-15 WP 15 A 187 x 122 x 70 12 V AQHF12-20 WP 20 A 187 x 122 x 70 AQHF12-25 WP 25 A...
- Page 4 TECHNICAL DATA SHEET AQHF WP-series Charging process Once the battery is connected to the charger, if the battery voltage is inside an allowed range, the charge will automatically begin T he red light will start to glow to indicate the battery is connected and below 80%. Above 80% the yellow light will start to glow.
- Page 5 TECHNICAL DATA SHEET AQHF WP-series LED colors L E D Color De s cr i pti on Green/ R ed alternate flash Battery not connected B atter y Ch ar gi n g S tatus R ed flash Battery from 0% to 80% Yellow Flash Battery from 80% to 100 % Green flash...
- Page 6 TECHNICAL DATA SHEET AQHF WP-series CAREFULL Y READ THE FOLL OWING INSTRUCTIONS BEFORE CONNECTING THE DEVICE TO THE MAINS VOLTAGE AND/OR TO THE BATTERY. ALSO MAKE SURE THAT THE SIZE OF THE DEVICE IS ADEQUATE TO THE BATTERY CONNECTED TO IT. Carefully read these instructions to use the device at its best and avoid potential problems in future.
- Page 7 TECHNICAL DATA SHEET AQHF WP-series Warranty This device is built by following high qualitative standards to assure its high quality. Every single construction phase is overviewed by specialized personnel. The warranty is granted ONLY AND IF Battery Supplies agrees that the damage claimed is caused by faulty parts installed during the construction or assembly of the device. In the event of a warranty claim, the customer will have to dispatch the unit in question to Battery Supplies, if it is then deemed that the fault/damage was caused by faulty parts installed during the constructions or assembly, Battery Supplies will provide a replacement of the faulty part/compo- nent to restore the optimal state of the device. The duration of the warranty is 12 months from the moment when the unit leaves the Battery Sup- plies warehouse (except if there are others agreement between Battery Supplies and the customer/ distributor).
