USER GUIDE
BAT/45684

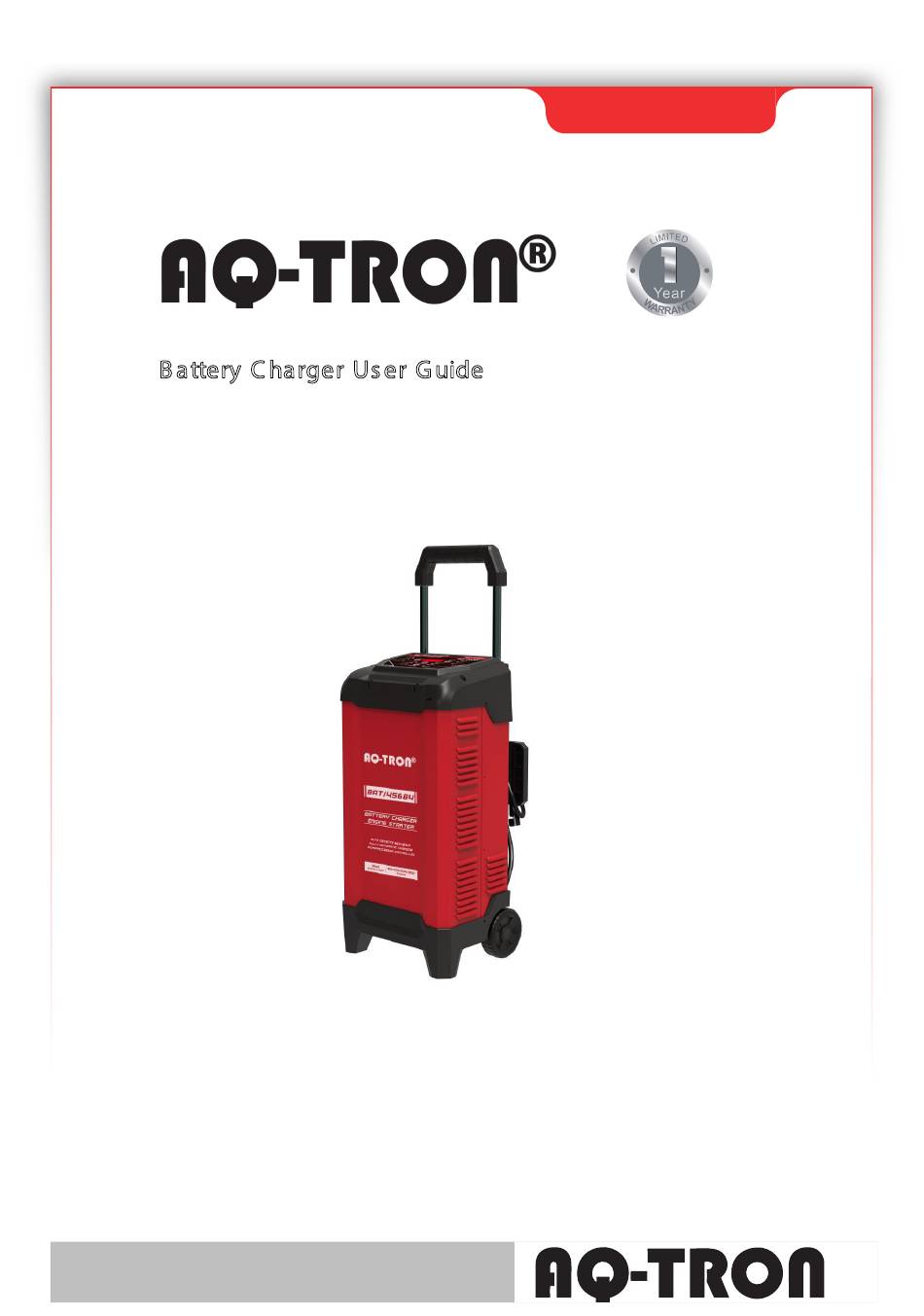

B attery C harger Us er G uide

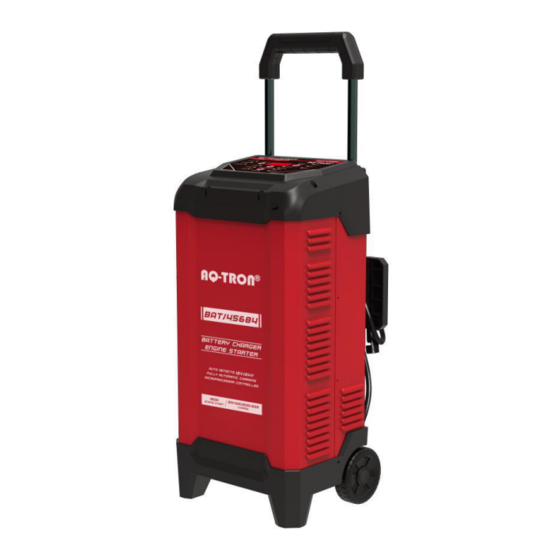

MODEL: BAT/45684
INPUT: 230VAC, 50-60Hz, Charge Pmax. 1400W,Start Pmax. 5500W
OUTPUT:
Charge: 12VDC 5A/10A/20A/30A or 24VDC 5A/10A/20A/30A
Engine Start:(12VDC/24VDC) 150A 5s ON; 240s OFF
Please read and understand all important safety and operating instructions before using this
charger. In addition, please read and follow all battery and vehicle manufacturer's
instructions and cautionary markings.
®
www.aqtron.com - info@aqtron.com
Advertisement
Table of Contents
Related Manuals for AQ-Tron BAT/45684
Summary of Contents for AQ-Tron BAT/45684
- Page 1 USER GUIDE BAT/45684 B attery C harger Us er G uide MODEL: BAT/45684 INPUT: 230VAC, 50-60Hz, Charge Pmax. 1400W,Start Pmax. 5500W OUTPUT: Charge: 12VDC 5A/10A/20A/30A or 24VDC 5A/10A/20A/30A Engine Start:(12VDC/24VDC) 150A 5s ON; 240s OFF Please read and understand all important safety and operating instructions before using this charger.
- Page 2 USER GUIDE BAT/45684 SA F E T Y SAFETY PRECAUTIONS FOR WORKING IN THE VICINITY OF A BATTERY 1) Batteries generate explosive gases during normal operation. Use in well-ventilated area. 2) Consider having someone close enough or within the range of your voice to come to your aid when you work near a battery.
- Page 3 USER GUIDE BAT/45684 3) Do NOT expose to rain or wet conditions. 4) Connect and disconnect DC output only after setting AC cord from electric outlet. 5) Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock or injury to persons.
- Page 4 USER GUIDE BAT/45684 AC Input 230VAC, 50-60Hz, Charge Pmax. 1400W, Start Pmax. 5500W Charge: 12VDC 5A/10A/20A/30A or 24VDC 5A/10A/20A/30A DC Output Engine Start: (12VDC/24VDC) 150A 5s ON; 240s OFF Charge Type 10 Steps, Full-automatic Charging Cycle Accessories Included Cable Clamps...
- Page 5 USER GUIDE BAT/45684 6) When disconnecting, disconnect in the reverse sequence, removing the negative first (or positive first for positive ground systems). 7) A marine (boat) battery must be removed and charged on shore. To charge it on board requires equipment specially designed for marine use.
- Page 6 USER GUIDE BAT/45684 Following is the detailed explanation for charging steps. STEP 1: ANALYSING 1 (Checks if battery has connected with the charger) STEP 2: DESULPHATION (Pulsing charging to remove sulphate) STEP 3: SOFT START (Charges with gradually increasing charging current)
- Page 7 USER GUIDE BAT/45684 WARNING: WARNING: Using the ENGINE START feature WITHOUT a battery installed in the vehicle will damage the vehicle’s electrical system. 1. Connect the charger to the battery following the instructions given in the CONNECTING TO THE BATTERY section.
- Page 8 USER GUIDE BAT/45684 REPAIR Press FUNCTION button until the REPAIR LED is lit to enter this mode (digital display shows REPAIR-ON).It is an advanced battery recovery mode for repairing old, idle, stratified or sulfated batteries. NOT all batteries can be recovered. For optimal results, take the battery through a full charge cycle, bringing the battery to full charge, before using this mode.
