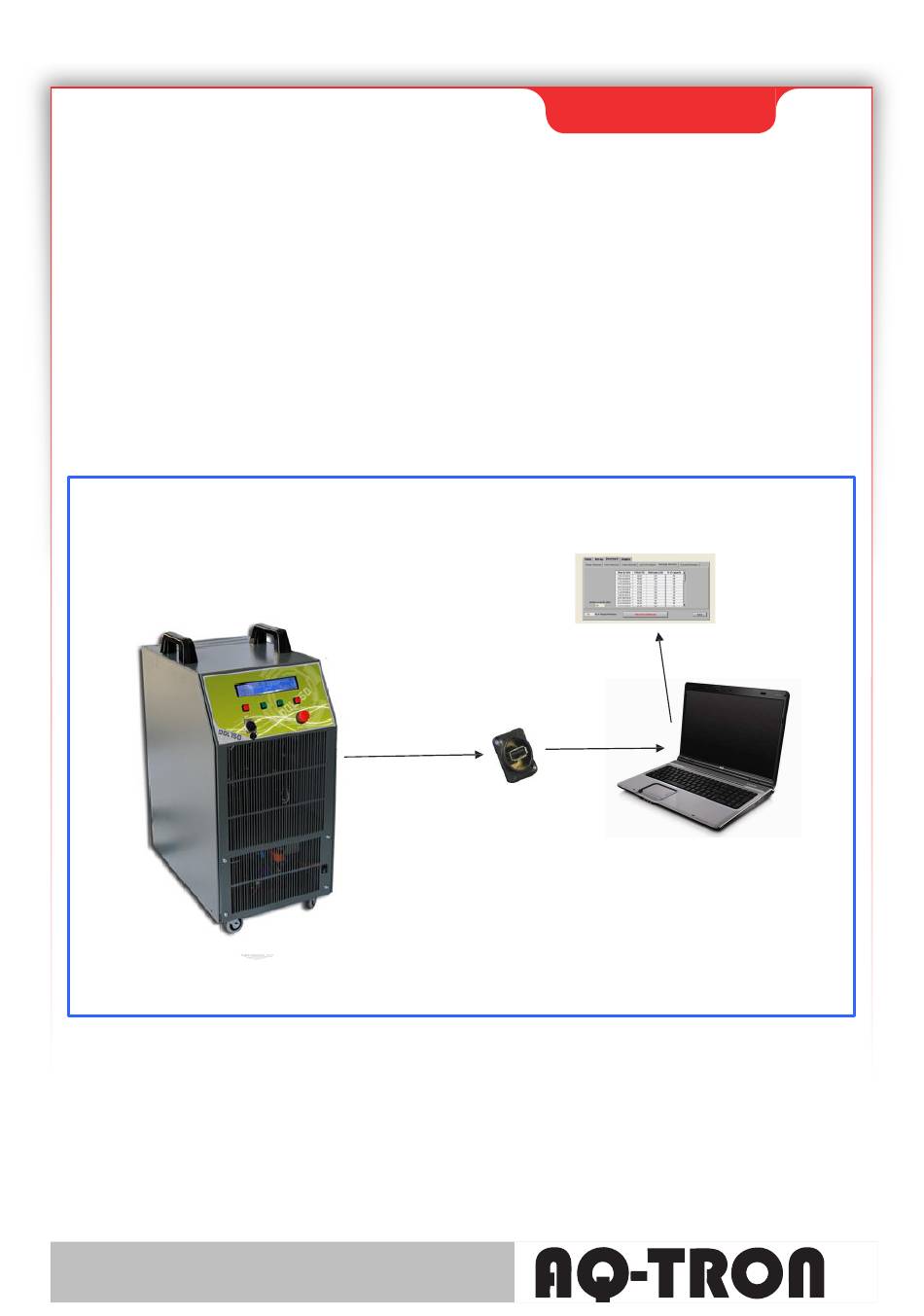

- Page 1 MANUAL BAT/48313 USER MANUAL DISCHARGER BAT/48313 USB PORT Before connecting the discharger to the AC Mains and to the battery, READ CAREFULLY THE FOLLOWING INSTRUCTIONS ® www.aqtron.com - info@aqtron.com...
-
Page 2: Table Of Contents
MANUAL BAT/48313 General Index 1. INTRODUCTION 1.2·TECHNICAL SPECIFICATIONS 2. SAFETY INSTRUCTIONS 2.1·CONNECTION PROCEDURES 3.BUTTONS AND DISPLAY 3.1·BUTTONS 3.2·DISPLAY 3.3·TIME SETTING AND VISUALIZATION 4.MENU 5.USB 5.1·SAMPLING FUNCTIONING 5.2·DATA DOWNLOADING 5.3·FILES AND DIRECTORIES MANAGEMENT IN THE USB KEY 6.END OF A DISCHARGING CYCLE ®... -
Page 3: Introduction

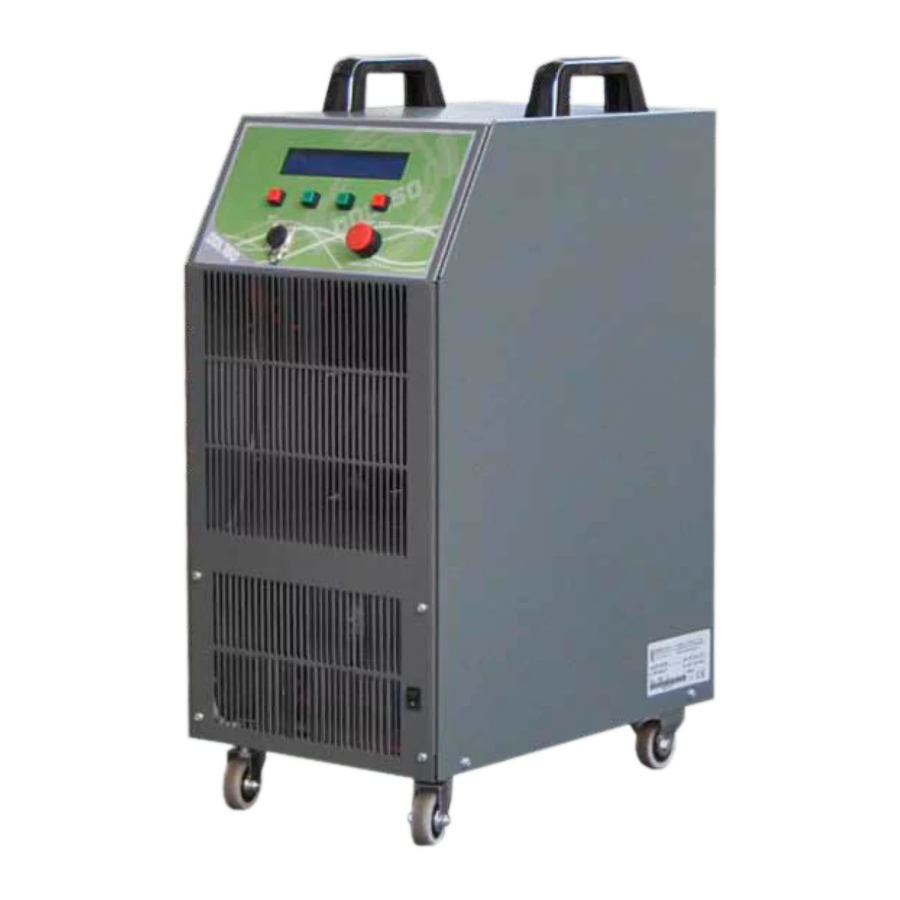

MANUAL BAT/48313 The Battery Discharger BAT/48313 is an innovative device designed to test the battery discharge working on nominal voltages from 2 up to 80V and on discharging currents up to 150A. Thanks to its ergonomics and robustness, it can be used in any working ambient and easily moved through its transport wheels. -
Page 4: Safety Instructions
• Only skilled and authorized personnel shall be allowed to open the BAT/48313 discharger or carry out any service on it. • Before starting the discharger BAT/48313 the insulation of power cord and charging cable has to be checked. • Disconnect from AC mains before connecting or disconnecting the battery or the discharger. -
Page 5: Connection Procedures
MANUAL BAT/48313 2.1 Connection Procedures 1. Connect the AC mains cable to an AC mains plug. 2. Connect the battery cable to the battery paying attention to the correct polarity (The battery cable is supplied without battery plug) 3. Turn on the main switch on the cabinet front side. -
Page 6: Display
MANUAL BAT/48313 3.2 Display Vbat Vstop Detected battery voltage Discharge final voltage SET / Ah Discharging current Discharging time 3.3 Time Setting and Visualization The discharging time can be set with a value between 0 and 99 hours and 50 minutes. -
Page 7: Menu
MANUAL BAT/48313 To have access to the discharging parameters setting, press the button “SET”. Once entered in the menu as the writing “SET” appears, the parameter “T” corresponds to the time set for the discharge. On the contrary as the writing “Ah=0000” appears the value visualized by the parameter “T”... -
Page 8: Usb
MANUAL BAT/48313 5.1 Sampling Functioning The discharger memorizes the carried out discharges using an internal not volatile memory that can save 85 discharges, each of them comprised of 1216 samples. The sampling time is calculated automatically according to the maximum time (T) the user set to carry out the discharge. -
Page 9: Files And Directories Management In The Usb Key
MANUAL BAT/48313 5.3 Files And Directories Management in the USB Key The discharger saves on the key one single file for each single discharge. The name of the file corresponds to an hexadecimal number (8 figures) that indicates in a compressed format date and hour of the beginning of the discharge following by the ".csv"... - Page 10 MANUAL BAT/48313 APPENDIX A – DISCHARGING CURRENT LIMITS Due to the connection cables and internal resistance, with battery voltages lower than 12V the maximum dischargeable current is limited according to the following table: Battery voltage Maximum current Maximum Notes setting...
