MANUAL

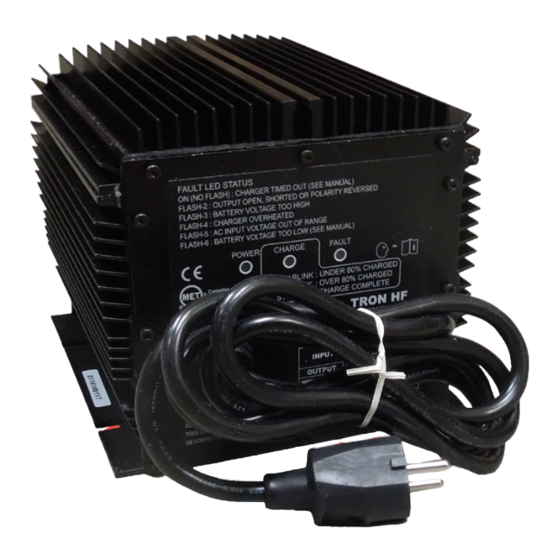

Automatic Switch-Mode Battery Charger
IMPORTANT
Read, understand, and follow these safety rules and operating instructions before
using this battery charger. Only authorized and trained service personnel shall be
permitted to operate or perform any maintenance or service. This manual should
be considered a permanent part of your machine and should remain with the
machine at all times. This manual is a supplement to the manuals and information
provided by AQ-TRON If you have any questions call 00-32-56-617977
AQ-TRON to provide phone number.
CONTENTS
Safety-------------------------------------------
Operation--------------------------------------
Maintenance----------------------------------
Troubleshooting----------------------------
Replacing the Charger--------------------- 11
Specifications--------------------------------
www.aqtron.com - info@aqtron.com
User's Manual
Supplement to AQ-TRON Manual(s)
Part Number AQHF36-20
- 1 -
AQHF36-20
Page
2
6
8
9
12
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the AQHF36-20 and is the answer not in the manual?

Questions and answers

Related Manuals for AQ-Tron AQHF36-20

Summary of Contents for AQ-Tron AQHF36-20

  • Page 1: Table Of Contents

    This manual is a supplement to the manuals and information provided by AQ-TRON If you have any questions call 00-32-56-617977 AQ-TRON to provide phone number.

  • Page 2: Safety

    MANUAL AQHF36-20 Safety Danger Failure to obey the safety rules and instructions in this manual will result in death or serious injury. Label and Safety Rules Legend DANGER Indicates the presence of a hazard that will cause death or WARNING Indicates the presence of a hazard that may cause death or serious injury.
  • Page 3 MANUAL AQHF36-20 Safety: Power • To reduce the risk of an electric shock, connect only to a properly grounded single-phase (3wire) outlet. • Ensure that the AC voltage supplied to the charger is within the ranges in the specification table. Voltages outside this range, particularly high voltages, can result in an electric shock and fire hazard.
  • Page 4 MANUAL AQHF36-20 Safety: General • Do not operate a charger that is not working correctly. An electric shock hazard or battery explosion hazard from overcharging may exist. • Do not attempt to service the charger yourself unless you are a trained service technician.
  • Page 5 MANUAL AQHF36-20 with battery terminals or other exposed electrical parts may cause an electric shock. Remove all watches, rings, and jewelry to avoid arcing and electric shock. Initial Installation Only trained technicians with knowledge of the equipment and batteries the charger will be used with should install the charger.

  • Page 6: Operation

    MANUAL AQHF36-20 Operation WARNING: There could be a spark during charging. Be careful when using fuels, solvents or other flammables near the charger or batteries. An explosion may result causing serious injury or death. WARNING: To reduce the risk of an electric shock, connect only to a properly grounded single phase (3wire) outlet.
  • Page 7 MANUAL AQHF36-20 6) If the DC connection to the battery is unplugged and plugged back in the charging cycle will be restarted. 7) If the charger is left plugged into AC and the DC is unplugged after charging is completed, the FAULT LED will two flash once every 4 seconds with no buzzer sounding.

  • Page 8: Maintenance

    MANUAL AQHF36-20 Maintenance WARNING: Disconnect from AC voltage before doing any service. When plugged-in the AC wiring is an electric shock hazard. Disconnecting the DC output wires near the batteries when the charger is ON may cause the batteries to explode resulting in serious injury or death.

  • Page 9: Troubleshooting

    MANUAL AQHF36-20 Troubleshooting WARNING: Do not operate the charger if it is malfunctioning. Personal injury or property damage could result. Electric shock hazard may cause serious injury or death. WARNING: Do not disassemble the charger. High voltages inside the charger are an electric shock hazard and may result in serious injury or death.
  • Page 10 MANUAL AQHF36-20 capacity. Replace charger only if other problems are not found. If the charger LEDs are showing charging progress and charger case gets warm after several hours the charger is probably good and the batteries bad. If the green LED is “off” and the red LED is steady “on” after a long charge time, the batteries have not fully charged after 20 hours of charging time.

  • Page 11: Replacing The Charger

    MANUAL AQHF36-20 Five flash AC Voltage too high or too low. Check AC voltage and connect charger to correct voltage. See the electrical specification table for the allowable AC voltage input ranges. This is an unusual problem and would most likely occur with a very poorly regulated...

  • Page 12: Specifications

    MANUAL AQHF36-20 AC Ground – green with yellow stripe AC Neutral – light blue AC Line (Hot) – brown DC Battery Negative (-) - black DC Battery Positive (+) – white Interlock wires – Small white and black wires from center back of charger Make sure all connections are clean and tight to provide a good electrical connection.
