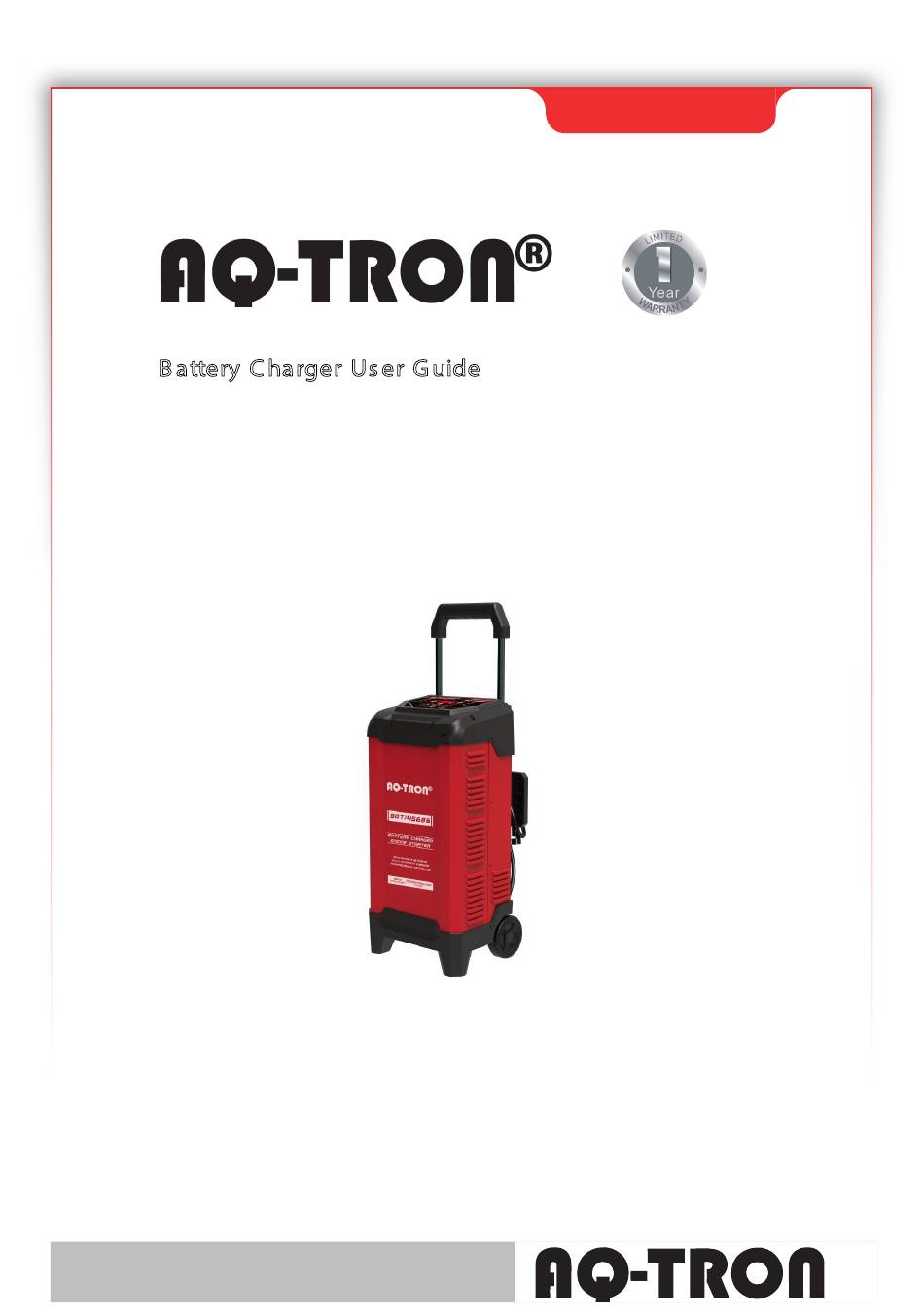

USER GUIDE
BAT/45686
B attery C harger Us er G uide

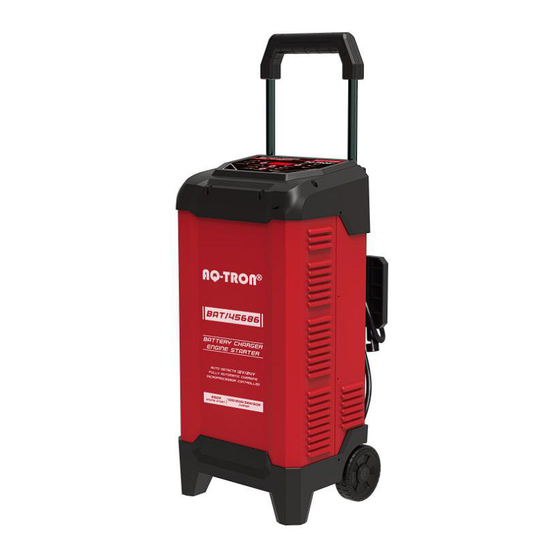

MODEL: BAT/45686
INPUT: AC 230V 50/60Hz, 5.0kW Max
OUTPUT:
Charge: DC 12V, 10A/20A/35A/50A or DC 24V, 10A/20A/35A/50A
Engine Start: DC 12V, 250A INTERMITTENT 5 SECONDS ON, 240
SECONDS OFF or DC 24V, 250A INTERMITTENT 5 SECONDS ON,
240 SECONDS OFF.
Please read and understand all important safety and operating instructions before using this
charger. In addition, please read and follow all battery and vehicle manufacturer's
instructions and cautionary markings.
®
www.aqtron.com - info@aqtron.com
Advertisement
Table of Contents
Related Manuals for AQ-Tron BAT/45686
Summary of Contents for AQ-Tron BAT/45686
- Page 1 USER GUIDE BAT/45686 B attery C harger Us er G uide MODEL: BAT/45686 INPUT: AC 230V 50/60Hz, 5.0kW Max OUTPUT: Charge: DC 12V, 10A/20A/35A/50A or DC 24V, 10A/20A/35A/50A Engine Start: DC 12V, 250A INTERMITTENT 5 SECONDS ON, 240 SECONDS OFF or DC 24V, 250A INTERMITTENT 5 SECONDS ON, 240 SECONDS OFF.
- Page 2 USER GUIDE BAT/45686 SA F E T Y SAFETY PRECAUTIONS FOR WORKING IN THE VICINITY OF A BATTERY 1) Batteries generate explosive gases during normal operation. Use in well-ventilated area. 2) Consider having someone close enough or within the range of your voice to come to your aid when you work near a battery.
- Page 3 USER GUIDE BAT/45686 2) Do NOT cover the charger while charging. 3) Do NOT expose to rain or wet conditions. 4) Connect and disconnect DC output only after setting AC cord from electric outlet. 5) Use of an attachment not recommended or sold by the manufacturer may result in a risk of fire, electric shock or injury to persons.
- Page 4 USER GUIDE BAT/45686 AC Input AC 230V 50/60Hz, 5.0kW Max Charge: DC 12V, 10A/20A/35A/50A or DC 24V, 10A/20A/35A/50A Engine Start: DC 12V, 250A INTERMITTENT 5 SECONDS ON, DC Output 240 SECONDS OFF or DC 24V, 250A INTERMITTENT 5 SECONDS ON, 240 SECONDS OFF.
- Page 5 USER GUIDE BAT/45686 5) For a positive grounded vehicle (very uncommon): connect the BLACK NEGATIVE clamp first to the negative battery terminal, then connect the RED POSITIVE clamp to the positive battery terminal or vehicle chassis. 6) When disconnecting, disconnect in the reverse sequence, removing the negative first (or positive first for positive ground systems).
- Page 6 USER GUIDE BAT/45686 Following is the detailed explanation for charging steps. STEP 1: ANALYSING 1 (Checks if battery has connected with the charger) STEP 2: DESULPHATION (Pulsing charging to remove sulphate) STEP 3: SOFT START (Charges with gradually increasing charging current)
- Page 7 USER GUIDE BAT/45686 WARNING: Using the ENGINE START feature WITHOUT a battery installed in the vehicle will damage the vehicle’s electrical system. 1. Connect the charger to the battery following the instructions given in the CONNECTING TO THE BATTERY section.
- Page 8 USER GUIDE BAT/45686 REPAIR Press FUNCTION button until the REPAIR LED is lit to enter this mode (digital display shows REPAIR-ON). It is an advanced battery recovery mode for repairing old, idle, stratified or sulfated batteries. NOT all batteries can be recovered. For optimal results, take the battery through a full charge cycle, bringing the battery to full charge, before using this mode.
