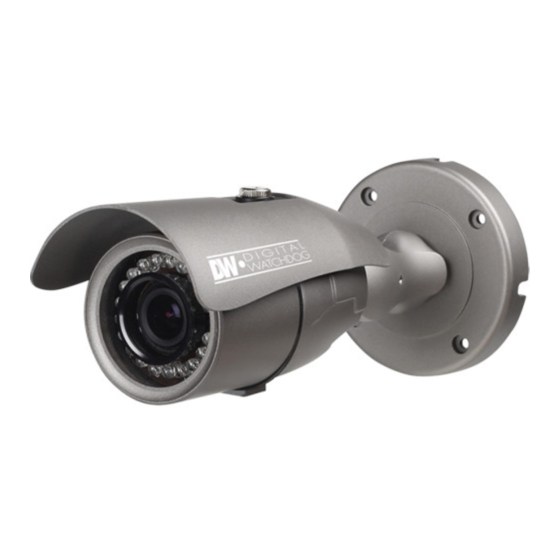

Digital Watchdog Star-Light 960H DWC-B6563DIR Manual

Bullet camera

Hide thumbs

page of 32

/ 32
Bookmarks

Quick Links

Download this manual

Bullet Camera

DWC-B6563DIR

DWC-B6563TIR550

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

12162013

Available from A1 Security Cameras

www.a1securitycameras.com email: sales@a1securitycameras.com

Need help?

Do you have a question about the Star-Light 960H DWC-B6563DIR and is the answer not in the manual?

Questions and answers

Summary of Contents for Digital Watchdog Star-Light 960H DWC-B6563DIR

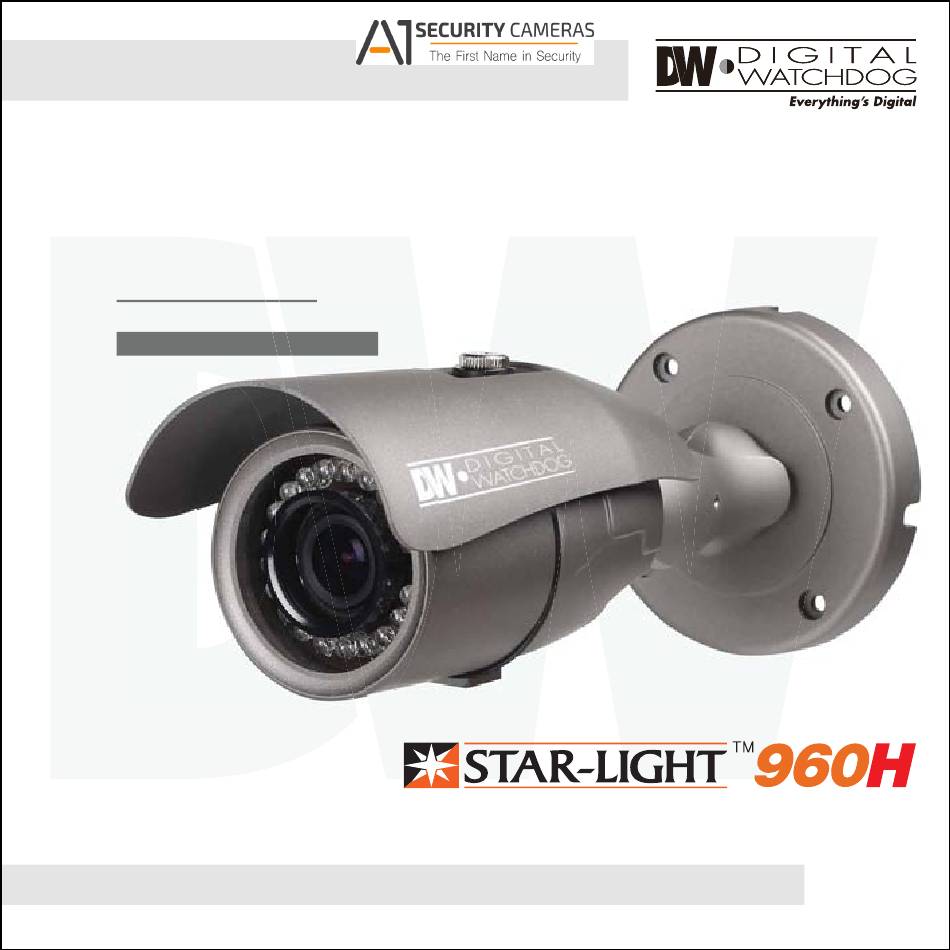

Page 1 Bullet Camera DWC-B6563DIR DWC-B6563DIR DWC-B6563DIR DWC-B6563DIR DWC-B6563TIR550 DWC-B6563TIR550 DWC-B6563TIR550 DWC-B6563TIR550 ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference. 12162013 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 2 PRECAUTIONS Do not open or modify. Do not open the case except during maintenence and installation, for it may be dangerous and can cause damages. Do not put objects into the unit. Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or other damages.
Page 3 TABLE OF CONTENTS Introduction Features Parts and Descriptions Dimensions Installation Inside the Box Mount Installation Instructions Connecting to Monitors Control Board Adjusting the Camera Angle Module OSD Menu 13-24 Troubleshooting Warranty Information 26-27 Specifications 28-29 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 4 FEATURES* 960H CCD Image Sensor (960 Horizontal Pixels) 720 TV Lines [B/W], 700 TV Lines [Color] 2.8~12mm Varifocal Auto Iris Lens [DWC-B6563DIR] 5~50mm Long Range Varifocal Auto Iris Lens [DWC-B6563TIR550] 100ft Range IR with Intelligent Camera Sync, Smart IR [DWC-B6563DIR] 150ft Range IR with Intelligent Camera Sync, Smart IR [DWC-B6563TIR550] Electronic Day &...
Page 5 PARTS & DESCRIPTION* IR Module Mounting Bracket Front Case Camera Module OSD Joystick Controller Sunshield Adjusting Screws Sunshiled Cover Set Screw Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 6 DIMENSIONS IN MILLIMETERS (IN)* DWC-B6563DIR 234.5 9.23 112.0 4.41 94.0 3.70 4.2 0.17 78.0 3.07 61.5 2.42 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 7 DIMENSIONS IN MILLIMETERS (IN)* DWC-B6563TIR550 252 9.92 158.5 6.24 93.5 3.68 4.2 0.17 78.0 3.07 Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 8 INSIDE THE BOX* Included with Bullet Camera: User Manual Secondary Video-BNC Cable Mounting Template L-Key 4 Machine Screws and 4 Dry Wall Anchors Bullet Camera DWC-B6563DIR DWC-B6563DIR DWC-B6563DIR DWC-B6563DIR ABOUT MANUAL Before installing and using the camera, please read this manual carefully. Be sure to keep it handy for future reference.
Page 9 INSTALLATION INSTRUCTIONS* 1. Using the mounting template or your own camera, mark and drill the necessary holes to mount the bracket to a wall or ceiling. 2. Pull all necessary wires through and make the proper connections. 3. Use the four (4) mounting screws to install the camera on the wall or ceiling.
Page 10 CONNECTING TO MONITORS* Use the diagram below to connect to a Monitor or CRT Monitor properly. 12VDC/24VAC CCTV Monitor Left Right Down Second Video Output Monitor Power Connection - 12VDC/24VAC Dual Voltage (Auto Polarity Detection and Protection) All cameras are equipped with a second video output for on-site configuration. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 11 CONTROL BOARD* Secondary Connector: Video Output Connector for On-Site Configuration Joystick: Controls the OSD menu. Remove the camera’s lens cover by rotating it counter-clockwise. Use the Joystick to control the camera’s OSD options. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 12 ADJUSTING THE CAMERA ANGLE* CAUTION : Do not rotate more than 360 Do not unnecessarily twist too many times. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 13 MODULE OSD MENU* EXPOSURE COLOR DAY & NIGHT FUNCTION LENS WB BAL. D&N MODE MIRROR MANUAL / DC ATW / MANUAL / PUSHLOCK AUTO / COLOR / B&W OFF / ON BACKLIGHT CONTROL SHARPNESS COLOR GAIN OFF / BLC / HME AUTO / EXTERN 0 ~ 20 0~20...
Page 14 EXPOSURE LENS Manual mode supports the fixed board lens or the Manual manual iris lens. DC mode supports the auto-iris varifocal lens. NOTE: Both MANUAL and DC mode have FOCUS SET. You can adjust the focus by finding the highest number on the FOCUS SET.
Page 15 EXPOSURE BACKLIGHT BACK LIGHT COMPENSATION If BLC is selected, adjust the following options in the submenu: - LEVEL: Set the BLC level from the available options: LOW/ MIDDLE/ HIGH) - DISPLAY: Selet to show or hide the BLC mask. - POSITION: Set the BLC masks’ size and position. TOP: Set level from 0~54.
Page 16 EXPOSURE DYNAMIC RANGE COMPRESSOR DRC enables dark spots in images to become more visible without overexposing the bright spots to create one perfect image. - DEFOG: AUTO / Manual: If AUTO is selected, the WDR and DRC levels will be set automatically based on the environment.
Page 17 COLOR WB MODE Auto Tracking White Balance Control mode compensates for color temperature changes ATW between 2500K and 9500K. Pushlock is to fix the white balance based on the lighting. PUSHLOCK Users can control the white balance manually by changing RED GAIN and BLUE MANUAL GAIN (see below).
Page 18 DAY & NIGHT D&N MODE AUTO / In AUTO mode, the camera switches between day and night automatically depending COLOR / on light level. If COLOR is selected, the camera always stays in day/color mode. B&W If B&W is selected, camera always stays in night/B&W mode. If AUTO is selected, please define the following settings: CONTROL: AUTO/EXT.
Page 19 FUNCTION MIRROR OFF Reflects the camera horizontally. MIRROR Mirror OFF Mirror ON SHARPNESS Sets the image sharpness. The higher the number, the sharper the image. 0 ~ 30 GAMMA Select the desired gamma level. 0.45 is default setting. 0.35 ~ 0.7 POSI / NEGATIVE If NEGATIVE is enabled, the camera’s image OFF / ON...
Page 20 MOTION The camera can detect the movement and display an alarm on the screen when movement is detected. MOTION Select to enable or disable the camera’s motion detection. If ON is selected: OFF / ON SENSITIV. Sensitivity level of the motion detection is adjustable. Motion Detection will be more 0 ~ 30 sensitive at a higher number.
Page 21 PRIVACY You can hide some parts of the screen for privacy masking. A total of 8 different privacy masking zones are available. MASK COLOR Privacy zones can be set with eight different colors-Gray-1, Gray-2, Gray-3, Gray-4, White, Yellow, Green, Blue, Red, Cyan, and Magenta.
Page 22 SETUP TITLE If ON is selected, you can display the camera title on the screen. If enabled, OFF / ON manually enter the camera’s display name using the joystick controller. INTERNAL SYNC. Select whether the camera syncronizes internally or using Line Lock. INT/ COMMUNICATION The Communications settings allow you to setup the camera’s ID, Baudrate, Protocol,...
Page 23 SETUP LANGUAGE The camera supports the following languages: ENGLISH. FONT COLOR The following colors are available for the OSD menu: BLUE, GREEN, CYAN, RED, MAGENTA, YELLOW, BLACK, and GRAY. SPECIAL OLPF: Select the filter that you use from BLUE/RED and PASS, then reboot the camera to use.
Page 24 EXIT EXIT SAVE Exit the OSD menu after saving the recent changes. RESTORE Exit the OSD menu without saving recent changes. INITIAL Exit the OSD menu after resetting the camera to factory default. Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 25 TROUBLESHOOTING Before sending your camera for repair, check the following or contact our technical specialist. FOR NO VIDEO Check the coaxial cable and make sure it is connected securely. Check the lens’ iris adjustment at the camera’s OSD menu. Check the power supply and make sure the camera has the proper voltage and current.
Page 26 WARRANTY INFORMATION* Digital Watchdog (referred to as “the Warrantor”) warrants the Digital Watchdog Camera against defects in materials or workmanship as follows: LABOR: For the initial five (5) years and one (1) year on IR LED from the original purchase date, if the camera is determined to be defective, the Warrantor will repair or replace the unit with a new or refurbished product at its option at no charge.
Page 27 This warranty gives you specific legal rights, and you may also have other rights that vary from state-to-state. If the problem is not handled to your satisfaction, then write to the following address: Digital Watchdog, Inc. ATTN: RMA Department 5436 W. Crenshaw Street...
Page 28 SPECIFICATIONS* VIDEO Image Sensor 960H CCD Total Pixels 960 (H) x 478 (V) Scanning System 2 : 1 Interlace Frequency 15.734KHz (H), 59.95Hz (V) Synchronization Internal or Line Lock Horizontal Resolution 720 TV Lines [B/W], 700 TV Lines [Color] Minimum Illumination F1.2 (30IRE): 0.0 Lux S/N Ratio 52dB (AGC off)
Page 29 OPERATIONAL Day and Night Auto / Day / Night Mirror OFF / V. Flip / Rotate Auto Gain Control 1 ~ 20 Gamma 0.35 ~ 0.7 Motion Detection 4 Motion Regions Privacy Zones 8 Programmable Privacy Masks Dynamic Range Compressor OFF / Low / Middle / High Sharpness 0 ~ 20...
Page 30 MEMO* Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 31 MEMO* Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
Page 32 5436 W Crenshaw St. Tampa, FL 33634 Tel : 866-446-3595 / 813-888-9555 Fax : 813-888-9262 www.Digital-Watchdog.com technicalsupport@dwcc.tv Technical Support Hours : Monday-Friday 9:00am to 8:00pm EST Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
