Summary of Contents for Jumpking 8ft x 11.5ft Oval Combo

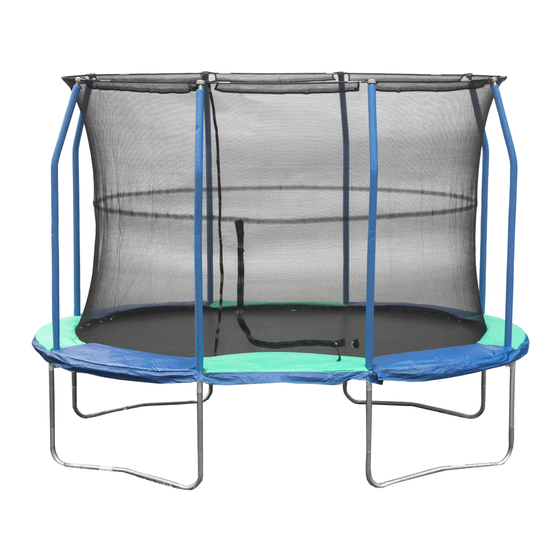

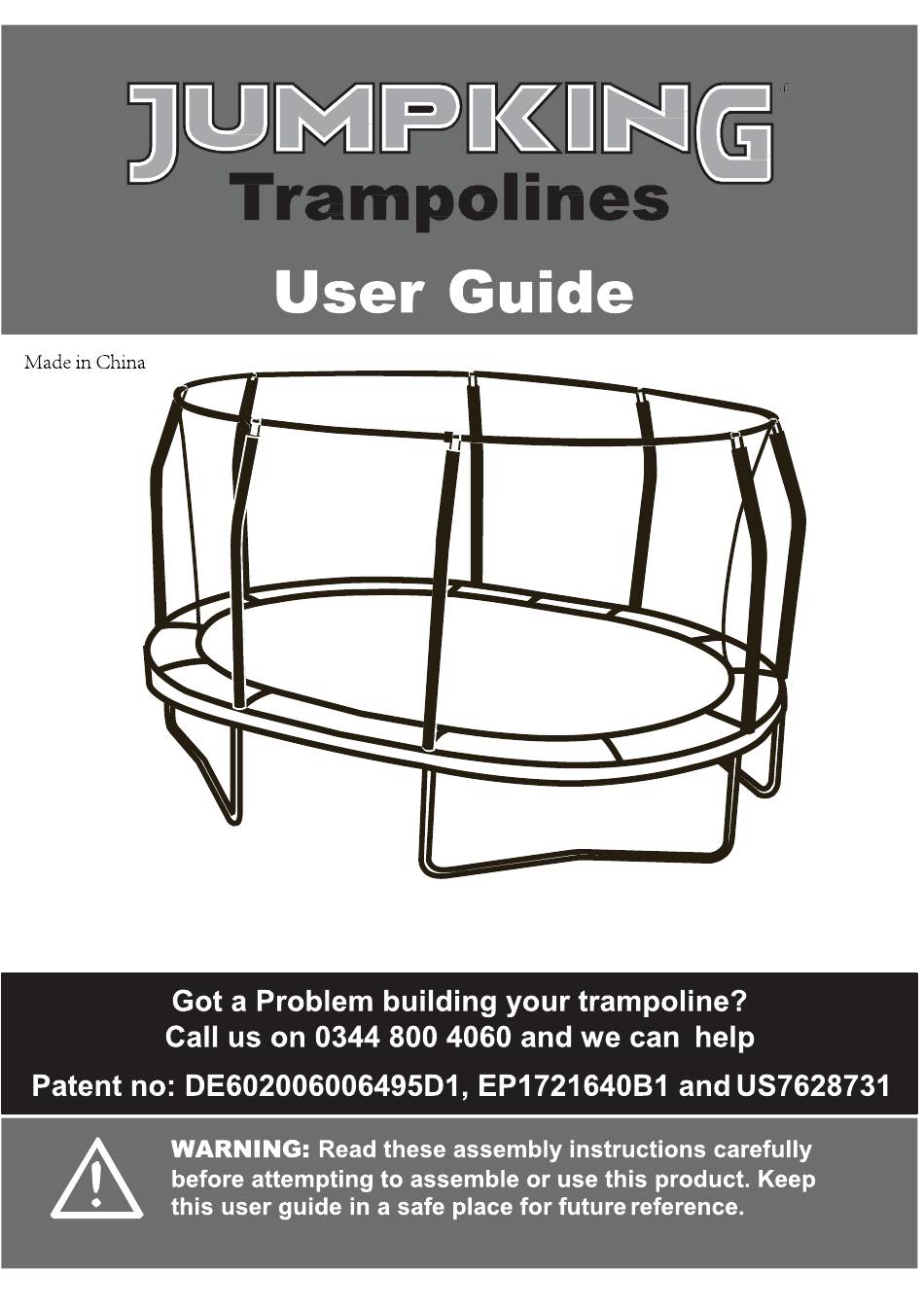

- Page 1 8ft x 11.5ft Oval Combo...
- Page 2 8ft x 11.5ft Oval Trampoline: 80cm (0.8m) 265cm (2.65m)
- Page 6 sections T-connector With Welded tube 2 pcs A, 2 pcs B 2 pcs C, 2 pcs D...
- Page 7 8 x T-connector with welded tube Combo Lay out Top Tube A and Top Tube B away from you with the spring holes facing the ground. Connect the A and B T-Connector with welded tube matching the letters to each Top Tube. Ensure the welded tube is on the inside of the frame.
- Page 9 This step will require 2 people who must be wearing gloves and protective eye wear. Lay the stitched bed (with the V-rings) Part J out inside the frame of the trampoline with the warning labels facing upwards. Coloured webbing Locate the V-rings with coloured webbing. These will be at 180 to each other.
- Page 10 This diagram shows the initial order of spring attachment. = Top spring hole Important: Attach the springs in the order shown in the diagram. This will help to distribute the tension, making assembly easier. Firstly, locate the 2 coloured V-rings and attach at points 1 and 2 using a silver spring.
- Page 11 Tie the outer elastic straps on the underside of the frame pad around the top tubes of the frame. The frame pad is now fitted and you have completed step 4. Warning: The trampoline MUST NOT be used during construction.
- Page 18 8ft x 11.5ft (2.44m x 1.36m)
- Page 19 8FT x 11.5FT OVAL COMBO...
