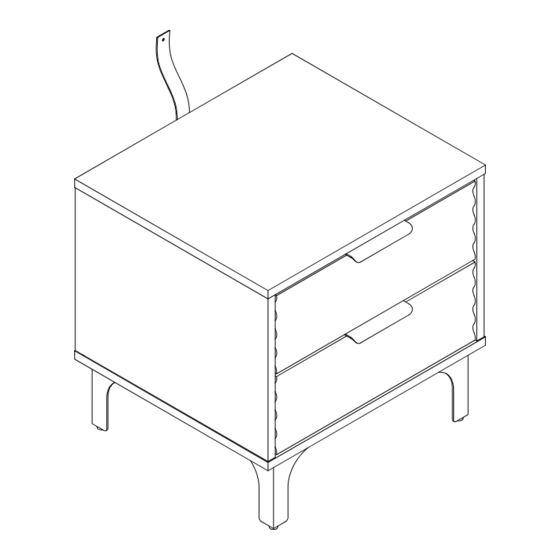

- Page 1 Version 1.0 Av alon Bedside 2 Drawer Whitewash fantasticfurniture.com.au...
- Page 2 Secure it! Reduce the risk of furniture tip-over accidents WARNING: ENSURE THE WALL STRAP IS ATTACHED TO AVOID SERIOUS INJURY OR DEATH. To avoid any serious or fatal injury, a wall strap has been provided with this product to prevent toppling. We strongly recommend that this product is permanently fixed to the wall or other suitable surface.
- Page 3 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture Page 3 fantasticfurniture.com.au...
- Page 4 Assembly checklist Read through the instructions Make sure you have all the required tools. Never use power tools unless instructed. carefully before you begin. Unless instructed, do not fully tighten Identify and lay out all of the components before you begin assembly. screw s until the item is fully assembled.
- Page 5 What You Need to assemble the product Other tools you need Phillips Head screwdriver;Hammer Box 1: Top Panel (P1); 4 x Feet (P2); Left Side Panel (P3); Right Side Panel (P4); Base Panel (P5); Back Panel (P6); 2 x Drawer Front Panels (P7); 2 x Drawer Back Panels (P8);...
- Page 6 Step 1 (H13) You will need (H13) (H11) 2 x CL Runner 2 x CR Runner Tracks (H9) Tracks (H11) (H11) 12 x Runner Phillips Head Screws (H13) Screwdriver (H9) (H9) Attached 2 x CL Runner Tracks (H9) to the Left Side Panel (P3) with 6 x Runner Screws (H13), by tightening with a Phillips Head Screwdriver.
- Page 7 Step 3 You will need (H6) (H6) 4 x Cam Bolts Phillips Head (H6) Screwdriver (H6) (H6) (H6) Insert 4 x Cam Bolts (H6) into the Top Panel (P1), by tightening with a Phillips Head Screwdriver. Step 4 You will need 4 x Cam Nuts Phillips Head (H5)
- Page 8 Step 5 Raw side facing inside Slide Back Panel (P6) into the grooves of Left & Right Side Panel (P3 & P4) and Top Panel (P1). Step 6 (H16) You will need (H16) (H16) 4 x Screws Phillips Head (H16) Screwdriver (H16) Attach Base Panel (P5) to Left &...
- Page 9 Step 7 (H8) ( H17) You will need (H8) (H8) x Screws 1 x Allen Key (H8) ( H17) (H8) ( H17) (H8) (H8) Attach 4 x Feet (P2) to Bottom Panel (P5) with 8 x Screws (H8) by tightening with an Allen Key (H17) .
- Page 10 Step 9 (H6) You will need (H7) (H6) 4 x Cam Bolts 4 x Dowels (H6) (H7) (H6) P7 x 2 Phillips Head Screwdriver (H7) Insert 4 x Dowels (H7) into the Drawer Front Panels (P7). Insert 4 x Cam Bolts (H6) into the Drawer Front Panels (P7), by tightening with Phillips Head Screwdriver.
- Page 11 Step 11 Raw side facing bottom P7 x 2 Slot in the 2 x Drawer Base Panels (P11) into the grooves of panels (P9, P10 & P7) as shown. Step 12 (H14) You will need P8 x 2 8 x Drawer Phillips Head (H14) Screws...
- Page 12 Step 13 (H13) You will need (H13) (H10) (H13) 2 x DR Runners 2 x DL Runners (H13) (H10) (H12) (H13) (H12) (H13) 12 x Runner Phillips Head Screws (H13) Screwdriver (H13) Attached 1 x DL Runner (H12) to the bottom of the Drawer Side Panel L (P9) and 1 x DR Runner (H10) to the bottom of Drawer Side Panel R (P10) with 6 x Runner Screws (H13) by tightening with the Phillips Head Screwdriver.
- Page 13 Step 15 Insert the assembled drawers into the corresponding compartments as shown. Ensure the drawers slide easily along the rails. Step 16 You will need 1 x Washer ( H15) Screw and Wall Plug are not provided. Please use appropriate fixtures for your wall.
