Legs and hardware are stored in the bo om of the sofa,
!
please take out for assembly.
NOTE: Do not use power tools for assembly. Power tools increase
the risk of over ghtening which lead to spli ng or cracking
the wood.
NO.
A
B
C
D
E
F
ASSEMBLY INSTRUCTION
ITEM NO.:9560GY/BU/BR/CH/TP-3CL

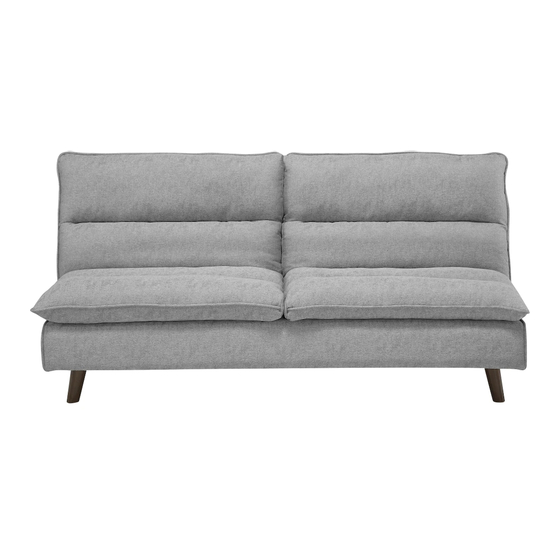

Elegant Lounger
DRAWING
1 OF 4
QTY
DESCRIPTION
SOFA
1
WOODEN LEG
4
6"*2-3/8"*2-3/8"
BOLT
8
5/16"*1-1/8"
FLAT WASHER
8
5/16"*3/4"
ALLEN KEY
1
5/16"
WOODEN SUPPORT
1
LEG 5.5"*1"*1"
Advertisement
Table of Contents
Related Manuals for Homelegance 9560GY-3CL
Summary of Contents for Homelegance 9560GY-3CL
- Page 1 ASSEMBLY INSTRUCTION ITEM NO.:9560GY/BU/BR/CH/TP-3CL Elegant Lounger Legs and hardware are stored in the bo om of the sofa, please take out for assembly. NOTE: Do not use power tools for assembly. Power tools increase the risk of over ghtening which lead to spli ng or cracking the wood.
- Page 2 STEP 1: Legs and hardware are stored in the bo om of the sofa, please take out for assembly. STEP 2: Align and a ach legs to pre-drilled holes, insert bolts and washer and ghten with Allen key. 2 OF 4...
- Page 3 STEP 3: Use as sofa fold the back rest to upright positon. Use as bed push to the front then unfold to flat the back rest. STEP 4: Click clack sofa assembly is completed. 3 OF 4...
- Page 4 Care instruc on for 100% polyester. In order to maintain the original appearance of your furniture, please follow below simple care procedures: Avoid exposing furniture directly to sunlight or hea ng and air condi oning outlets. Sunlight and or exposure to hea ng and air condi oning outlets will fade/damage fabric.
