NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking
the wood.
COMPONENT LIST (CHAIR)
NO.
A
B
HARDWARE LIST
NO.
1
2
Assembly Instruction

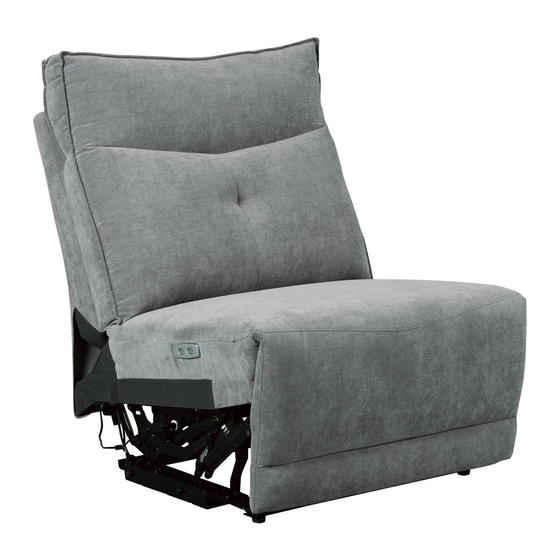

ARMLESS POWER RECLINING CHAIR
W/POWER HEADREST
ITEM NO.: 9509MGY/DG-ARWH
DRAWING
DRAWING
QTY
DESCRIPTION
BACK REST
1 PC
1 PC
SEAT WITH POWER
HEADREST WIRE
QTY
DESCRIPTION
1 PC
ADAPTOR
PLUG WITH
1 PC
WIRE
QP-AI-P022-138-1
1/3
Advertisement
Table of Contents
Related Manuals for Homelegance 9509MGY/DG-ARWH
Summary of Contents for Homelegance 9509MGY/DG-ARWH
- Page 1 QP-AI-P022-138-1 Assembly Instruction ARMLESS POWER RECLINING CHAIR W/POWER HEADREST ITEM NO.: 9509MGY/DG-ARWH NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking the wood. COMPONENT LIST (CHAIR) DRAWING...
- Page 2 STEP#1 QP-AI-P022-138-1 Align the female brackets at the back rest onto the male brackets at the seat, insert back rest to the seat then push to the end and make sure it is fixed in position securely. Connecting the wire from back rest to seat for power headrest. Back Rest Installation STEP#2...
- Page 3 QP-AI-P022-138-1 STEP#5 Press (Close / Open) Headrest USB Port 5V/1A USB Port 5V/1A Chair Press (Close / Open) Control Switch CARE INSTRUCTION FOR POLYESTER: In order to maintain the original appearance of your polyester furniture, please follow below simple care procedure : Avoid exposing furniture directly to sunlight or heating and air conditioning outlets.
