Homelegance 9519CH-2 Assembly Instruction

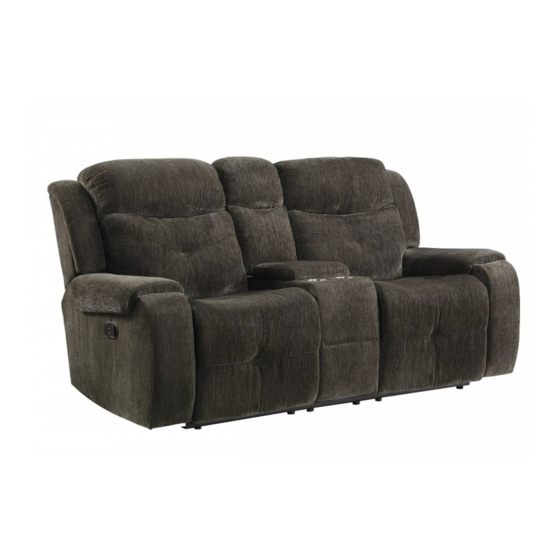

Double reclining love seat with console

DOUBLE RECLINING LOVE SEAT WITH CONSOLE,

NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to

splitting or cracking the wood.

PART LIST ( LOVE SEAT WITH CONSOLE )

NO.

Assembly Instruction

CHOCOLATE 100% POLYESTER

LIGHT GRAY 100% POLYESTER

ITEM NO : 9519CH-2

DRAWING

9519GY-2

QTY

1 PC

DESCRIPTION

SEAT

LSF BACK REST

CONSOLE BACK REST

RSF BACK REST

LEFT EAR

RIGHT EAR

1 OF 2

Table of Contents

Do you have a question about the 9519CH-2 and is the answer not in the manual?

Page 1 CHOCOLATE 100% POLYESTER DOUBLE RECLINING LOVE SEAT WITH CONSOLE, LIGHT GRAY 100% POLYESTER ITEM NO : 9519CH-2 9519GY-2 NOTE: Do not use power tools for assembly. Power tools increase the risk of over tightening which leads to splitting or cracking the wood.
Page 2 STEP#1 Align the female brackets at the back rest onto the male brackets at the seat, insert back rest to the seat then push to the end and make sure it is fixed in position securely. LSF & RSF Back Rest Installation STEP#2 Attach the left ear and right ear to back rest...
