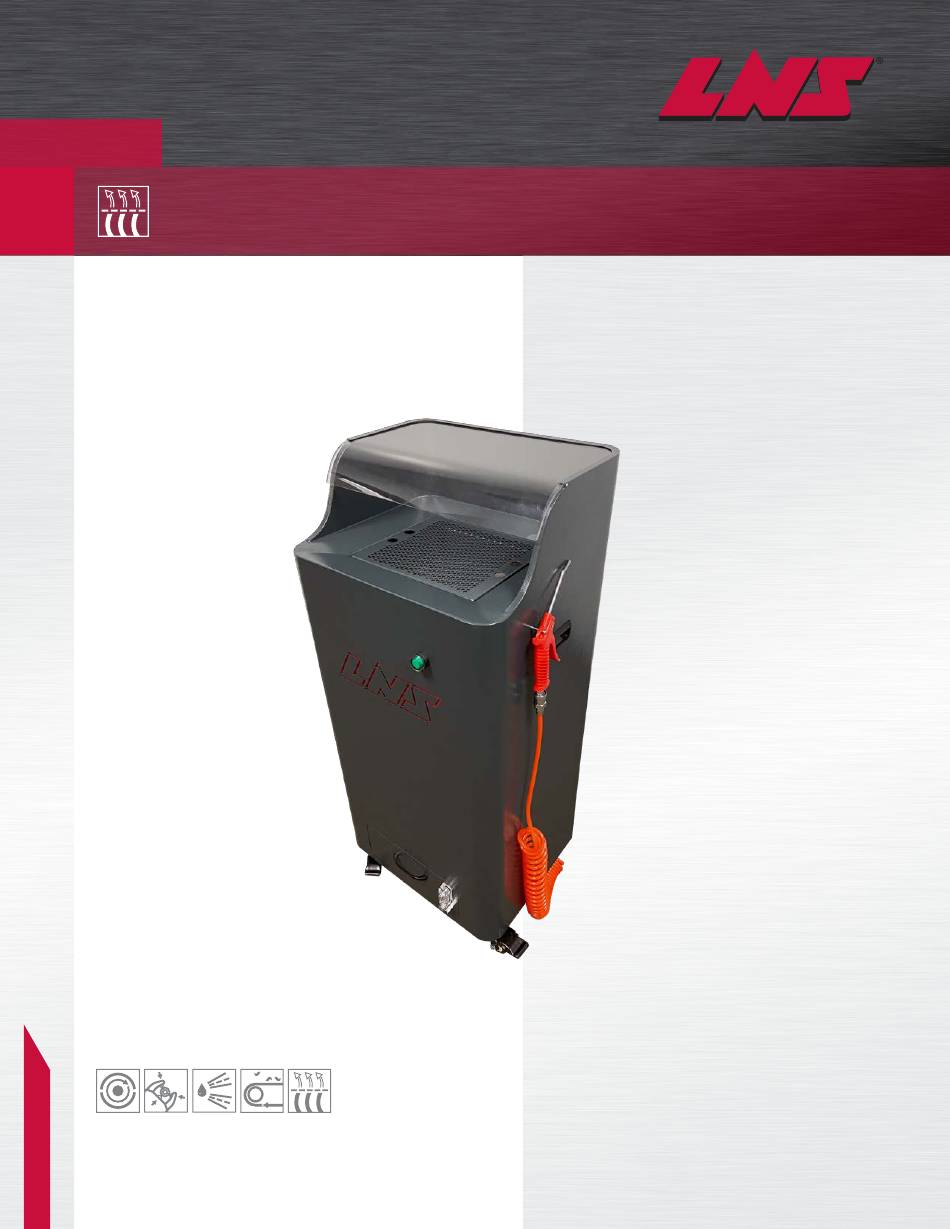

- Page 1 FOX SC2 330 SPRAY CABIN OPERATING INSTRUCTIONS PERIPHERAL VISION For CNC machine tool peripherals, it’s LNS , then all the rest...
- Page 2 IMPORTANT READ CAREFULLY BEFORE USE AND KEEP FOR FUTURE REFERENCE. Published: 09/2020 © LNS Sàrl 2020 – 9.620.006.1.EN (V00.0) – Original instructions – Printed in Switzerland OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 3: Table Of Contents
REPLACING THE FILTER CARTRIDGE ................22 DISPOSAL ..........................25 REPAIRS ..........................26 AFTER-SALES SERVICE ....................... 26 SPARE PARTS LIST ....................... 26 APPENDIX ..........................28 GLOSSARY ..........................28 WIRING DIAGRAM ........................29 EC DECLARATION OF CONFORMITY .................. 33 OPERATING INSTRUCTIONS - FOX SC2 330... - Page 4 OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 5: General Information
The machine complies with the European standards indicated in the declaration of conformity and incorporation. DAMAGE DURING TRANSPORT LNS is not liable for any damage that occurs during transport. In the event of damage, contact the last carrier. TARGET AUDIENCES... -
Page 6: Nameplate
GENERAL INFORMATION NAMEPLATE A nameplate (1) is located on the side of the spray cabin. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 7: Safety Information
The FOX SC2 330 is a spray cabin. It is for cleaning parts that are contaminated with oil and/or metal shavings during machining. Any other use of the spray cabin is considered as unintended. LNS accepts no liability for any damage resulting from unintended use. -
Page 8: Symbols And Warnings Labels
What to do to avoid danger. Information, notes IMPORTANT Type and source of danger! Consequences of ignoring the warning. What to do to avoid danger. Hazard warning that must be heeded to prevent damage to the environment. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 9: Terms And Symbols
They therefore apply to all models covered in these operating instructions. The terms "left", "right", "front" and "rear" are used to indicate the position of an object. They are always used from the perspective of the operating direction. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 10: Personnel
• Modifications of the spray cabin related to additions and alterations are prohibited. • For the use and maintenance of the spray cabin, only use parts provided by or recommended by LNS. • It is strictly prohibited to jump wire or remove circuit breakers, master switches, and especially safety switches. -
Page 11: Safety Requirements
Do not place the machine in a damp area and make sure that water or oil does not come into contact with the electrical equipment. DANGER Risk of death from electric shock! Do not move the spray cabin while it is electrically powered on. OPERATING INSTRUCTIONS - FOX SC2 330... - Page 12 Keep the work area surrounding the spray cabin clear of objects and well lit. WARNING Risk of falling from lack of safety measures! Keep the floor clean on a regular basis, the presence of oil on the ground could cause falls. OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 13: Safety Signs
SAFETY SIGNS Safety signs mark hazard points on the spray cabin. The signs must always be kept clean and must not be covered. If a sign is missing or damaged, replace it immediately. FRONT REAR OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 14: Description Of The Machine
Level gauge Castor Drain compartment LNS or its local representative may not be held responsible for possible injury or material damage, whether caused directly or indirectly, by any means whatsoever, if certain safety devices have been removed or disabled. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 15: Specifications
(ft) 3500 SPECIAL CONDITIONS To use the “FOX SC2 330” spray cabin in complete safety with flammable solvents, the following safety instructions must be observed: • The spray cabin can be used only inside buildings. • In association with the spray cabin, it is not allowed to use flammable liquids ≤ 60°C of flash point. -
Page 16: Personal Safety Equipment
- For protection against skidding on slippery floors Wear safety goggles: - For protection against chemicals and flying splinters Wear safety gloves: - For protection against chemicals Wear safety clothing: - Dispose of contaminated clothing OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 17: Installation And Startup
Depending on the destination, the spray cabin is normally attached to a pallet and wrapped in thermoplastic film. All shipping documents, including this manual, are also attached to the pallet. To prevent injury and property damage, follow the instructions from LNS on unpacking or independently lifting the type of packaging. UNPACKING For practical and safety reasons, the spray cabin must be unpacked in a spacious, well-lighted area. - Page 18 3) Remove all the screws that fasten the spray cabin to the pallet (including those that cross the wheeled frame). NOTICE Sensor (1) mounted on the bottom! Do not use a forklift to lift the mist collector. Use straps instead. OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 19: Setup
When transporting on the machine’s castors (1), they must be unblocked. Unblock the castors (1): Press the lever (2) upward Block the castors (1): Press the lever (2) downward CONNECTIONS After placing the spray cabin, connect the power cable to the mains socket. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 20: Operation
Description Indicator light Switch Foot sensor WARNING Cutting hazard! The moving components may cause crushing injuries or cuts. During operation, do not access the interior of the machine! Disconnect mains supply before removing cover. OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 21: Maintenance
MAINTENANCE MAINTENANCE The FOX SC2 330 spray cabin is designed to limit necessary maintenance. To ensure continuous, trouble-free operation, regular inspections must be made according to the recommended intervals. WARNING Cutting hazard! The moving components may cause crushing injuries or cuts. -
Page 22: Replacing The Filter Cartridge
The moving components may cause crushing injuries or cuts. During operation, do not access the interior of the machine! Disconnect mains supply before removing cover. 1) Set the switch (1) to Off. 2) Disconnect mains supply. OPERATING INSTRUCTIONS - FOX SC2 330... - Page 23 MAINTENANCE 3) Loosen the screws (2). 4) Remove the cover (3). OPERATING INSTRUCTIONS - FOX SC2 330...
- Page 24 7) Remove the main filter (6). 8) Fit the new main filter. INFO New filter can be ordered under the parts numbers given in the spare parts list. 9) For reassembly, proceed in reverse order. OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 25: Disposal
3) Lightly lubricate the moving parts 4) Turn the machine on 5) Empty the system lubricants 6) Depressurize the hydraulic system 7) Depressurize the pneumatic circuit 8) Bring all components to the recycling point, sorted according to their materials OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 26: Repairs
REPAIRS REPAIRS AFTER-SALES SERVICE LNS America, Inc. 4621 East Tech Drive Cincinnati, Ohio 45245 allproducts-sales@lns-northamerica.com http://www.lns-northamerica.com/ +1-513-528-5674 SPARE PARTS LIST OPERATING INSTRUCTIONS - FOX SC2 330... - Page 27 Hook for Air Gun F050142000 Air Gun C15120100 Air Hose for Air Gun F350147000 Main Filter F030510000 F030523000 Capacitor F030535000 Infrared Sensor 62050214 Contactor F030533000 Indicator Light Green F030532000 Switch 62050085 Body for Control Button OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 28: Appendix
Actions intended to keep a product in reliable, high-performing condition Qualified personnel An employee or other person who receives instruction, training or technical experience that will allow him to identify the risks and hazards during use of a product OPERATING INSTRUCTIONS - FOX SC2 330... -
Page 29: Wiring Diagram
APPENDIX WIRING DIAGRAM OPERATING INSTRUCTIONS - FOX SC2 330... - Page 30 APPENDIX OPERATING INSTRUCTIONS - FOX SC2 330...
- Page 31 APPENDIX OPERATING INSTRUCTIONS - FOX SC2 330...
- Page 32 APPENDIX OPERATING INSTRUCTIONS - FOX SC2 330...
-
Page 33: Ec Declaration Of Conformity
Concerning the Low Voltage Directive: EN 61439-1:2014; EN 61439-2:2016; EN 61439-3:2014 Concerning the EMC Directive: EN 61000-6-4:2007/A1:2011; EN 61000-6-2:2005/AC:2005 Location and date: Stamp and signature: Orvin, July 3 , 2020 Katja Hiltbrunner Export Department Manager OPERATING INSTRUCTIONS - FOX SC2 330... - Page 34 FOX SC2 330 SPRAY CABIN 20.63" 19.75" 20.63" 18.15" 19.75" 16.54" 19.29" LNS North America 513-528-5674 4621 East Tech Drive Allproducts-sales@LNS-northamerica.com Cincinnati, Ohio 45245 www.LNS-northamerica.com...
