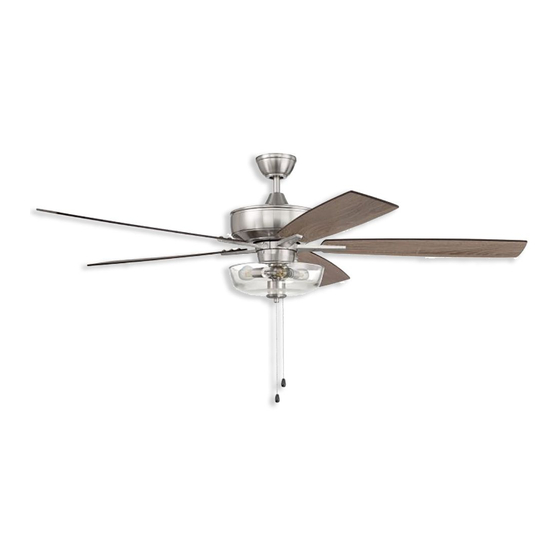

Super Pro 60" with Light Kit

Installation Guide

For models:

S101

S104

S111

S114

S119

E192641

net weight of fans: 27.01 lb (12.25 kg)--S101, S111

26.23 lb (11.9 kg)--S104

26.01 lb (11.8 kg)--S114

22.71 lb (10.3 kg)--S119

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the S101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade S101

Page 1: Table Of Contents
Testing Your Fan. pg. 10 Troubleshooting. pg. 11 Parts Replacement. pg. 11 Warranty. pg. 11 E192641 net weight of fans: 27.01 lb (12.25 kg)--S101, S111 26.23 lb (11.9 kg)--S104 26.01 lb (11.8 kg)--S114 22.71 lb (10.3 kg)--S119 PRINTED IN CHINA...
Page 2: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 3: Unpacking Your Fan
Light Kits by Model Number: i. light kit fitter, 1-light. 1 piece S119 i1. threaded washer (pre-attached to light kit S104/S114 S101/S111 fitter). 1 piece i2. finial plate (pre-attached to light kit fitter). 1 piece i3. finial (pre-attached to light kit fitter). 1 piece i4.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) blades a clearance of 7 feet (2.13m) from the (2.13m) floor and 30in. (76cm) from any wall or obstruction.
Page 5: Fan Assembly. Pgs
stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor...
Page 6: Wiring
5. Fan Assembly. (cont.) wood ceiling With the hanging bracket secured to the outlet box joist and able to support the fan, you are now ready to hang safety cable loop your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging bracket.
Page 7: Canopy Assembly
7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging bracket and canopy push up.
Page 8: Light Kit Assembly, 1-Light Options
*For Models S101 and S111, follow instructions on this page. *For Models S104 and S114, proceed to instructions on page 9. *For Model S119, proceed to instructions on page 10. 10. Light Kit Assembly, 1-light Options. Connect male plug from motor housing to...
Page 9: Light Kit Assembly, 4-Light Options
*For Models S104 and S114, follow instructions on this page. 11. Light Kit Assembly, 4-light Options. Connect male plug from motor housing to motor female plug from switch housing (at top of housing light kit fitter), matching up the colors on the male plug with the colors on the female plug for correct fit.
Page 10: Led Light Kit Assembly Option
*For Model S119, follow instructions on this page. 12. LED Light Kit Assembly Option. Connect male plug from motor housing to motor female plug from switch housing (at top of housing LED light kit), matching up the colors on the male plug with the colors on the female plug for correct fit.
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
