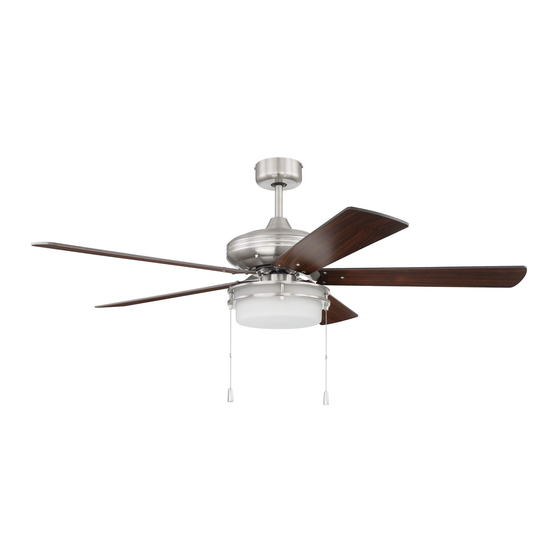

Stonegate
Installation Guide
For Model:
STO52
net weight of fan: 17.86 lb (8.1 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 1
Unpacking Your Fan. pg. 2
Parts Inventory. pg. 2
Installation Preparation. pg. 3
Hanging Bracket Installation. pg. 3
Fan Assembly. pgs. 4 - 5
Wiring. pg. 5
Canopy Assembly. pg. 6
Blade Assembly. pg. 6
Light Kit Assembly. pg. 7
Testing Your Fan. pg. 7
Troubleshooting. pg. 8
Parts Replacement. pg. 8
Warranty.pg. 8
PRINTED IN CHINA
Advertisement
Table of Contents
Related Manuals for Craftmade Stonegate STO52
Summary of Contents for Craftmade Stonegate STO52
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Stonegate Installation Guide For Model: STO52 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly. -
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches that the hanging location allows the blades a 7 feet (76cm) (2.13m) clearance of 7 ft. (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft. -
Page 5: Fan Assembly. Pgs
5. Fan Assembly. stop pin set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove hanging ball stop pin. Then slide hanging ball off of downrod. [Refer to diagram 1.] clip diagram 1... -
Page 6: Wiring
5. Fan Assembly. (cont.) safety cable loop wood With the hanging bracket secured to the outlet box and ceiling able to support the fan, you are now ready to hang your joist fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket and let hanging wood screw ball rest on the hanging bracket. -
Page 7: Canopy Assembly
7. Canopy Assembly. Temporarily raise canopy to hanging bracket hanging bracket to determine which 2 screws align with slotted holes in canopy, and then lower canopy and partially loosen these 2 screws. Remove the other 2 screws/lock washers and set aside. slotted canopy hole... -
Page 8: Light Kit Assembly
9. Light Kit Assembly. light kit Remove 3 screws from switch housing cap at top of light kit fitter fitter. Save screws for later use. Remove 4 decorative nuts from posts at bottom of light kit fitter. Lift shade ring off of glass shade and carefully remove glass shade. -
Page 9: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
