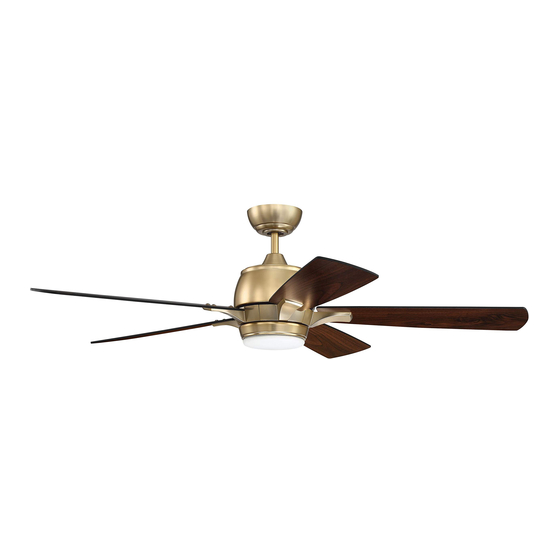

Stellar
Installation Guide
For Model:
STE52
net weight of fan: 20.35 lb (9.23 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pgs. 6 - 7
Canopy Assembly. pg. 7
Blade Assembly. pg. 8
LED Light Kit Assembly. pgs. 8 - 9
Handheld Remote Control
Assembly. pgs. 9 - 10
Automated Learning Process/Activating
Code. pg. 10
Remote Control Operation. pg. 11
Testing Your Fan. pg. 11
Troubleshooting. pg. 12
Warranty. pg. 12
Parts Replacement. pg. 12
page 1
PRINTED IN CHINA
Advertisement
Related Manuals for Craftmade Stellar STE52SB5
Summary of Contents for Craftmade Stellar STE52SB5
- Page 1 READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Stellar Installation Guide Table of Contents: For Model: Safety Tips. pg. 2 STE52 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.
- Page 2 Consult the dealer or an experienced radio/TV technician for help. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
- Page 3 1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
- Page 4 3. Installation Preparation. blade edge To prevent personal injury and damage, ensure that inches the hanging location allows the blades a clearance 7 feet (76cm) of 7 feet (2.13m) from the floor and 30in. (76cm) (2.13m) from any wall or obstruction. 12ft - 20ft (3.66m - 6.1m) This fan is suitable for room sizes up to 400 square...
- Page 5 stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram diagram 1 Loosen yoke set screws and nuts at top of motor housing.
- Page 6 5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. safety cable loop Grab the fan firmly with two hands. Slide downrod through wood opening in hanging bracket and let hanging ball rest on the ceiling...
- Page 7 6. Wiring. (cont.) If you intend to control the fan light with a separate light switch connect BLUE wire from fan to the BLACK (or RED) supply from the independent switch. * Wrap each wire connector separately with outlet box wall control electrical tape as an extra safety measure.
- Page 8 8. Blade Assembly. WARNING: To reduce the risk of serious motor housing bodily injury, DO NOT use power tools to assemble the blades. If overtightened, blades may crack and break. Locate 15 blade attachment screws/washers in hardware pack. Hold blade arm up to blade blade attachment screws/washers and align holes.
- Page 9 9. LED Light Kit Assembly. (cont.) motor Remove 1 screw from underside of fitter plate housing and partially loosen the other two screws. Connect WHITE wire from motor housing to WHITE wire from LED light kit. Connect BLACK wire from motor housing to BLACK wire from LED light kit.
- Page 10 10. Handheld Remote Control Assembly. (cont.) Attach black faceplate to front of wall control; press post post down firmly. [Refer to diagram 3.] hole hole Align holes in wall control with posts located on inside of TOP part of remote control cover and press together firmly.
- Page 11 12. Remote Control Operation. ON/OFF slider switch - turns wall control ON or OFF (switch not functional on handheld remote) HIGH button - turns fan to HIGH speed MED button - turns fan to MEDIUM speed LOW button - turns fan to LOW speed OFF button - turns fan OFF wall control...
- Page 12 1. Check wall switch to fan/wall control. Service at 1-800-486-4892 to arrange for return of fan. 2. Check to be sure wall control (optional use) is Return fan, shipping prepaid, to Craftmade. We will repair wired properly. 3. Check to be sure fan is wired properly.
