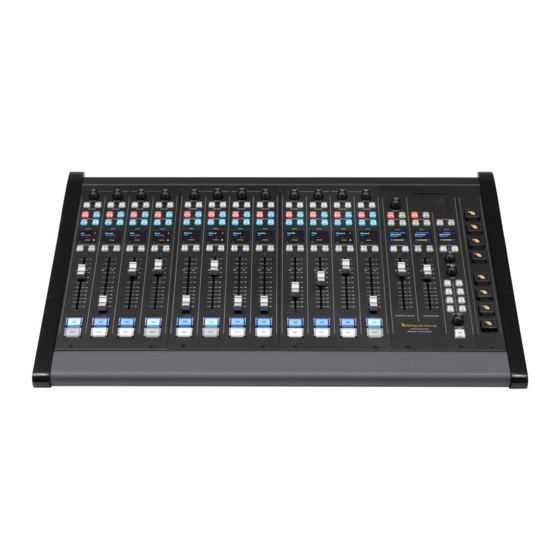

Wheatstone GSX Quick Manual

(GSX-12xx frames have one slot, GSX-24xx have three slots)
PGM 1 METER
FADER CHANNELS (FOUR PER INPUT PANEL)
FADER CHANNEL CONTROLS:
SOURCE SELECTOR
(PRESS TO TAKE)
USER-DEFINED BUTTONS*
(DEFAULT: SET & MODE)
BUS ASSIGNMENT
CHANNEL INFO DISPLAY
(SOURCE NAME,
MODE, SOURCE LOGIC &
MIC STATUS, CHANNEL FEATURES
or ALTERNATE SOURCE LIST)
TALKBACK
(TO BUS MINUS)
(PRE-FADER, PRE-ON LISTEN)
CHANNEL FADER KNOB
FADER UNITY GAIN MARKS
CHANNEL ON
CHANNEL OFF
GSX D
IGITAL

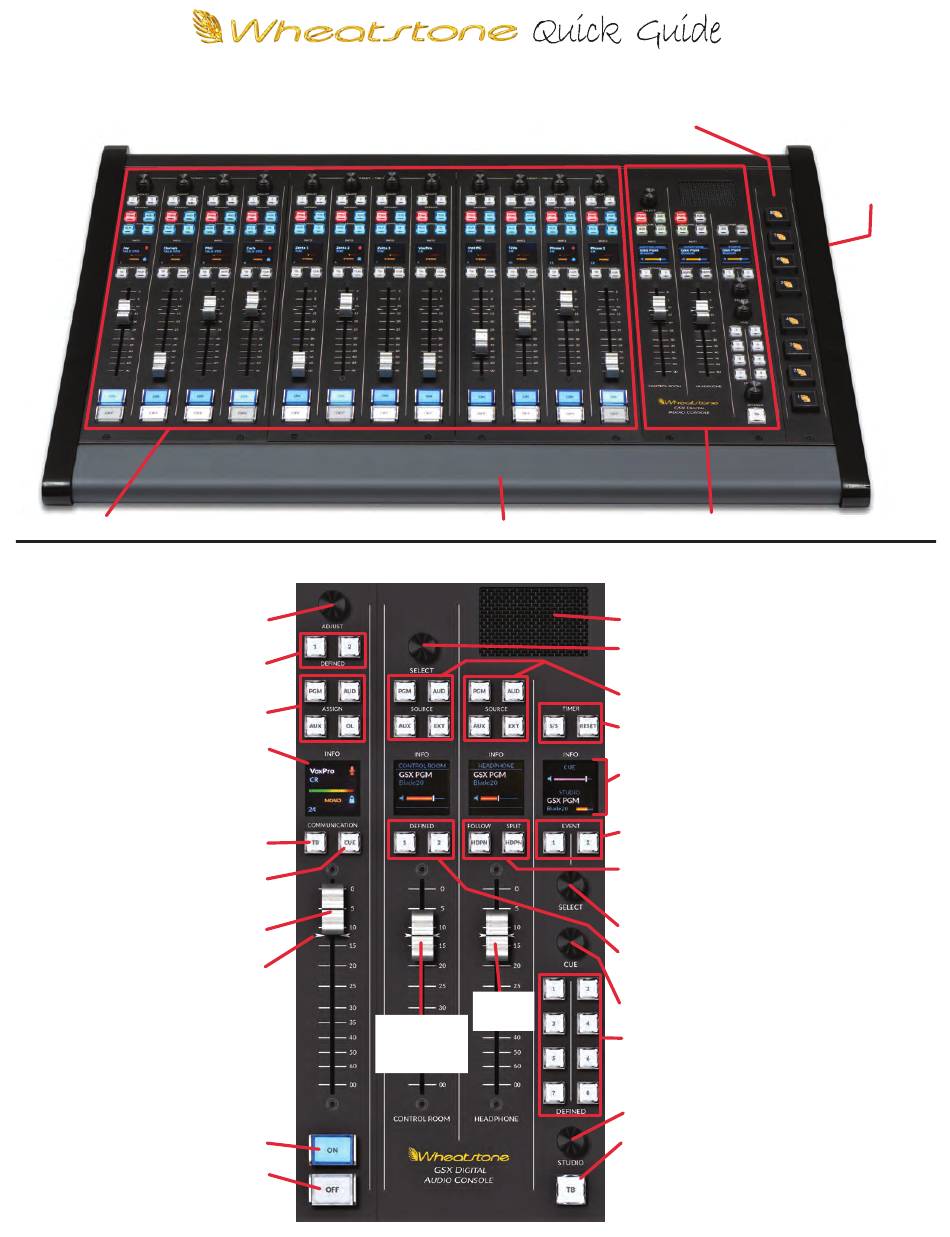

GSX SURFACE PARTS ID
ACCESSORY PANEL SLOT
PGM 2 METER
BOARD OPERATOR CONTROLS
CUE
CONTROL
ROOM
LEVEL
A C
UDIO ONSOLE
(OPTIONAL SS-8 PANEL SHOWN)
SWITCHED METER
PALM REST
MASTER PANEL CONTROLS:
CUE SPEAKER
CR MONITOR SOURCE SELECTOR
(PRESS TO TAKE)
CR & HP SOURCE HOT KEYS
TIMER
(START/STOP & RESET)
CR, HP & STUDIO INFO DISPLAYS
(MONITOR SOURCE & LEVEL)
EVENT TAKE BUTTONS
HEADPHONE CONTROLS
(FOLLOW CR MON SOURCE, WHEN LIT)
(STEREO CUE OR SPLIT CUE, WHEN LIT)
STUDIO SOURCE SELECTOR
USER-DEFINED BUTTONS*
(DEFAULT: CUE CLEAR / HOME VIEW)
HP
CUE SPEAKER LEVEL
LEVEL
USER-DEFINED BUTTONS*
(DEFAULT: SPARE BUTTONS 1- 8)
STUDIO MONITOR LEVEL
TALK TO STUDIO
*
New Bern, NC 28562 USA
techsupport@wheatstone.com
EVENT TIMER
MASTER PANEL
REQUIRES THE OPTIONAL "PANEL
LAYOUT" LICENSE (WS# 087993)
TO EDIT THE DEFAULT SETTINGS
Service & Support
600 Industrial Drive
+1 252 638 7000
www.wheatstone.com
OPERATOR
HEADPHONE
JACK
1 of 3 rA
