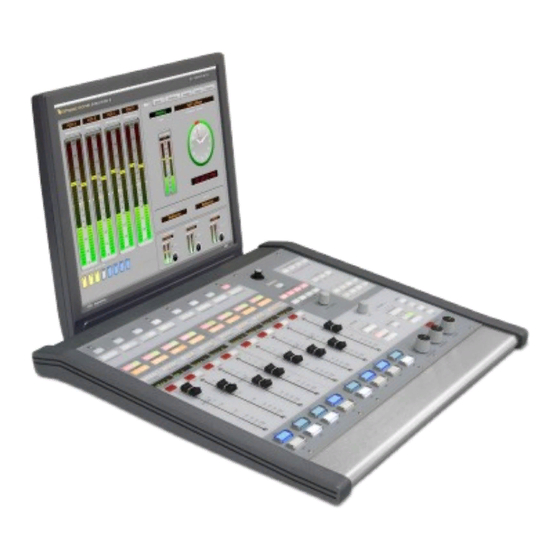

E-5 Digital Control Surface
TECHNICAL MANUAL
600 Industrial Drive, New Bern, North Carolina, USA 28562

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wheatstone E-5

Summary of Contents for Wheatstone E-5

  • Page 1 E-5 Digital Control Surface TECHNICAL MANUAL 600 Industrial Drive, New Bern, North Carolina, USA 28562...
  • Page 2 E-5 Digital Control Surface Technical Manual E-5 Digital Control Surface Technical Manual E-5 Digital Control Surface Technical Manual E-5 Digital Control Surface Technical Manual E-5 Digital Control Surface Technical Manual ©2008 Wheatstone Corporation WHEATSTONE CORPORATION 600 Industrial Drive New Bern, North Carolina 28562...
  • Page 3 Any modifications not expressly approved in writing by Any modifications not expressly approved in writing by Wheatstone could void the user's authority to operate this equipment. Wheatstone could void the user's authority to operate this equipment. Wheatstone could void the user's authority to operate this equipment.
  • Page 4 Caution! Do not use ammonia based cleaning solutions as they can cause the surface to yellow, and became brittle and eventually cause structural damage to the acrylic surface. Wheatstone will not be liable for damage resulting from improper cleaning and maintenance. R R R R R...

  • Page 5: Table Of Contents

    TB BUS- Switch ....................2-6 Bus-Minus Outputs ....................2-6 Fader ........................2-7 Channel ON Switch ..................... 2-7 Channel OFF Switch ................... 2-7 Channel Status Buttons Display ................2-7 page Contents – 1 E-5 / Apr 2008 E-5 / Nov 2009...
  • Page 6 Machine Logic ......................3-20 Optional Glass E Interface ..................3-21 Network Settings ..................... 3-22a E-5 GUI Main Tab Screen Controls ................. 3-23 E-5 GUI Input Tab Screen Controls ................ 3-24 E-5 GUI MixMinus Tab Screen Controls ..............3-25 E-5 GUI Presets Tab Screen Controls ..............3-26 E-5 GUI Events Tab Screen Controls ..............
  • Page 7 Schematic ....................... 5-7 Load Sheet ......................5-10 HC-3 Host Controller Card Schematic ......................5-11 Load Sheet ......................5-15 PSU-1 Power Supply Schematic ......................5-16 Load Sheet ......................5-17 page Contents – 3 E-5 / Apr 2008 E-5 / Jan 2009...
  • Page 8 Modifying The Options Text File ................A-6 A Simple Example From The File ................A-7 A Second Example ....................A-8 An Example File - Complete ................... A-9 Appendix 3 Replacement Parts List ............A-16 page Contents – 4 E-5 / Apr 2008...
  • Page 9 Failsafe Dual Redundant Supply ................1-5 Energizing ....................... 1-5 I/O Connections ................1-6 Getting Started ................1-8 Log-In ..................1-9 Tabbed Navigation ..............1-9 Surface Software Version ............1-10 Help ................... 1-10 page 1 – 1 E-5 / Apr 2008 E-5 / Nov 2009...

  • Page 10: Introduction

    Four mix output buses, four mix-minus buses, and individual fader bus minus with talkback are some of the standard features. The E-5 also has event recall, three monitor outputs, and pan, mode, and phase reverse for each channel. It supports multiple arrays of programmable input channel and master panel switches for customized functions like phone, intercom, salvos, or machine commands.

  • Page 11: Control Surface Placement

    Cutout dimensions (in inches) are shown in the drawings below for 5 available frame sizes. Do not connect the E-5 control surface to its power supply (and do not connect the power supply to the AC power line) until instructed to do so.

  • Page 12: Power Supply

    Rear view of the PSU-1 rackmount power supply If failsafe redundant sup- The E-5 control surface is powered by a Wheatstone Model PSU-1 plies have been ordered, rackmount power supply. This unit occupies two 19” wide rack spaces you will be installing two PSU-1 units.

  • Page 13: Failsafe Dual Redundant Supply

    BOTH rackmount supplies powered up and connected to their associ- ated equipment. Energizing Assuming the E-5 control surface mainframe is properly placed, and its PSU-1 power supply (or supplies) correctly rackmounted and connected to the control surface, you may now energize the rackmount power supply by plugging it into the AC mains.

  • Page 14: I/O Connections

    G E N E R A L I N F O R M A T I O N I/O Connections All user wiring to and from the E-5 control surface is made via connectors located on the control surface’s rear panel. Two 5-pin male connectors at the center of the control surface’s rear are for power supply connections.
  • Page 15 G E N E R A L I N F O R M A T I O N page 1 – 7 E-5 / Apr 2008 E-5 / Nov 2009...

  • Page 16: Getting Started

    G E N E R A L I N F O R M A T I O N Getting Started The E-5 control surface comes with the E-5 Embedded Graphical User Interface (GUI) program, intended to be straightforward in use, controlling and displaying graphics, production tools, and set up screens.

  • Page 17: Log-In

    MixMinus Tab - displays controls for the four Mix-Minus Outputs. Presets Tab - the E-5 includes the ability to save, copy, and paste the channel’s settings. Settings are stored as Presets. The Preset Pane allows you to manage and apply presets to Sources and faders.

  • Page 18: Surface Software Version

    G E N E R A L I N F O R M A T I O N Events Tab - the E-5 can store a “snapshot” of the entire control surface in a file called an EVENT. The Event Pane is divided into two sections. The Event Recall section lets you recall previously saved Events.
  • Page 19 CUE Switch ......................2-6 TB BUS- Switch ....................2-6 Bus-Minus Outputs .................... 2-6 Fader ........................2-7 Channel ON Switch ................... 2-7 Channel OFF Switch ..................2-7 Channel Status Buttons Display ................ 2-7 page 2 – 1 E-5 / Apr 2008...

  • Page 20: Chapter 2 - Input Panel (Ipe-5)

    Input Tab located on the VGA monitor. The Input Tab is the center of control for the E-5 surface. Here you find easy access to most of the fader strip’s parameters. The hardware LED indi- cators on the fader strip let the operator know when a particular function is active.

  • Page 21: Input Tab Display

    This feature is espe- cially useful in large systems with lots of sources. Visibility for input sources can also be set from the surface. This procedure is outlined in Chapter 3. page 2 – 3 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 22: Programmable Button Windows

    SETbutton on the pop-up window to confirm. If your choice was “Take A Source” then the Source list pops up when you click the SET button to allow you to choose the desired source. page 2 – 4 E-5 / Apr 2008...

  • Page 23: Fader Mode Controls And Indicators

    The user can save all adjustments with the SAVE button. Pressing the SAVE button will bring up the “SAVE TO” form that allows all changes to be saved to a channel, a source, an event, or a preset. page 2 – 5 E-5 / Apr 2008...

  • Page 24: Other Physical Switches And Leds

    Bus-Minus mix outputs for each surface fader appear as Sources in the Surface signal area of XPoint, typically located above source signal ID1001. A typical Bus-Minus output signal name is E1BM01 but the exact name depends on the fader and surface ID number. page 2 – 6 E-5 / Apr 2008...

  • Page 25: Fader

    Operators should be made aware that logic associated with a signal will not act as expected when the logic lock indicator is ON. page 2 – 7 E-5 / Apr 2008...
  • Page 26 Machine Logic ....................... 3-20 Optional Glass E Interface ..................3-21 Network Settings ....................3-22a E-5 GUI Main Tab Screen Controls ..............3-23 E-5 GUI Input Tab Screen Controls ..............3-24 E-5 GUI MixMinus Tab Screen Controls .............. 3-25 E-5 GUI Presets Tab Screen Controls ..............3-26 E-5 GUI Events Tab Screen Controls ..............

  • Page 27: Chapter 3 - Master Panel (Mne-5)

    M A S T E R P A N E L Master Panel (MNE-5) Controls and Functions The E-5 digital audio control surface is equipped with one MASTER panel. This panel contains numerous controls, includ- ing INPUT SOURCE select, PAN, CUE,...

  • Page 28: Input Source Knob

    The XPoint matrix is analagous to an electronic patch bay. Audio sources (router inputs) are located along the X axis at the top, audio destinations (router outputs) are vertically page 3 – 3 E-5 / Jan 2009 E-5 / Apr 2008...
  • Page 29 You can also make and use visibility SUBSETS. To apply a preset to the current channel, select the preset from the SUBSETS drop down box, then press LOAD. After page 3 – 4 E-5 / Jan 2009 E-5 / Apr 2008...

  • Page 30: Mxm Assign Switches

    LEDs are OFF to normalize the setup, then simply press the desired MXM assign switch to remove the signal from an MXM bus. The MXM assign LED on the fader strip will light to indicate the signal is removed. page 3 – 5 E-5 / Jan 2009 E-5 / Apr 2008...

  • Page 31: Mxm Talkback

    Destination signal with a name similar to E1TBack. The actual name depends on how many surfaces you have. There is only one TB bus input on the E-5. You can use Programmable buttons to momentarily route other sources to the MXM outputs.

  • Page 32: Monitor Speaker Controls

    PROGRAM A, B, C, or D, two programmable sources (EXT1 and EXT2), and Mix Minus outputs 1-4. Simply press the desired switch to listen to that output bus or external source signal. page 3 – 7 E-5 / Apr 2008...

  • Page 33: Programming External Source Switches

    VDip to MUTE the control room output and prevent the occurrence of feedback. When MUTE is active, the word MUTE appears in the center of the monitor’s meter display. The CR level may also be locked to a user defined volume level. See the E-5 Monitor Options section below. Headphone Section The built in HP amp output signal appears at the headphone jack, mounted on the right- hand front of the control surface’s lower mainframe pan.

  • Page 34: Talkback To Studio

    E1TBk. The actual name depends on how many surfaces you have. There is only one TB bus input on the E-5. You can use Programmable Buttons to momen- tarily route other sources to the Studio output.

  • Page 35: Events

    M A S T E R P A N E L Events The E-5 includes a snapshot save and recall feature that saves all of the surface’s switch, level, and DSP settings to a unique Event file. These saved Events may be recalled as required at any time.

  • Page 36: Control Modes - User Permissions

    M A S T E R P A N E L Control Modes - User Permissions The E-5 control surface is operated in one of four modes: Intern, Operator, Production, and Engineering. Engineering mode, by default, allows the user to perform all surface functions.
  • Page 37 (current) passcode and then enter the new passcode twice and click OK to effect the change. Once a given control mode is selected for a surface, that setting will persist through a power cycle or surface reset. page 3 – 12 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 38: Presets Tab Functions

    Press the Input tab and click the LOAD button on the bottom of the Input screen to display the PRESET LOAD screen. Choose the PRESET TYPE, highlight the desired preset, and press LOAD. page 3 – 13 E-5 / Apr 2008...

  • Page 39: Save

    A METERS setting on the Options Tab allows you to turn off Auto-Cue to this meter. page 3 – 14 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 40: Timer Section

    (via the GUI) input modules can automatically reset the timer display (located on the upper-left side of the main E-5 GUI screen) to zero and start a new count, allowing the announcer to easily track his own pace.

  • Page 41: Programmable Buttons

    See the E-Series Network Sys- tem manual for details. Some of the spare button programming can be done via the E-5 GUI. Press the Options tab and choose Programmable But- tons from the AVAILABLE OPTIONS scroll down list to display the Program- mable Buttons form.
  • Page 42 XPoint - the button LED is controlled by a system DIO which is also configured in XPoint • Software Controlled - in this mode the button’s function is set up by the E-5 GUI using the EDIT button, as described below - the LED is controlled by the surface and is on while the button is pressed and off when released •...

  • Page 43: Vdip Settings

    You may configure VDip from the E-5 directly or by using the VDip dialog box in XPoint software. It is conve- nient to configure VDip right on the E-5, but you may have to use XPoint if you have other surface models.
  • Page 44 ON. There are five STUDIO MUTES checkboxes, one for each monitor section plus one for CUE. The checked boxes show which speakers are muted. Note that the Studio 2 mute has no effect on the E-5 surface. STUDIO TALLIES—Turning the channel ON can activate a remote tally indicator.

  • Page 45: Machine Logic

    CLEAR will remove checks from all the checkboxes in this area. Machine Logic The surface’s start/stop logic options can be selected via the E-5 GUI. Press the Options tab and choose Misc Options from the AVAILABLE OPTIONS scroll down list to display MA- CHINE LOGIC choices.

  • Page 46: Optional Glass E Interface

    M A S T E R P A N E L Optional Glass E Interface Wheatstone offers the optional PC-based software, called “Wheatstone Glass E Virtual Control Surface,” that con- trols the E-5 surface from a remote PC. The Windows XP-based PC soft- ware accesses remotely through a LAN/WAN.
  • Page 47 M A S T E R P A N E L Enter the surface’s IP address and the Port, User name, and Password you previously set up at the E-5, and you should then see screens similar to following two screens (shown for E-6...

  • Page 48: Network Settings

    You can manually enter this informa- tion by turning off Automatic mode and using the numbered keypad on the screen. Pressing NEXT will advance to the next field. page 3 – 22a page 3 – 23 E-5 / Apr 2008 E-5 / Apr 2009...
  • Page 49 M A S T E R P A N E L For convenience, Wheatstone uses the following convention for IP Address- ing in the WheatNet-IP system: 1. The IP Address of a BLADE is equal to the BLADE ID plus 100; i.e.

  • Page 50: Gui Main Tab Screen Controls

    Functions display: Clock, timer, current event, and switched meter Program meters Click on EXT windows to choose source Channel Select / Status Monitor Controls Buttons Access Authorization E-5 GUI Main Tab Screen Controls page 3 - 23 E-5 / Apr 2008...

  • Page 51: Gui Input Tab Screen Controls

    Separate password protected login for engineers, jocks, interns. MUTE labels let you see when speakers are muted. E-5 GUI Input Tab Screen Controls page 3 - 24 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 52: Gui Mixminus Tab Screen Controls

    MXM LED is lit, the audio on that fader is NOT going to the bus. It is very easy to see which faders are “minused” out. E-5 GUI MixMinus Tab Screen Controls page 3 - 25 E-5 / Apr 2008...

  • Page 53: Gui Presets Tab Screen Controls

    Button Bar to save a new preset Shows which fader strips have the selected preset applied to them Shows which sources have the selected preset applied to them E-5 GUI Presets Tab Screen Controls page 3 - 26 E-5 / Apr 2008...

  • Page 54: Gui Events Tab Screen Controls

    RENAME—3 guesses? Just click on the event name and the virtual keyboard opens up. DELETE—Just click on the event name, click DELETE and confirm. E-5 GUI Events Tab Screen Controls page 3 - 27 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 55: Gui Options Tab Screen Controls

    Options Manager tab — Provides access to a whole host of system options. Some are self explanatory, but see the Options Details section for details. E-5 GUI Options Tab Screen Controls page 3 - 28 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 56: Gui Input Tab Screens

    Choose fader sources Press SET on a fader to open main INPUT screen Setup Programmable Buttons Use the Button Bar to navigate various input screens Preset Load Save VDIP E-5 GUI Input Tab Screens page 3 - 29 E-5 / Apr 2008...

  • Page 57: Gui Options Tab Screens

    User Configuration Programmable Buttons Crosspoint Visibility Miscellaneous Options Network Settings VDIP Settings Source Visibility Monitor Configuration This screen available only for the system with WheatNet-IP engine BLADE. E-5 GUI Options Tab Screens page 3 - 30 E-5 / Apr 2009...
  • Page 58 “CAT5” RJ-45 - Mixer Link Connector ..............4-4 “HEADPHONE” - Headphone Connector ............... 4-4 Typical Ethernet Cable .............. 4-5 Typical Crossover Cable ............4-5 HC-3 Pinouts Drawing ............... 4-6 page 4 – 1 E-5 / Apr 2008 E-5 / Jan 2009...

  • Page 59: Overview

    A video port is provided for the user-provided VGA monitor, and a keyboard port is for factory use only. The purpose of the host controller is to provide control of the E-5 control surface. The HC-3 communicates to the XPoint Configuration PC via TCP/IP over Ethernet through a standard ethernet hub or switch.

  • Page 60: Mixer Link Wiring

    These dipswitch positions are reserved for future use. SW1 Position 4 - CAT5 Enable Position 4 of SW1 must be in the on position in order to activate the CAT5 mixer link connections. page 4 – 3 E-5 / Apr 2008 E-5 / Jan 2009...
  • Page 61 Pin 7 – HDPN RT HI Pin 8 – HDPN RT SH Pin 3 – HDPN RT LO Pin 1 – N/C Pin 2 – N/C Pin 6 – N/C page 4 – 4 E-5 / Apr 2008 E-5 / Jul 2009...
  • Page 62 RXD - Orange Green RXD + TXD + White/Green White/Orange RJ-45 RJ-45 Plug Blue Blue Plug White/Blue White/Blue RXD - TXD - Green Orange White/Brown White/Brown Brown Brown SED FOR MIXER LINK CONNECTOR page 4 – 5 E-5 / Apr 2008...
  • Page 63 RXD - RXD - LN LED LK LED "HEADPHONE" Female DB-9 These are line level inputs 5 4 3 2 1 to the internal amplifiers that feed the surface’s head- phone jack. page 4 – 6 E-5 / Apr 2008...
  • Page 64 MNE-5 Master Panel Switch Card Schematic ......................... 5-7 Load Sheet ....................... 5-10 HC-3 Host Controller Card Schematic ........................ 5-11 Load Sheet ....................... 5-15 PSU-1 Power Supply Schematic ........................ 5-16 Load Sheet ....................... 5-17 page 5 – 1 E-5 / Apr 2008...
  • Page 65 DATE DRAWN 1-30-07 600 Industrial Drive New Bern, NC 28562 CHECKED __________________________ SWITCH LED DRIVE LOW ISSUED SIZE FSCM NO. DWG. NO. 84S0170-1 W# 700886 IPE-6 PCB 1 OF 2 SCALE SHEET page 5 - 2 E-5 / Apr 2008...
  • Page 66 DATE MDL_CLK DRAWN FDR_2.5REF 1-30-07 600 Industrial Drive New Bern, NC 28562 FADER 1 CHECKED DS46 ISSUED SIZE FSCM NO. DWG. NO. 84S0170-2 W# 700886 IPE-6 PCB 2 OF 2 SCALE SHEET page 5 - 3 E-5 / Apr 2008...
  • Page 67 S C H E M A T I C D R A W I N G S IPE-5 4 Inputs Panel Switch Card - Load Sheet page 5 – 2 page 5 – 4 E-5 / Apr 2008...
  • Page 68 - SA UR US - Sergey Averin - APPROVALS DATE DRAWN 600 Industrial Drive 10-25-06 New Bern, NC 28562 CHECKED SIZE FSCM NO. DWG. NO. 84S0172 ISSUED W# 700888 SCALE ONSE-6A PCB SHEET 1 OF 1 page 5 - 5 E-5 / Apr 2008...
  • Page 69 S C H E M A T I C D R A W I N G S ONSE-5 4 Inputs Panel On/Off Switch Load Sheet page 5 – 3 page 5 – 6 E-5 / Apr 2008...
  • Page 70 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF 0.1uF WWP/SA 2-14-07 600 Industrial Drive New Bern, NC 28562 CHECKED ISSUED SIZE FSCM NO. DWG. NO. 84S0188-1 W# 700912 MNE-5 PCB 1 OF 3 SCALE SHEET page 5 - 7 E-5 / Apr 2008...
  • Page 71 - SA UR US - Sergey Averin - APPROVALS DATE DRAWN SA/WWP 2-14-07 600 Industrial Drive New Bern, NC 28562 CHECKED ISSUED SIZE FSCM NO. DWG. NO. 84S0188-2 W# 700912 MNE-5 PCB 2 OF 3 SCALE SHEET page 5 - 8 E-5 / Apr 2008...
  • Page 72 - SA UR US - Sergey Averin - APPROVALS DATE DRAWN SA/WWP 2-14-07 600 Industrial Drive New Bern, NC 28562 CHECKED ISSUED SIZE FSCM NO. DWG. NO. 84S0188-3 W# 700912 MNE-5 PCB 3 OF 3 SCALE SHEET page 5 - 9 E-5 / Apr 2008...
  • Page 73 MNE-5 Master Panel Switch Card - Load Sheet page 5 – 10 E-5 / Apr 2008...
  • Page 74 C100 C104 C109 C110 C112 CHECKED CUE_I_LO GLOBAL_ARB CUE_I_HI 0.1uF 100uF 0.01uF 0.1uF 0.1uF 0.1uF 0.1uF ISSUED SIZE FSCM NO. DWG. NO. 84S01xx W# 700790 HC-3B PCB 1 OF 4 SCALE SHEET page 5 - 11 E-5 / Apr 2008...
  • Page 75 - SA UR US - Sergey Averin - APPROVALS DATE DRAWN 10-19-06 600 Industrial Drive New Bern, NC 28562 CHECKED ISSUED SIZE FSCM NO. DWG. NO. 84S01xx W# 700790 HC-3B PCB 2 OF 4 SCALE SHEET page 5 - 12 E-5 / Apr 2008...
  • Page 76 R4 47 AT_P4 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF ISSUED SIZE FSCM NO. DWG. NO. 84S01xx 8952_RX+ AT_P3 W# 700790 HC-3B PCB 3 OF 4 SCALE SHEET page 5 - 13 E-5 / Apr 2008...
  • Page 77 2.5V 0.1uF 100uF 47uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF 0.01uF ISSUED SIZE FSCM NO. DWG. NO. 84S01xx W# 700790 HC-3B PCB 4 OF 4 SCALE SHEET page 5 - 14 E-5 / Apr 2008...
  • Page 78 HC-3 Host Controller Card - Load Sheet page 5 – 15 E-5 / Apr 2008...
  • Page 79 - SA UR US - Sergey Averin - APPROVALS DATE 600 Industrial Drive DRAWN 2-3-06 New Bern, NC 28562 CHECKED SIZE FSCM NO. DWG. NO. 00S0034 ISSUED W# 700828 PSU-1B PCB 1 OF 1 SCALE SHEET page 5 - 16 E-5 / Apr 2008...
  • Page 80 S C H E M A T I C D R A W I N G S PSU-1 Power Supply Load Sheet page 5 – 4 page 5 – 17 E-5 / Apr 2008...
  • Page 81 Modifying The Options Text File ................A-6 A Simple Example From The File ................A-7 A Second Example ....................A-8 An Example File - Complete ..................A-9 Appendix 3 Replacement Parts List .............. A-16 page A – 1 E-5 / Apr 2008...
  • Page 82 A P P E N D I C E S Appendix 1 Contents Control Surface Clock ..............A-3 Setting the Time ......................A-3 Update Options ......................A-3 Synchronize ......................A-3 Battery Backup ......................A-4 page A – 2 E-5 / Apr 2008...

  • Page 83: Control Surface Clock

    A P P E N D I C E S Control Surface Clock The main E-5 GUI screen includes the digi- tal and analog displays of a time of day clock. Setting the Time Setting the time of the control surface’s...

  • Page 84: Battery Backup

    (it will do this for 3 to 4 weeks). To activate battery backup of the control surface’s clock simply pull out the yellow strip from the HC-3 board, as shown on the picture below. page A – 4 E-5 / Apr 2008...
  • Page 85 Options Text File ................A-6 Introduction ....................... A-6 Modifying The Options Text File ................A-6 A Simple Example From The File ................A-7 A Second Example ....................A-8 An Example File - Complete ..................A-9 page A – 5 E-5 / Apr 2008...

  • Page 86: Options Text File

    Options Text File Introduction There are a number of operational features on the E-5 surface that are controlled by the contents of the Options Text File (E5_OPTS.TXT) that resides on the surface's flash drive. In order to configure these features it is necessary to modify this file.

  • Page 87: A Simple Example From The File

    The edited line must follow the established syntax precisely or the surface may not behave as expected. page A – 7 E-5 / Apr 2008...

  • Page 88: A Second Example

    You may have fewer or greater modes available depending on the surface model and vintage. In any event you can select the same or a different mode from the available modes for each programmable button on the surface. page A – 8 E-5 / Apr 2008...

  • Page 89: An Example File - Complete

    // ? is the Dynamic Range (default = 0) 0 = 40dB 1 = 60dB DYNRANGE:0 // Syntax: AUTOCUE:? // ? is the mode (default = 1) 0 = Auto Cue Off 1 = Auto Cue On AUTOCUE:0 page A – 9 E-5 / Apr 2008...
  • Page 90 // ? is the mode (default = 0)... 0 = Normal bus minus mode 1 = Fader direct mode DIRECT_OUT1:0 DIRECT_OUT2:0 DIRECT_OUT3:0 DIRECT_OUT4:0 DIRECT_OUT5:0 DIRECT_OUT6:0 DIRECT_OUT7:0 DIRECT_OUT8:0 DIRECT_OUT9:0 DIRECT_OUT10:0 DIRECT_OUT11:0 DIRECT_OUT12:0 DIRECT_OUT13:0 DIRECT_OUT14:0 DIRECT_OUT15:0 DIRECT_OUT16:0 DIRECT_OUT17:0 DIRECT_OUT18:0 DIRECT_OUT19:0 page A – 10 E-5 / Apr 2008...
  • Page 91 // Syntax: ALPHA_SORT:? // ? 1 (default) = XY controller alpha sorting enabled, 0 = no sort. ALPHA_SORT:1 // Syntax: INVERT_MM:? // ? 1 (default) = MM button state inverted, 0 = no invert. page A – 11 E-5 / Apr 2008...
  • Page 92 // ? Port Number to listen for Glass E connections on - default=49152. GLE_PORT:49152 // Syntax: GLE_USER:? // ? Glass E interface user name (up to 15 chars... emtpy will disable interface). page A – 12 E-5 / Apr 2008...
  • Page 93 // 0xfa9007 (default) = Color for readout text. READOUT_NTEXT:0xfa9007 // Syntax: READOUT_STEXT:0xRRGGBB // 0x000000 (default) = Color for selected readout text. READOUT_STEXT:0x000000 // Syntax: ACTIVE_TAB_TEXT:0xRRGGBB // 0xffffff (default) = Color for text on the active tab ACTIVE_TAB_TEXT:0xffffff page A – 13 E-5 / Apr 2008...
  • Page 94 A P P E N D I C E S // Syntax: INACTIVE_TAB_TEXT:0xRRGGBB // 0x333333 (default) = Color for text on inactive tabs INACTIVE_TAB_TEXT:0x333333 DEBUG_FLAGS:0x00000000 CLOCK_MODE:12 CLOCK_SECONDS_COUNTDOWN:20 CR_LEVEL_LOCK:-1 HDPN_LEVEL_LOCK:-1 STU1_LEVEL_LOCK:-1 STU2_LEVEL_LOCK:-1 PGMA_LABEL:PGM A PGMB_LABEL:PGM B PGMC_LABEL:PGM C PGMD_LABEL:PGM D page A – 14 E-5 / Apr 2008...

  • Page 95: Appendix 3

    Replacement Parts List .............. A-16 For the most part there are no user-replaceable parts in the E-5 control surface. Exceptions are those controls and components that in the course of normal use may need maintenance (i.e., faders, pots, ON switches, etc.). A complete list of available components is shown on the next page.
  • Page 96 A P P E N D I C E S REPLACEMENT PARTS — E-5 CONTROL SURFACE COMPONENT DESCRIPTION WS P/N IPE-5 PANEL COMPLETE INPUT PANEL "009502" MNE-5 PANEL COMPLETE MASTER PANEL "009503" BK-E6 PANEL BLANK PANEL "009529" IPE-6 LOADED CARD INPUT PANEL LOADED CARD ASSEMBLY "009515"...
  • Page 97 A P P E N D I C E S REPLACEMENT PARTS — E-5 CONTROL SURFACE COMPONENT DESCRIPTION WS P/N ENCODER 11mm ROTARY ENCODER, 20MM SHAFT LENGTH, ORDER W# 005030 ENCODER KNOB 15MM GRAY COLLET KNOB FOR 1/8" SHAFT "520022"...
