NOTES
-
Before you insert/remove the CI module, ensure that the TV is switched off. Then insert the
CI card into the CI module in accordance with the Service Provider's instructions.
-
Do not repeatedly insert or remove the Common Access Module as this may damage the
interface and cause a malfunction.
-
You must obtain a CI module and card from the service provider of the channels you want to
watch.
-
Insert the CI module with the SmartCard in the direction marked on the module and
SmartCard.
-
CI is not supported in some countries and regions; check with your authorized dealer.

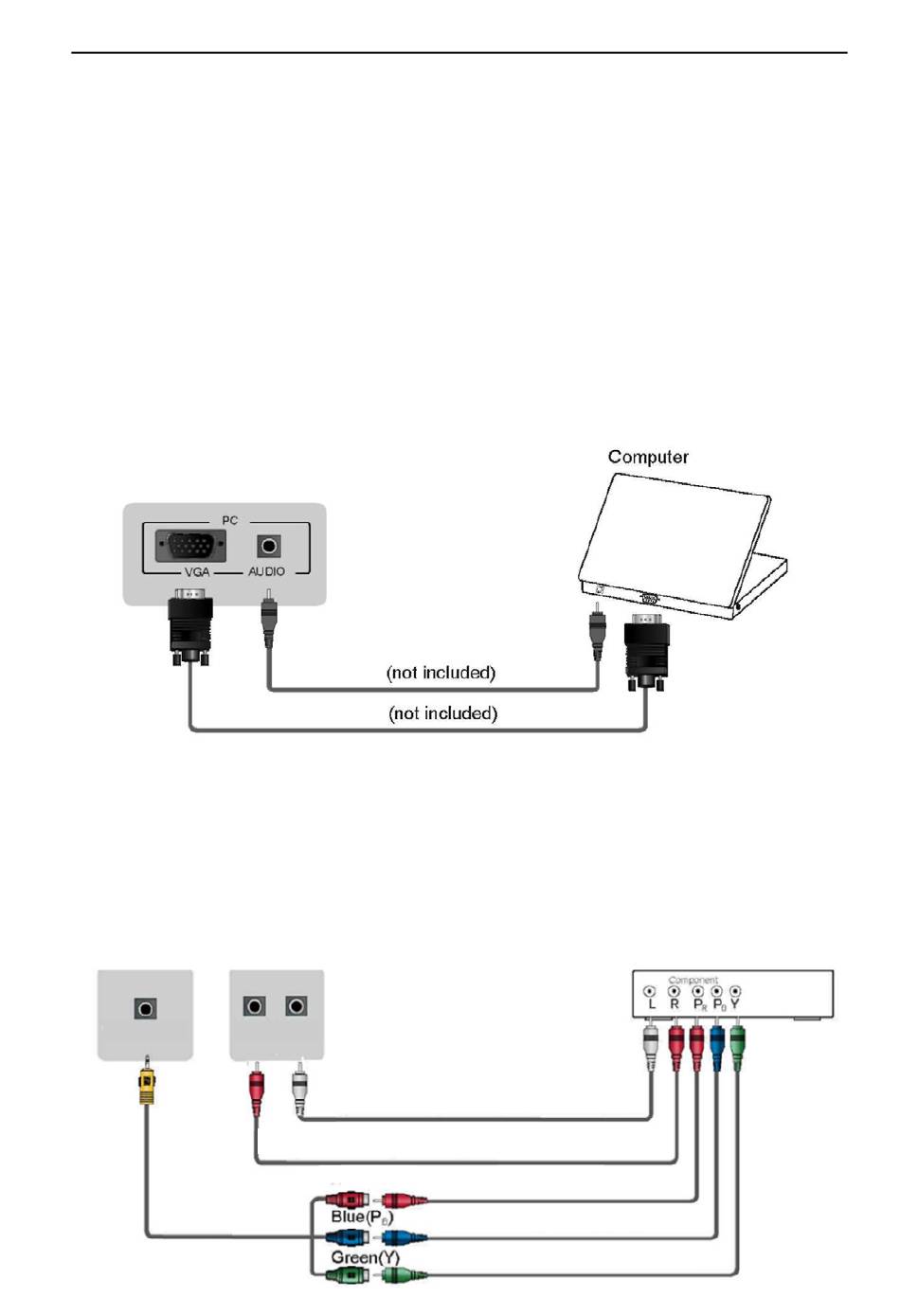

► VGA (PC) (49" model only)
Connect a VGA cable and an audio cable from the PC.
• Press [SOURCE] button, when the list of Input Source appears, press [▲/▼]
to select the source [PC] and press [OK] to connect.
► YPbPr IN
Connect a component cable and an audio cable from an external A/V Device.
The component output ports Y, PB and PR on the VCD or DVD can sometimes
be identified as Y, CB and CR.
Press [SOURCE] button, when the list of Input Source appears, press [▲/▼]
to select the source [YPbPr] and press [OK] to connect.
MINI YPbPr R L
RCA Coax Cable (Not included)
White (L) - Audio
Red (R) - Audio
Red (Pr)
17
