Page 3
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 HE863-NAD INTERFACE 3990250799 HE863 HE863-NAR INTERFACE 3990250800 HE863 HE863-NAG INTERFACE 3990250801 HE863 HE863-AUR INTERFACE 3990250803 HE863 HE863-AUG INTERFACE 3990250804 HE863 HE910 INTERFACE 3990250845 HE910 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 3 of 149 Arrow.com.
Page 4
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
Page 5
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 supplied SW, except for the normal non-exclusive, royalty free license to use that arises by operation of law in the sale of a product. Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.

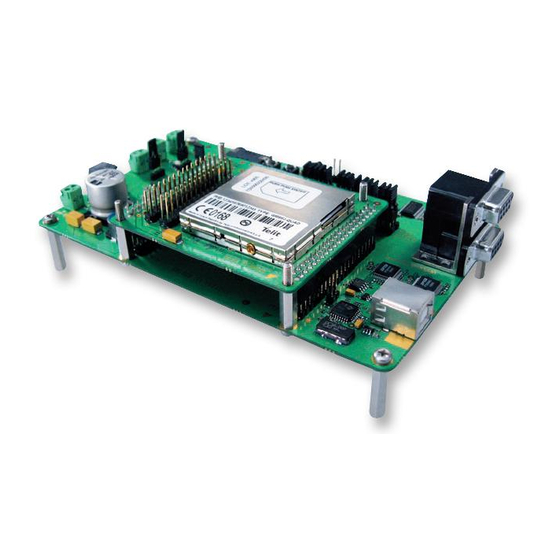

1.1. Scope The Aim of this document is the handling description of the developer’s Evaluation KIT second edition, a laboratory tool named EVK2. 1.2. Audience All given information shall be used as a guide and a starting point for properly developing of your product.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 1.6. Content of the kit Please check out the content of your EVK2 kit; if any of the items is missing, please contact your supplier. Description Quantity EVK2 MOTHERBOARD INFORMATION NOTE 2 PIN JUMPER FEMALE CONN ASSEMBLED USB A-B CABLE RED &...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Description The motherboard CS1139B can be split into several functional blocks depending on the implemented function; the following drawings show a block diagram and the displacement of the main blocks on motherboard. AUDIO 1...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 2.2. Mechanical characteristics of the assembled PCBs 2.2.1. Mother Board CS1139B Length 100 mm (max 102,6 mm) Width 160 mm (max 166,10mm) Height 47,6 mm (included the support with columns) Weight 200 gr (without any interface) 2.2.2.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 2.2.6. GC864 Interface CS1203B Length 66,04 mm Width 78,74 mm Height 21,00 mm Weight gr (without the module) 2.2.7. GC864-C2 Interface CS1231X Length 50,00 mm Width 33,00 mm Height 5,60 mm Weight 13,8 gr (with module) 2.2.8.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 2.2.12. UC864-CC864 Interface KS0101C Length 102,00 mm Width 67,50 mm Height 20,80 mm Weight 55 gr (without module) 2.2.13. HE910 Interface CS1467C Length 107,00 mm Width 102,00 mm Height 25,00 mm NOTE: The overall height for every combination (mother board + interface board) is still the height of the mother board Reproduction forbidden without Telit Communications S.p.A.
NOTE: When you use USB port, it is very important to respect the following sequences: Start: first turning ON the EVK2 and then connecting it to the PC Stop: first disconnecting the PC and then turning OFF the EVK2 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 20 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Insertion of the Interface Boards Every Interface Board must be inserted on CS1139B paying great attention to match the position of the main connectors; this has been made easy: optically by a triangle drawn on both printed circuits (except CS1231X) ;...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Power supply setting The EVK2 could be powered by different external sources, only one at time. The requested setting is made inserting the proper jumper connectors in the right position as described in the following paragraphs.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 5.2. Variable DC source Connect a + 5÷40 V / 1A variable DC source to PL102 (by wires) or to SO101 (by coaxial plug), with care to the polarities. Short pin1& pin2-PL104 and pin1& pin2-PL105 by inserting 2 contacts jumper connectors.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 5.2.1. Coaxial Plug The figure 7 shows the connections of the Power Plug of left part of figure 6. inner contact outer contact powerjck.skd Figure 7: Coaxial “Power Plug” connection. 5.3. Li-Ion Battery pack and Charger Connect a Li-Ion battery pack to PL107 with care to the polarity then short pin 2&...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 5.4. Application Notes 5.4.1. Li-Ion Battery Pack The 3.7V Li-Ion rechargeable Battery Pack should be connected directly to PL107 connector. Remember to use the connection cables as short as possible, with the appropriate conductors gauge and the other attributes, such as device power budget and cable flexibility, in order to match the specified voltage drop (especially during the high current absorption periods).
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Serial interface The following figure shows the architecture of the serial ports. SO301 Upper U303 AT commands PROGRAM on/off 3V LDO U506 +3,7V U304 SO301 NMEA (GM862-GPS) Lower SO301 U503 USB(0) Port B (0)
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 6.1. Serial Port Setup Communications between your application and the Telit modules are allowed connecting the DTE to the Asynchronous Serial Interfaces of Base-Band Chip, ASC0 and ASC1, through the stacked standard RS232 communications port (double 9 way D-socket connector at slow data rates of RS232 protocol) or a standard USB-B Series receptacle (at higher data rates of USB1.1 specification through a CMOS HUB that realizes a multiple attachment point...
The Base Band chip of the Telit’s modules provides one or two (depends of model) audio paths both in receive and in transmit sections, which could be active only one at time. To turn on your well-suited section on EVK2, please refer to “AF Amplifiers Setting “paragraph and followings.
Actual The HS and HF definitions have been kept in the Software and on the schematics of the Telit modules, but with EVK2 we will refer to Audio1 and Audio2 section instead of Handset and Handsfree respectively, remembering that: they can have fully equivalent electrical performances (like the two microphone amplifiers)
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 7.3.2. Benefits and disadvantages Differential amplifiers are desirable to use, especially in audio applications where signal levels are very low such as those from microphones. Classically, the benefits obtained from differential amplification are: Increase of Common Mode Rejection Ratio (CMRR) Differential inputs enable cancellation of any noise common on both inputs.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 7.3.3. Settings Connecting your accessories to SO401 in/out connector, you will implement Single Ended Input/Output configurations. Removing all 2 contacts jumpers inserted between PL402&PL403 or PL403&PL404, the in/out lines of our modules will be directly available on PL402 and PL404 connectors.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 AF Amplifiers Setting The Base Band Processor Audio Amplifiers selection is made short-circuiting PL403&PL402 (RX Amplifier 1) or PL403&PL404 (RX Amplifier 2). In such a way you could verify the complete performance of both audio paths.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Audio outputs The EVK2 output audio signals could be drive a device connected to SO401 ( LOW AF POWER ) or to PL401 ( mode HIGH AF POWER mode 9.1. Low AF Power Mode...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 9.2. High AF Power Mode Connecting an 8 ohm Speaker to PL401 by a 2 contacts female connector, you could drive it through the 500mW Power Amplifier. In this case the Speaker will be driven in fully differential configuration, with no side connected to ground and without any output coupling capacitor.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 9.2.1. Speaker and Stand-alone Microphone If you are using a Speaker, you can connect a stand-alone electrete microphone by a coaxial 2,5mm plug to SO401, respecting the following pin-out. 1= MIC + 2= N.C.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 9.2.2. Speaker plus Headset If you have chosen to connect the Speaker to HIGH AF POWER output, without having a stand-alone electret microphone, it is also possible to connect a standard off-the-shelf Headset to SO401 without any problem, as shown in the figure 18: the AF output signal will be heard on both Speaker and Earpiece.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Audio Accessories The following tables show the suggested specification to obtain the best performance from off- the-shelf accessories. 10.1. Headset Nominal sensitivity -45dBV /1Pa (+/- 3dB) Line coupling Nominal Voltage Range of Using Voltage (1÷10)V...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 10.2. Stand-alone microphone Nominal sensitivity -45dBV /1Pa (+/- 3dB) Line coupling Nominal Voltage Range of Using Voltage (1÷10)V (150÷500 ) μA Consumption Current Impedance 2,2KΩ Signal to Noise Ratio 56dB /1KHz/1Pa /A curve...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Indication and services 11.1. Optical Indicators 11.1.1. Status Led It is a debug aid that shows information on the network service availability and Call status. LED status Device Status Permanently off Device off...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 11.1.2. CHARGE Led A yellow LED is used as Charge In Act Indicator, as explained in the following table. CHARGE LED Meaning Always on Start Charge/ Hugh current Charge in act Always off...
You turn On/Off or Reset the EVK2 by 2 push buttons. 11.2.1. POWER ON Switch Pressing for at least 2 seconds the Power ON SWITCH, you turn On/Off the whole EVK2 and the Telit module in use: the STAT_LED starts to slowly blink ( ) or stops to blink...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Connectors pinout 12.1. Motherboard to Module The connections between CS1139B and every Telit module Interface Board are made through two 40 pin male connectors. Theirs pin functions are listed in the following tables.
Page 43
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 EAR_MT+ AC Out Voltage Audio DC voltage INT/EXT Switching MIC_HF- AC In Voltage Audio MIC_MT+ AC In Voltage Audio MIC_HF+ AC In Voltage Audio MIC_MT- AC In Voltage Audio DC voltage Power DC voltage...
Page 44
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 SIMVCC DC voltage SIM Power SIMIN DC voltage SIM inside detector DC voltage Power DC voltage Power DC voltage Power Table 9: PL202-CS1139B Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 44 of 149 Arrow.com.
13.1. Generality You can use your EVK2 with see APPLICABILITY LIST Telit modules fitted on its own Interface Board; all connections are made through 2x40 contacts connectors. It’s possible to use these Interface Boards also in stand-alone mode, inserting the “not mounted”...
No settings are needed. Figure 23. GM862 Interface Board 14.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: RESET Button ON Button; STATUS LED and its load resistance.
Telit extension boards, measurements equipment or other tools 2 female connectors (40 pins each one: SO101, SO102), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines). 14.3. Content of the kit Please check out the contents of your interface kit;...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 GE863 Interface This board allows easily interfacing the GE863 modules with the EVK2 and testing their functionalities; Figure 24. GE863 Interface Boards: GE863-QUAD or GE863-SIM (at left) and GE863-GPS (at right) 15.1. Stand-alone setup...
2 male connectors (4 pins each one: PL101, PL102) to select the Serial port configuration 2 female connectors (40 pins each one: SO101, SO106) to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines) 2 male connectors (30 pins each one: PL103, PL104), on which it is possible to connect external devices like user’s application, Telit extension boards, measurements equipment or...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 GPS RF connector (SMA Female) USB B-type connector and its circuitry (see schematic 30276SE11151A) SO103 SO104 SO201 ge863gps.skd Figure 25: Connectors displacement on GE863-GPS 15.5. USB connector The USB interface provides 2 serial ports that are related to the NMEA serial port and SIRF- Binary serial port of GE863-GPS module.
GE863-PY/QUAD The 2 contacts jumpers have to be fitted between pin1&pin2 of PL101-PL102 connectors. This carries out the Python Debug Port on Trace Port of EVK2. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 51 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 PL103 PL104 1151_3a.skd Figure 27: Jumpers setting for GE863-PY/QUAD 15.6.2. GE863 – GPS The 2 contacts jumpers have to be fitted between pin2&pin3 or pin3&pin4 of PL101-PL102 connectors. “CONTROLLED MODE” This set the SIRF Binary to serial port of the modem. (Typical application Design)
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 “SEPARATED SERIAL PORT” This set the SIRF Binary available on the USB connector. PL103 PL104 1151_3c.skd Figure 29: Jumpers setting for SIRF BINARY port available on USB connector NOTE: In this configuration soma AT GPS commands are not available. Refer to AT Commands Reference User Guide.
This board allows easily interfacing the GE864 modules with the EVK2 and testing their functionalities; No settings are needed. Figure 30. GE864 Interface Board 16.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: the SIMCARD Holder; ...
Telit extension boards, measurements equipment or other tools; 2 female connectors (40 PTH pins each one: SO101, SO102), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 16.3. Content of the kit Please check out the contents of your interface kit;...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 GE864-GPS Interface This board allows testing the functionalities and performance of the GE864-GPS module. Figure 31. GE864-GPS Interface Board 17.1. Part numbering This board comes in three different configurations, each characterized by its own part number, depending on the module it contains.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 The interface can be used without the EVK2, in this case the following components have to be soldered on the board: the GSM-RESET button the GSM-ON button the STATUS led and its load resistor.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 17.5. Power supply The module (but not the whole interface) receives its power supply from PL105: this jumper must always be plugged in, except when a series measurement instrument is needed. Figure 32. Jumper for VBATT.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 33. Jumper on PL104. 17.7. Serial port configuration By means of proper jumper connections on PL201, three different configurations for serial outputs can be selected. These configurations are mutually exclusive. Figure 34. GE864-GPS Interface Board serial connections Reproduction forbidden without Telit Communications S.p.A.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 17.7.1. ASC1 to RS-232 This configuration connects the ASC1 UART to the Trace serial connector of the EVK2. Figure 35. ASC1 to RS-232 (Trace) configuration 17.7.2. GPS to ASC1 (internal host controlling configuration) This configuration directly connects the host GSM module to the GPS receiver, thus setting the GPS receiver in Controlled Mode.
Figure 37, i.e. connecting the NMEA line with the RS-232, and at the same time setting the EVK2 serial line on USB Mode, as shown in Paragraph 7.1 of this document. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 61 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 17.8. GPIO settings The interface allows choosing among different options for driving the GPS control signals: Using the GPIOs of the GSM module Using an external host Manually controlling the signals by plugging a jumper.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 39. Settings for PL101 and PL102: internal host, cs1439b and cs1439b-B Note that jumper settings are detailed in the pictures above. The signal connected to pin10 of PL102 is no longer available, and it is recommended to tie it to ground by plugging a jumper between pin10 &...
Page 64
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 40. Settings for PL101 and PL102: external host, cs1439b-A. Figure 41. Settings for PL101 and PL102: external host, cs1439b and cs1439b-B. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 64 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 17.9. Antenna connectors 17.9.1. GSM antenna connector A GSM antenna must be connected to SO105. 17.9.2. GPS antenna connector A GPS antenna must be connected to SO103. WARNING: Don’t connect a GSM antenna on this connector Reproduction forbidden without Telit Communications S.p.A.
Telit guidelines. Fig.38. GE865/SE867-AGPS Interface Board 18.1. Stand-alone setup The interface can be used without the EVK2, in this case the following components have to be soldered on the board: the RESET button the ON button the STATUS led and its load resistor.
2 female connectors (40 PTH pins each one: SO101 and SO104), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines) 1 male connector (5 PTH pins: PL104), which makes available in one place all GPIOs...
This configuration is achieved by plugging a female jumper connector on pin1 & pin2 of both PL201 and PL206. It allows to connect the GE865 UART with SE867-AGPS UART, thereby putting the board in the so-called controlled mode. No connection with the EVK2 RS-232 Trace is present.
GSM to Trace This configuration is realized by plugging a female jumper connector on pin2 & pin3 of both PL201 and PL206. It allows redirecting the GE865 UART to the EVK2 RS-232 Trace. No connection with the SE867 UART is present.
GPS to Trace(external host controlling configuration) This configuration is achieved by plugging two female jumper connectors on PL202 and PL207. It allows redirecting the SE867 UART to the EVK2 RS-232 Trace. No connection with the GE865 UART is present. Figure 45. Jumpers in GPS to Trace configuration.
Telit guidelines. Figure 46.GE865/JF2 Interface Board. 19.1. Stand-alone setup The interface can be used without EVK2 and in this case the following components have to be soldered to the board: - RESET button - GSM ON/OFF button - GSM STATUS led and its load resistor Reproduction forbidden without Telit Communications S.p.A.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 47.Jumper for VBATT. 19.5. GPS external LNA enable signal The module contains an internal LNA for the GPS antenna. The user can though decide to use an external LNA: this option is selected by means of a software command, which puts the internal LNA in a low gain mode and provides an additional signal to enable the external LNA.
Page 74
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 EXTERNAL LNA CONTROLLED BY ENABLE SIGNAL EXTERNAL LNA ALWAYS ON Figure 48.Jumper selection on PL202. In order to use the External LNA controlled by the GE865 signal the user musts insert a jumper in pins 14-16 of PL301.
Figure 49.GE865-JF2 Interface Board serial connections 19.7. GSM to Trace This configuration connects the GSM to the RS232 serial connector of the EVK2. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 75 of 149 Arrow.com.
Figure 50.GSM to RS-232 (Trace) configuration 19.8. GPS to Trace This configuration allows sending the GPS output to the Trace serial connector of EVK2 by means of transceivers. Figure 51.GPS to RS232 (Trace) Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 76 of 149 Arrow.com.
19.10. GPS to USB The NMEA sentences can be redirected to the EVK2’s USB port by setting the PL303 as explained in the Figure 53, i.e. connecting the NMEA line with the RS-232, and at the same time setting the EVK2 serial line on USB mode, as showed in Paragraph 7.1 of this document.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 19.11. GPS to GSM (internal host controlling configuration) This configuration directly connects the host GSM module to the GPS receiver, thus setting the GPS receiver in Controlled Mode. Figure 54.GPS to GSM configuration 19.12.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 55.Settings for PL301 and PL302: internal host controlling 19.12.2. External host controlling configuration The following settings on PL301 and PL302 allow selecting the external host configuration. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 79 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 56.Settings for PL301 and PL302: external host. 19.13. GPS serial interface setting GPS module has the capability to operate in serial UART mode, SPI mode or I2C mode depending upon how the JF2 GPIO6 and GPIO7 pins are strapped at power up. In the table below is shown the configuration set in PL302 to select the type of serial interface: Reproduction forbidden without Telit Communications S.p.A.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 MODE GPS GPIO n.6 GPS GPIO n.7 UART 1-2 pins shorted in PL302 Float Float 15-16 pins shorted in PL302 Float Float Table 21 If you connect JF2 module with GE865 module you must use UART configuration.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 19.16.2. GPS antenna connector A GPS antenna must be connected to SO201. WARNING: Don’t connect a GSM antenna on the GPS antenna connector Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 82 of 149 Arrow.com.
No settings are needed. Figure 57. GC864 Interface Board 20.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount also: the SIMCARD Holder; the RESET Button the ON Button; the STATUS LED and its load resistance.
Telit extension boards, measurements equipment or other tools 2 female connectors (40 PTH pins each one: SO101, SO102), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines). 20.3. Content of the kit Please check out the contents of your interface kit;...
No settings are needed. Figure 58. GC864-C2 Interface Board 21.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: the SIMCARD Holder ; the ON Button ;...
Telit extension boards, measurements equipment or other tools; 2 female connectors (40 PTH pins each one: SO101, SO104), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 21.3. Content of the kit Please check out the contents of your interface kit;...
No settings are needed. Figure 59. GE864 Interface Board 22.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: the RESET Button the ON Button; the STATUS LED and its load resistance.
Telit extension boards, measurements equipment or other tools; 2 female connectors (40 PTH pins each one: SO101, SO102), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 22.3. Content of the kit Please check out the contents of your interface kit;...
No settings are needed. Figure 60. GL865 Interface Board 23.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: the RESET Button the ON Button; the STATUS LED and its load resistance.
Telit extension boards, measurements equipment or other tools; 2 female connectors (40 PTH pins each one: SO101, SO102), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 23.3. Content of the kit Please check out the contents of your interface kit;...
For more information please refer to 1vv0300771 (UC864/CC864 Interface Board User Guide) Figure 61. UC864 Interface Board 24.1. Stand-alone setup If you need to use the interface out of EVK2 (Stand-alone setup) you have to mount the following missing components: the RESET Button the ON Button;...
(40 PTH pins each one: CON102, CON103), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 2 USB connectors (selectable by Jumper Setting) For additional details on the connections and the possible Jumper settings please refer to the Interface board User guide (1vv0300771) 24.3.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 HE910 family Interface This board allows easily interfacing the HE910 modules with the EVK2 and testing their functionalities; No settings are needed. Figure HE910 Interface Board 25.1. Stand-alone setup The Jumper setting and the assembled components are ready permitting the standalone use.
2 female connectors (40 PTH pins each one: SO101, SO104), to connect the interface to the EVK2 mother board circuits (power supply lines, serial in/out lines, audio in/out lines); 1 USB connector (SO202) related to the HE910 USB 2.0 port.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 25.3. Antenna connectors 25.3.1. GSM/UMTS Antenna connector A GSM/UMTS compatible antenna (Refer to the product’s HW user guide) antenna must be connected to SO103. 25.3.2. Receiver Diversity Antenna connector A GSM/UMTS compatible antenna (Refer to the product’s HW user guide) antenna could be connected to SO105.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 25.4. Expansion Connectors 25.4.1. PL301/PL302 The connectors are carrying the following signals: PL301 Pin# Pin Name Description STAT_LED Status Led RESERVED C125/RING C107/DSR C109/DCD RESERVED PL302 Pin# Pin Name Description GPIO_01 Default function is Status Led...
Page 97
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 PL303 Pin# Pin Name Description TX_AUX Auxiliary serial port (TX) RX_AUX Auxiliary serial port (RX) SPI_CLK SPI_MRDY SPI_SRDY GPIO_08 GPIO_09 GPIO_10 RESERVED PL304 Pin# Pin Name Description TX_AUX Jumper to EVK2 RX_AUX Jumper to EVK2...
The 2 Buttons present on the Interface should be used to control the Power ON and RESET lines of the module. The 2 Buttons on the EVK2 could not be used with the HE910 Interface. 25.5. Content of the kit Please check out the contents of your interface kit;...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 GPIO ports A certain number of GPIO ports (General Purpose Input/Output) are available on every Telit Module Interface Board, giving you the possibility to drive digital devices and report their own status. Some of these ports are dedicated. Refer to Telit Product Description and Telit Hardware User Guide to have all information about characteristics of every GPIO port.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1. GPIO location 26.1.1. GM862 Interface (Refer to schematic diagram 30276SE11150B) Figure 63: Position of GPIO ports on GM862 interface Note on GM862-GPS version Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 100 of 149 Arrow.com.
Page 101
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 If you use this interface in conjunction with GM862-GPS version be careful that the following two pins of SO101 connector assume different functions, and precisely: Pin 2 = TX_GPS Pin 3 = RX_GPS Reproduction forbidden without Telit Communications S.p.A.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1.2. GE863-GPS Interface (Refer to schematic diagram 30276SE11151A) Figure 64: Position of GPIO ports on GE863-GPS interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 102 of 149 Arrow.com.
Page 103
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Note on p/n 3990250684 and p/n 3990250685 GE863 (Refer to schematic diagrams 30276SE11151A-C, 30276SE11151A-D) If you use these interfaces the following two pins of PL104 connector assume different functions, and precisely: Pin 20 = ADC_IN2 Pin 21 = ADC_IN3 Pin 26 = N.C...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 66: Position of GPIO ports on GE864 interface 26.1.5. GE864-GPS Interface (p/n 3990250822) (Refer to schematic diagram 30373SE11439b) Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 105 of 149 Arrow.com.
Page 106
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Figure 67: Position of GPIO ports on GE864-GPS interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 106 of 149 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1.6. GE865/SE867-AGPS Interface (p/n 3990250814) (Refer to schematic diagram 30311SE11433) Figure 68: Position of GPIO ports on GE865/SE867-AGPS interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 107 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1.7. GC864 Interface (Refer to schematic diagram 30276SE111203B) Figure 69. Position of GPIO ports on GC864 interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 108 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1.8. GC864-C2 Interface (p/n 3990250683) (Refer to schematic diagram 30276SE11231X) Figure 70. Position of GPIO ports on GC864-C2 interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 109 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 26.1.10. HE910 Interface Figure 72. Position of GPIO on connectors of HE910 interface Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 111 of 149 Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Page 112
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 The connectors are carrying the following signals: Pin Name Pin/Connector GPIO_01 Pin 1 (PL302) GPIO_02 Pin 2 (PL302) GPIO_03 Pin 3 (PL302) GPIO_04 Pin 4 (PL302) GPIO_05 Pin 6 (PL102) GPIO_06 Pin 5 (PL302)
1vv0300704 Rev.13- 2012/06/25 SCHEMATICS In the following paragraphs the user can find the schematics related to all EVK2 boards, therefore to the Mother Board, to the Interface Boards and to the Extension Boards. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 113 of 149 Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 27.3. GE863 Interface Board Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 120 of 149 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Page 121
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 NOTE: This sheet is related only to GPS version. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 121 of 149 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Service and firmware update You can update the Telit Module firmware through the serial cables (RS232 or USB 1.1) used for the communication with a PC. The firmware update can be done with a specific software tool provided by Telit that runs on windows based PCs.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 SAFETY RECOMMENDATIONS READ CAREFULLY Be sure the use of this product is allowed in the country and in the environment required. The use of this product may be dangerous and has to be avoided in the following areas:...
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 The text of the Directive 99/05 regarding telecommunication equipments is available, while the applicable Directives (Low Voltage and EMC) are available at: http://europa.eu.int/comm/enterprise/electr_equipment/index_en.htm 29.1. Disposal of this product in the European Union According to the directives 2002/95/CE, 2002/96/CE and 2003/108/CE, which have been transposed in Italian Legislative Decree of July 25, 2005, n.
Page 144
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Reference Directives and Laws 2002/95/EC Directive of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS)
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Disposal of old Electrical & Electronic Equipment (WEEE Mark) This symbol, applied on our products and/or on its packaging, indicates that this product should not be treated as household waste when you wish to dispose of it. Instead, it should be handed over to an applicable collection point for the recycling of electrical and electronic equipment.
Telit EVK2 User Guide 1vv0300704 Rev.13- 2012/06/25 Document History Revision Date Changes Rev 0 05/01/2006 First issue Rev 1 23/01/2006 Added PCB weight and dimensions pag.9 Added default setup pag.8 Correct mA/h with mAh pag.16 Unified the scripting “impedance coil” pag.19 and pag.20 Insert the power supply pag.7...
