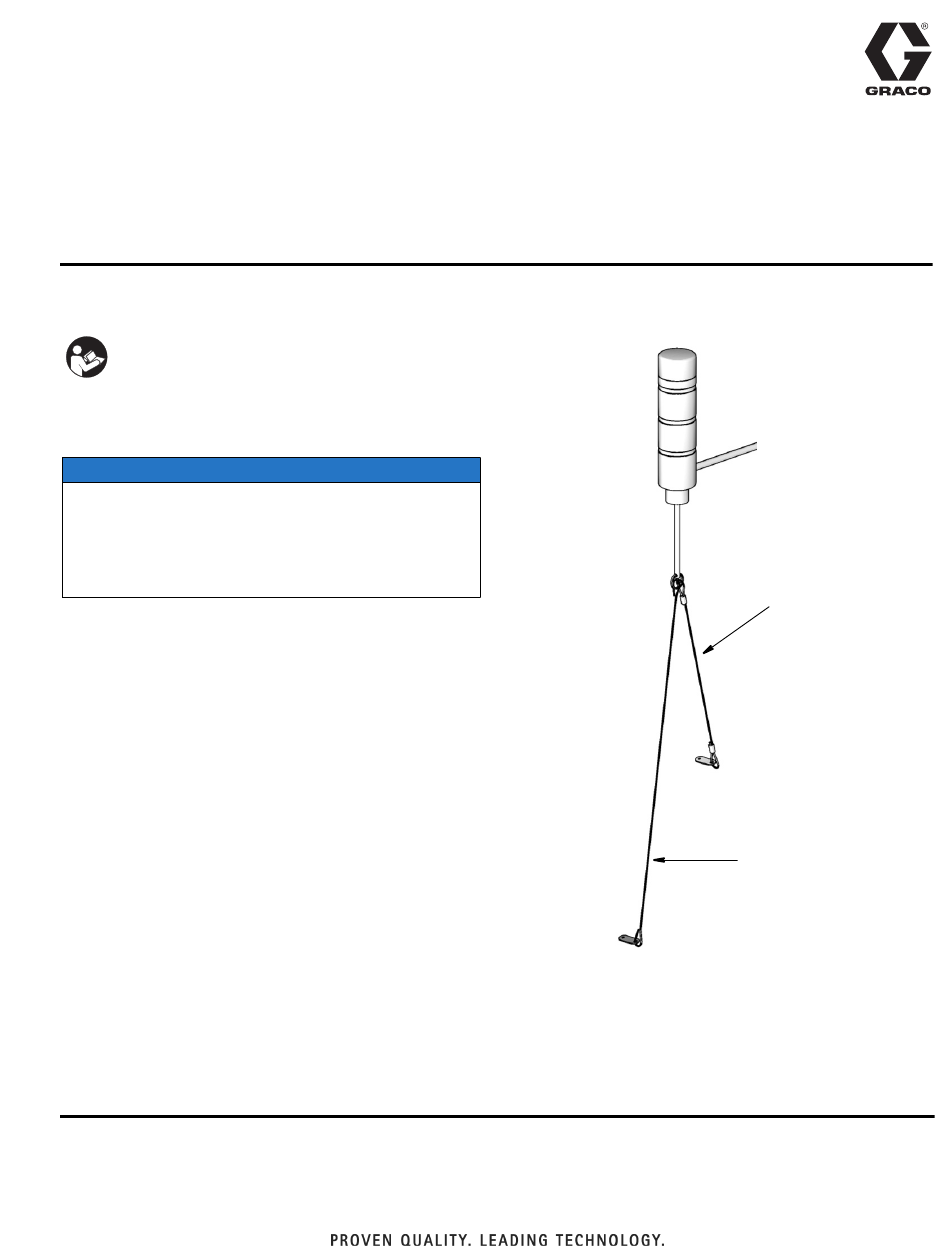

Instructions-Parts List
Level Indicator and
Follow Plate
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Part No.: 244023
NOTICE
Refer to description below to determine which lanyard
length to use for your pump module.
Remove and discard the lanyard length you are not using.
Failure to use the correct lanyard length on the level indi-
cator could result in inaccurate level indication and low
level shutdown.
Short Lanyard Part No. 121325
Used with:
247574, 247706: 60# 10:1 Dyna-Star
247575: 60# Reservoir
Long Lanyard Part No. 116123
Used with:
243159: 90# 5:1 Dyna-Star
241486: 90# Reservoir
241573: 90# 50:1 Fire-Ball
247444, 247707: 90# 10:1 Dyna-Star
Part No.: 241485
Follow Plate for 50:1 Fire-Ball
Part No.: 243191
Follow Plate for 5:1 Dyna-Star
Part No.: 247700
Follow Plate for 10:1 Dyna-Star
®
Pump Module
®
Pump Module
®
Pump Module
®
Pump Module
®
Pump Module 241571
®
Pump Module 243159
®
Pump Module 247444, 247574, 247706, 247707
309200D
Level Indicator
244023 Shown
121325
116123
TI1397a
EN
