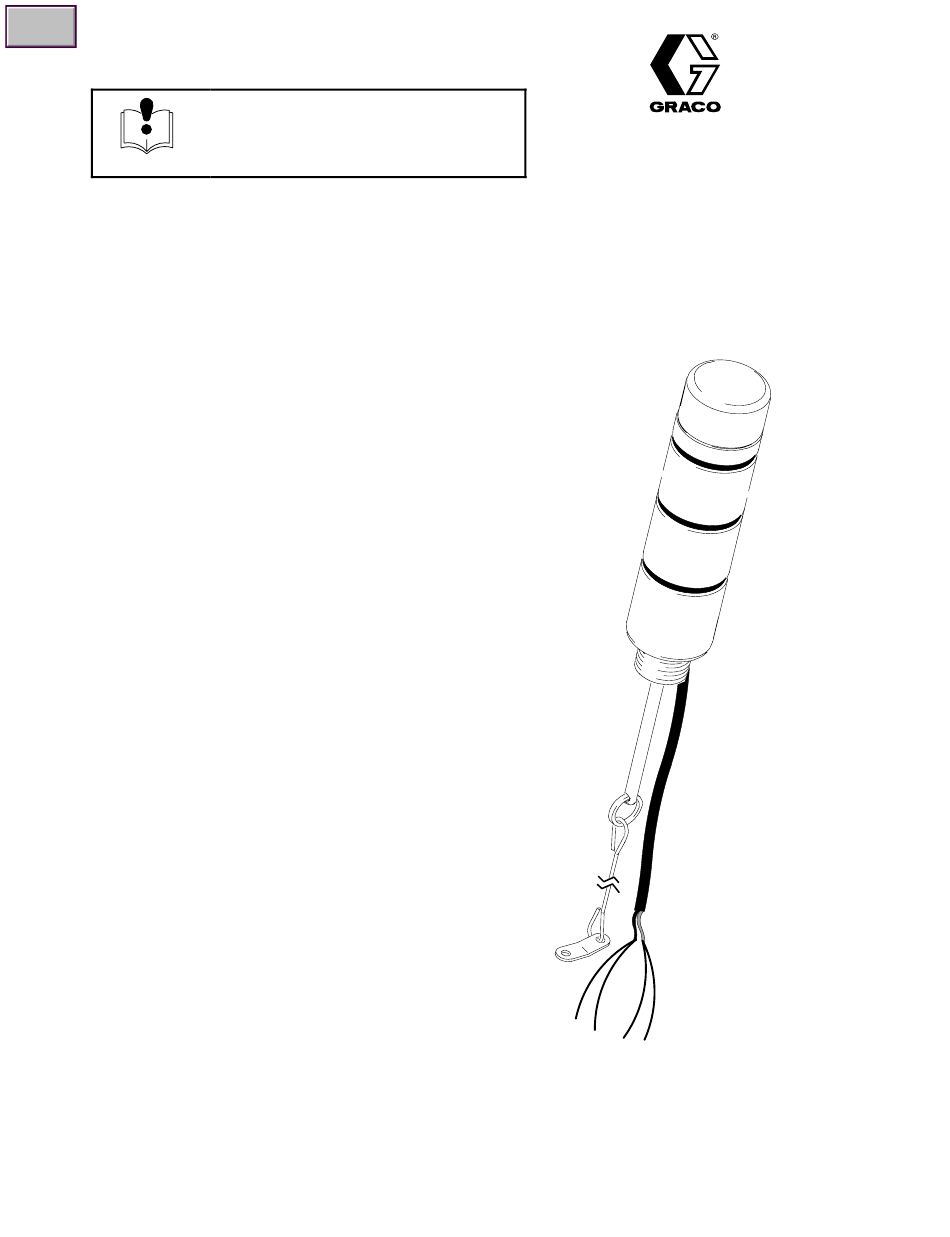

INSTRUCTIONS-PARTS LIST
INSTRUCTIONS
For Controlling and Monitoring Automatic Lubrication Systems

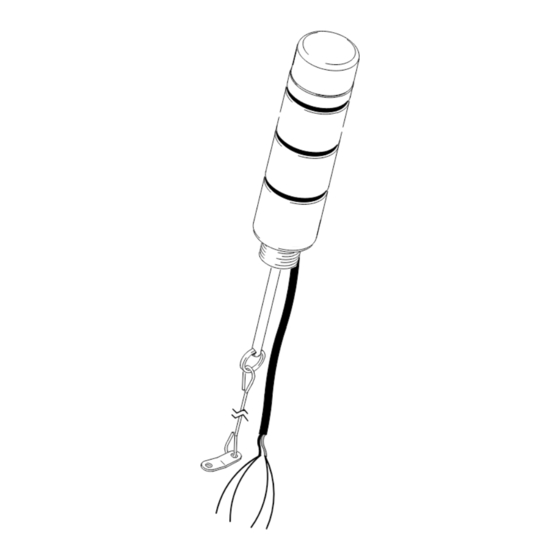

Level Indicator
Part No. 244023
The Level Indicator is designed to provide visual and
remote monitoring of the level of lubricant in Graco's
90# Automatic Lubrication Pump Modules.
Table of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Graco Inc. is registered to I.S. EN ISO 9001
2
3
5
6
7
7
8
8
ECOPYRIGHT 2000, GRACO INC.
309200
First choice when
quality counts.t
TI0437
Rev. A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Graco 244023
Summary of Contents for Graco 244023
- Page 1 For Controlling and Monitoring Automatic Lubrication Systems Level Indicator Part No. 244023 The Level Indicator is designed to provide visual and remote monitoring of the level of lubricant in Graco’s 90# Automatic Lubrication Pump Modules. Table of Contents Warnings ........
- Page 2 D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories. Modifying parts can cause a malfunction and result in serious bodily injury.
- Page 3 Installation Installing the Level Indicator CAUTION The Level Indicator is not designed to be operated in a caustic environment. NOTE: If retrofitting your lubrication system, prior to beginning installation you must verify that you have a reservoir cover (part #196804) that has a 3/4” npt fitting and a follower plate (part #243191 or #241485).
- Page 4 Installation Installing the external alarm or warning lights The level indicator comes with two sets of wires, see fig.3. One set of wires is shrink wrapped in red and one set in black. Both switches are normally open, voltage-free switches, and can be used as a switching device for activating an external alarm or light.
- Page 5 Operation Visual and remote indicator light Display CAUTION Do not overfill so that rod Full Level Mark extends past the full level mark. Full Level Range – rod in this range indicates reservoir is Normal Level Mark nearing full. Low Level Range – rod in CAUTION Low Level Mark this range indicates reservoir...
- Page 6 Parts TI0437 Model 244023 Part No. Description Part No. Description 116123 CABLE, linkage 116119 CLIP, retaining 116124 RING, split 244025 CAP, assembly 196894 SPRING, support 112948 SCREW, phillips pan HD 10–32x1/2” 244024 ROD, assembly 309200...
- Page 7 Technical Data Low level sensor switch ........Normally open sensor switch, closes upon low level High level sensor switch .
- Page 8 Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
