INSTALLATION INSTRUCTIONS
Model: TGWF500D

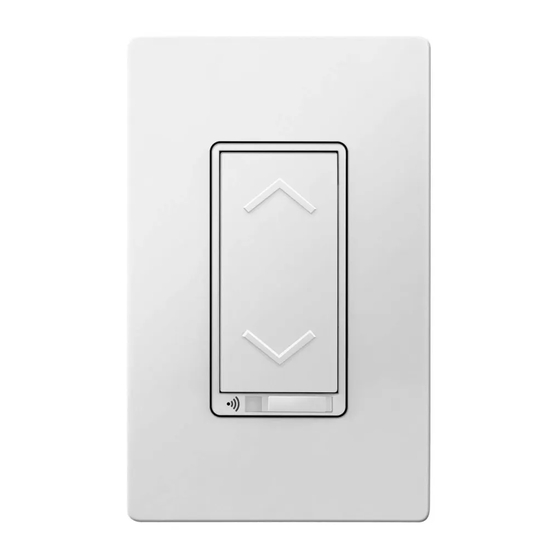

Wi-Fi Dimmer Switch

FEATURES

• Control your lights with your smart devices without the need of any hubs.
• Easy to configure, easy to use Smart App
• Save energy by automating the ON/OFF times or using the timer
• Compatible with Amazon Alexa, Google Assistant, Android, and iOS
(see system requirements below )

SPECIFICATIONS

Voltage ......................................................................................................120V~60Hz
Protocol..............................................................................................IEEE 802.1b/g/n
Wireless Type...................................................................................................2.4GHz
System Requirements.......................................Android 4.1 or higher/ iOS 8 or higher
Operating Temperature.................................................................32°-104°F (0°-40°C)
Incandescent........................................................................................................600W
CFL/LED/Self Ballasted..................................................................................2A 150W

REQUIREMENTS

• Wi-Fi Internet connection of 2.4GHz
• Smart Device such as a Smart Phone or Tablet with an operating
system of Android version 4.1 or higher or iOS 8 or higher
• Installation of the TOPGREENER Smart App on the Smart Device

WARNING

Turn the POWER OFF at the circuit breaker before installing the Dimmer
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only

WARRANTY

This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim.
ALL claims must be verified and approved by Top Greener, Inc. Warranties from other Top Greener products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction,
failure, or defect resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener shall not be liable to the purchaser or
end user customer of Top Greener products for direct, indirect, incidental, or consequential damages even if Top Greener has been advised of the possibility of such damages. Top Greener' total liability under this or
any other warranty, express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.

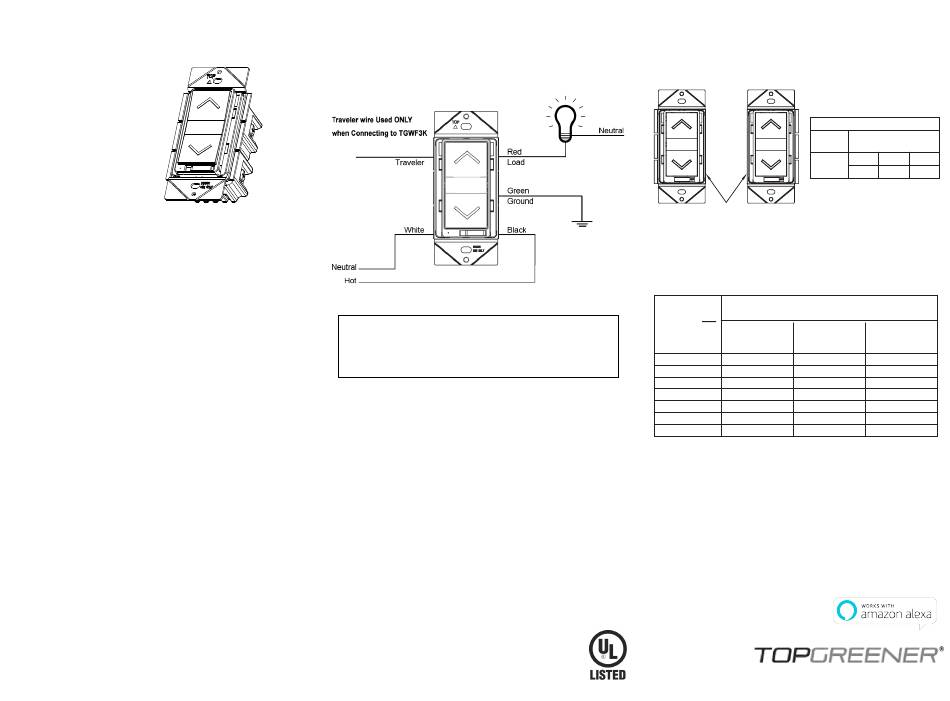

WIRING DIRECTIONS

First, find out if you will be controlling the lights from one location or
multiple locations. Next, identify all the wires. Once you've identified
the wires, follow the diagram below for wiring.
Single-Pole installation
Yellow
NOTE:
This device is not compatible with standard 3-way
nor 4-way switches. 3-way and 4-way switching requires the
TGWF3K auxiliary switch. For 3-Way or 4-way wiring, follow the
instruction on the TGWF3K auxiliary switch

FCC COMPLIANCE STATEMENT

FCC Grant of Equipment Authorizations of this device and transmitters installed in this device can be found at FCC website by entering the FCC ID number on the device.
Caution: Changes or modifications not expressly approved by the part responsible for compliance could void the user's right to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation of the device.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
•
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

MULTIGANG INSTALLATION

When installing more than one control in the same wall box, it may be necessary to
remove the side tabs before installing (see below). Using pliers, bend each tab back
and forth until they break off. Repeat for each tab to be removed. Removal of tabs WILL
REDUCE MAXIMUM LOAD CAPACITY.
Dimmable
LED/CFL
Tabs Removed for Multigang installation
When using the Dimmer to control LED/CFL lights in conjunction with another
Dimmer within the same wall box to control Incandescent /Halogen lights follow the De-
rating Chart below for Maximum Capacity on EACH device. If you are using ONLY
LED/CFL bulbs on ALL Dimmers, DO NOT USE this De-rating Chart. Follow the LED/
CFL De-rating Chart above.
Then the Maximum COMBINED Wattaged for the
If the combined
Incandescent/Halogen bulbs on EACH attached dimmer:
Wattage of ALL
If NO Tabs are If 1 side of Tabs
LED/CFL bulbs
removed then are removed then
on 1 dimmer is:
Max Wattage is: Max Wattage is:
0W 600W 500W
1-25W 500W 400W
26-50W 400W 300W
51-75W 300W 200W
76-100W 200W 100W
101-125W 100W 50W
126-150W 0W 0W
© 2018 TOPGREENER, Inc. ● CA, U.S.A. ● WWW.TOPGREENER.COM ● 0201180114-01
LED/CFL Derating Chart
Load Capacity when Tabs
are removed from:
0 Sides 1 Side 2 Sides
150W 150W 150W
If 2 sides of Tabs
are removed then
Max Wattage is:
400W
300W
200W
100W
50W
0W
0W
