Topgreener TGSFS3 Installation Instructions

INSTALLATION INSTRUCTIONS
Model: TGSFS3
Combination Light Switch
and 3 Speed Fan Control
*Single-Pole ONLY
*Requires separate load wires, each for fan & light
SPECIFICATIONS
Voltage...........................................................................................120VAC, 60Hz
Fan.................................................................................................................2.5A
Incandescent/ Halogen / LED / CFL............................................................720W
Switch...............................................................................................................6A
Wire Gauge..................................................................................#18 ~ #12 AWG
WARNING
Turn the power off at the circuit breaker before installing this device.
Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric Code and local regulations. It is
recommended that a qualified electrician performs this installation. Make sure to turn
off the circuit breaker or fuse(s) and make sure power is off before wiring the device.
Use copper wire only. No Aluminum.
INPUT: Use wires with minimum rating of 75° C (167° F)
WARRANTY
This device is warranted to be free of material and workmanship defects for 1 year from the date of purchase. Original receipt or proof of purchase from an authorized retailer must be presented upon warranty claim. ALL
claims must be verified and approved by Top Greener, Inc. Warranties from other TOPGREENER products may vary. This warranty is nontransferable and does not cover normal wear and tear or any malfunction, failure,
or defect resulting from misuse, abuse, neglect, alteration, modification, or improper installation. To the fullest extent permitted by the applicable state law, Top Greener, Inc. shall not be liable to the purchaser or end user
customer of TOPGREENER products for direct, indirect, incidental, or consequential damages even if Top Greener, Inc. has been advised of the possibility of such damages. Top Greener, Inc's total liability under this or
any other warranty, express or implied, is limited to repair, replacement or refund. Repair, replacement or refund are the sole and exclusive remedies for breach of warranty or any other legal theory.
WIRING DIRECTIONS
1. Remove the wall plate.
2. Remove existing switch from wall box and prior to disconnecting
wires, identify the wires and label as needed.
3. Remove wires from existing switch.

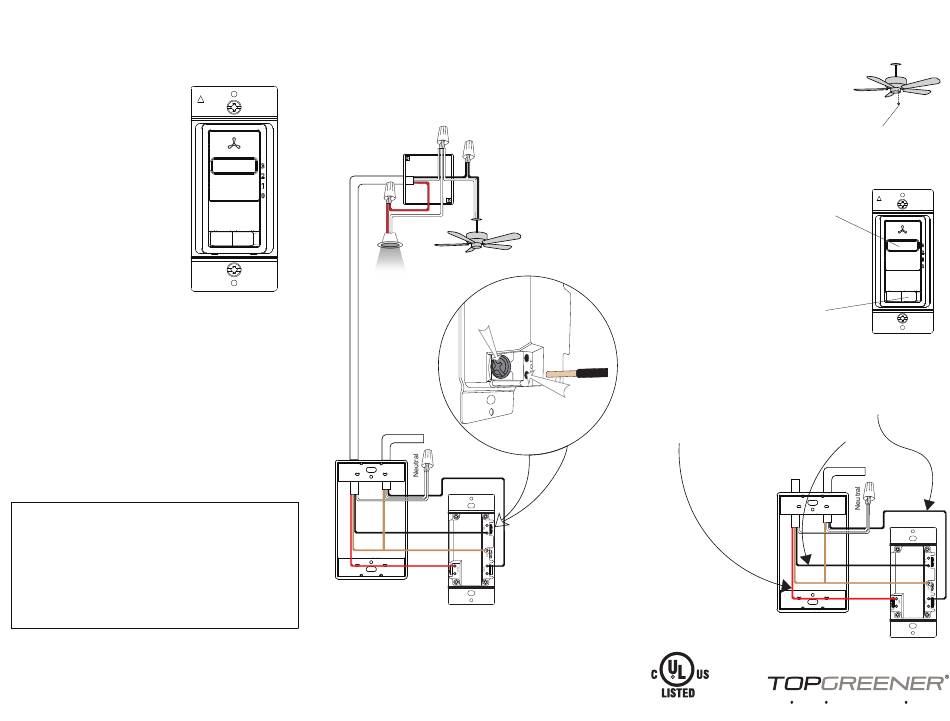

4. Follow the diagram below to connect the TGSFS3
2. Tighten
screw
Power
Fan
Ground
Light/Load
Hot
OPERATING INSTRUCTIONS
Before using this switch to control your fan,
be sure to first set the speed on the ceiling
fan to high. Some fan models may have a
pull string attached to its side or underside.
Please check the fan manufacturer's
instructions on how to change fan speed.
TGSFS3 fan speed
control replaces standard
on/off switches and does
not require other
The fan control is off when the slider
control modules.
is at the zero position. Then as you
slide it up through positions 1-3, the
fan speed increases from low to high.
The light switch at the bottom controls
the connected light/load.
IMPORTANT NOTICE
This is a SINGLE-POLE SWITCH
1. Insert
wire
You must have two load wires in the switch box and a HOT wire
in order to use this switch. One load wire goes to
the LIGHT and the other load wire goes to the FAN
Pull String
Fan Control
Light Switch
Power
Fan
Ground
Light/Load
