Topgreener TSOS5 User Manual

Safety Warning
please consult a certified electrician. To avoid electric shock, turn off the circuit
breaker before installation. Please follow the step by step guide to safely install the timer .
Notice
The product requires a
:
neutral wire
properly. Before
please double-check
neutral wire in the junction box.
The neutral wire is usually a
group of white wires.
have difficulty
neutral wire, please consult an
electrician. Please
white wire (neutral) on the sensor
can only be
the neutral wire in the junction
box. Never connect the white
wire on the
any other wire except
neutral. Mis-wiring may cause light flicker, sparks, or even fire.
INSTALLATION
1. Turn off power at the circuit breaker.
2. Remove the existing wall switch.
3. Identify each wire in your junction box. You need Hot, Neutral, Load and Ground to
finish installation. If your junction box only has 3 wires (Hot, Load and Ground), the
product will not work.

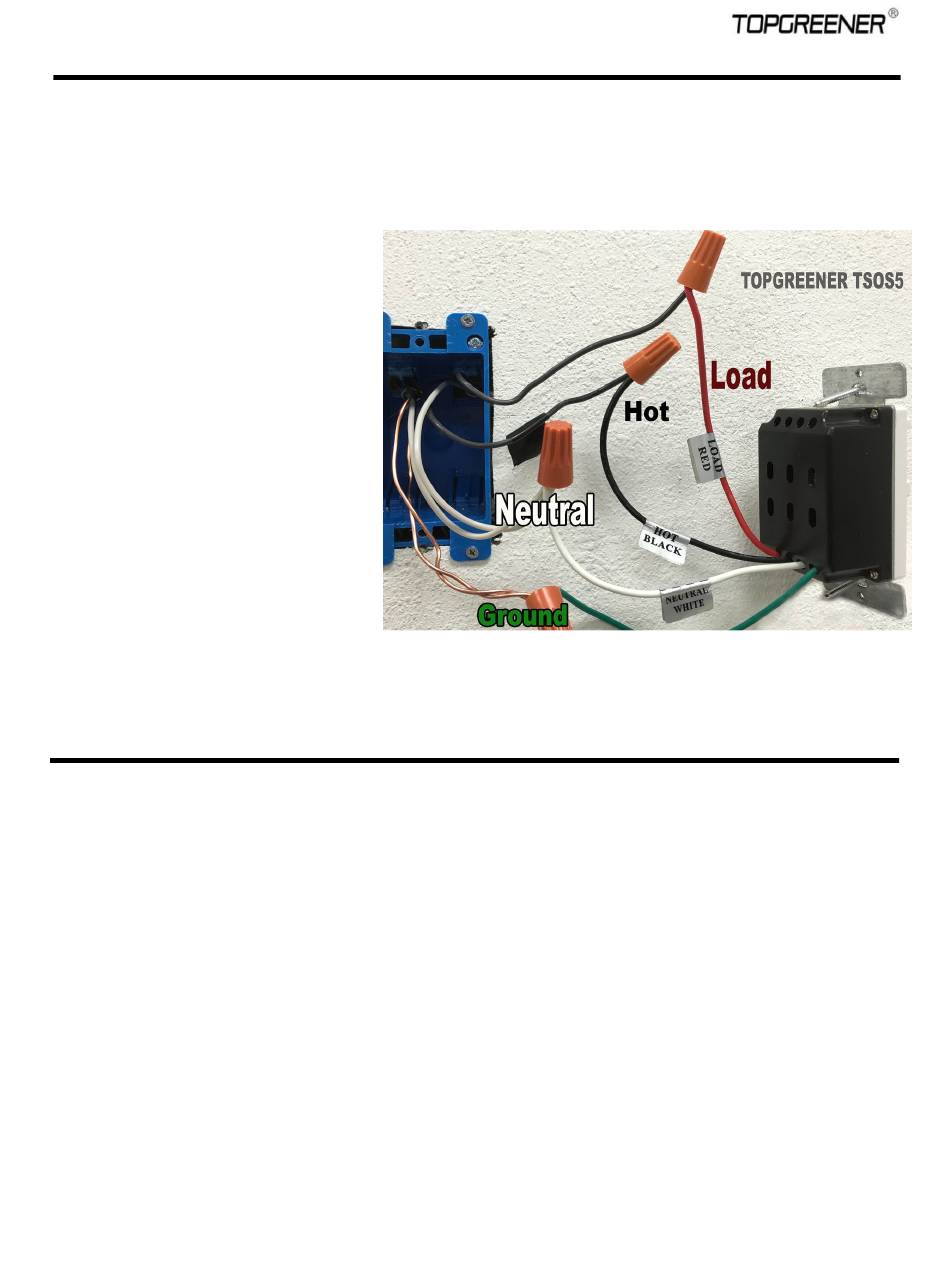

4. Connect the black wire (Hot) on the sensor to the Hot wire in the junction box.
Connect the white wire (Neutral) on the sensor to the Neutral wire in the junction box.
Connect the red wire (Load) on the sensor to the Load wire in the junction box.
Connect the green wire (Ground) on the sensor to the Ground wire in the junction box.
Note: Fasten the wire nuts to make sure wires are securely connected.
5. Tuck the wires into the junction box and leave room for the sensor.
6. Mount the sensor to the junction box and install the wall plate.
7. Restore power at the circuit breaker.
If you have any questions, you can call us at 844-390-2568, from 8:00AM-4:30PM (PST), Monday-Friday.
