INSTALLATION INSTRUCTIONS

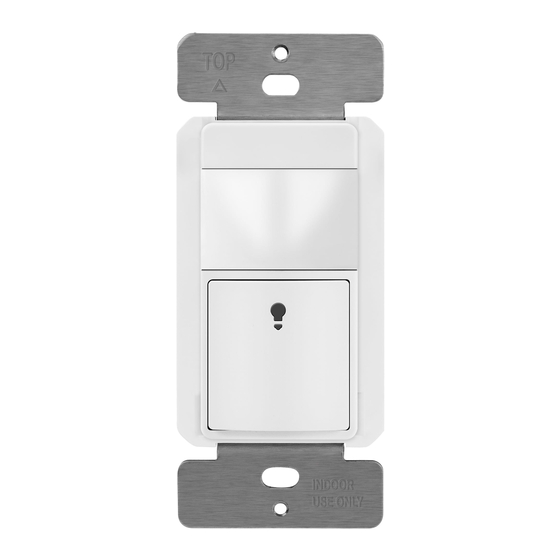

Model: TDOS5-JM
Occupancy/ Vacancy
CDS Sensor Switch
FEATURES
The sensor switch can automatically turn a load on (or manually be turned on) and stay
on as long as the sensor detects occupancy. After no motion is detected within the
selected time delay, the load turns off automatically. This device features a learning
capability; it will learn your on/off habits based on your usage during different ambient
light levels, then automatically operate the lights based on the usage patterns.
SPECIFICATIONS
Voltage ...................................................................................120V, 60Hz
Tungsten.........................................................................................1800W
Resistive..............................................................................................10A
Electronic Ballast ..................................................................................5A
Motor ............................................................................................. 1/6Hp
Time Delay......................................................................15Sec to 30Mins
Operation Temperature................................ 32° F--104° F(0 °C to 40 °C)
PIR Coverage.........................1200 sq.ft. (up to 40' in front of the sensor)
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Sensor Switch.
Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric Code and local regulations. It is
recommended that a qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
1
WIRING DIRECTIONS:
1. Remove the wall plate.
2. Remove existing switch from wall box and prior to disconnecting wires,
identify the wires and label as needed.
3. Remove wires from existing switch.

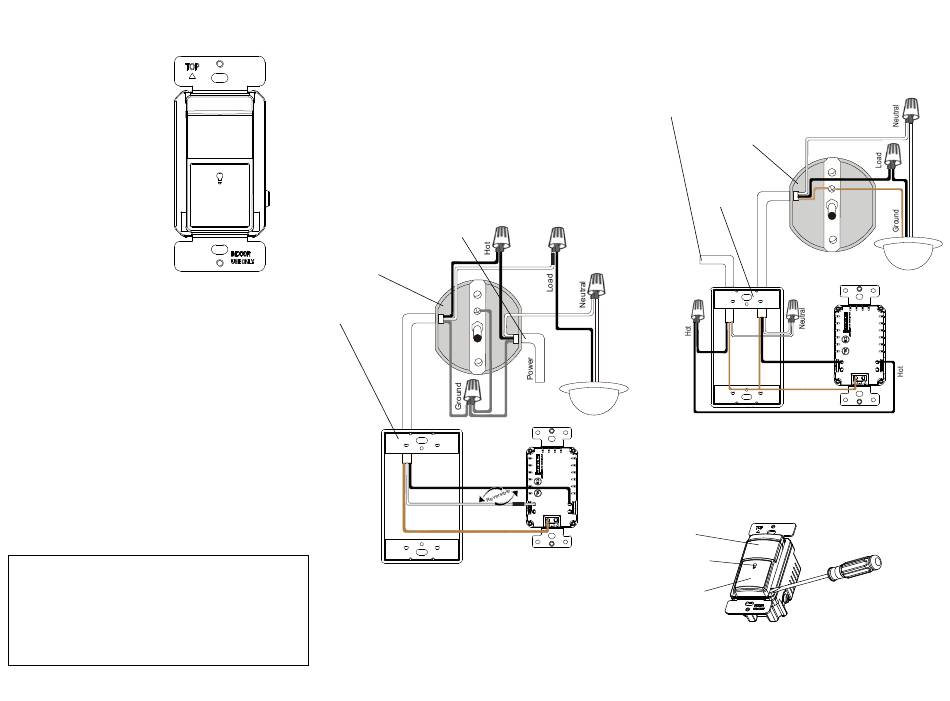

4. Follow the diagram below to reconnect the TDOS5-JM sensor switch.
WARNING: The white wire you see in the wall box is not
always the neutral wire. Verify whether the
power enters the wall or ceiling box first
If power enters the ceiling box first,
then wire the TDOS5-JM this way
Ceiling box
Wall box
Hot
Load
Ground
2
If power enters the wall box first,
then wire the TDOS5-JM this way
Ceiling box
Wall box
POWER
Load
Ground
REMOVING COVER PANEL:
Remove the cover panel with a flathead screwdriver. Find the slots at the
bottom left or right of the panel cover and gently pry the panel cover off.
Fresnel Lens
LED Indicator
On/ Off and
Program Button
3
