Topgreener TD0S5-J Installation Instructions

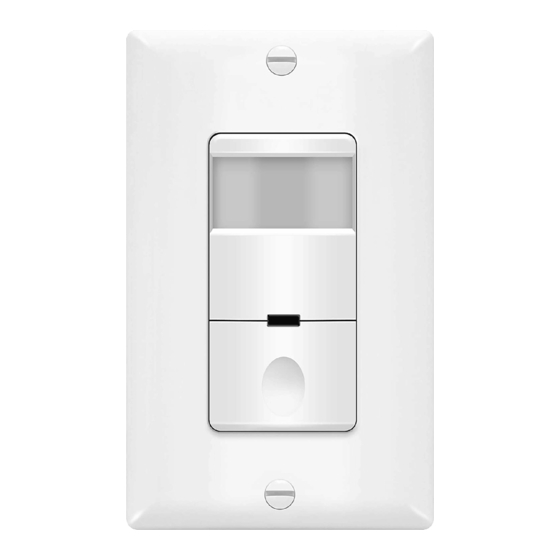

INSTALLATION INSTRUCTIONS
OCCUPANCY/VACANCY
SENSOR SWITCH
TDOS5-J

SPECIFICATIONS

Switch Type .................................................................................Single Pole
Voltage ................................................................................120VAC,60Hz
Incandescent ........................................................................................500W
Fluorescent/Ballast..............................500VA@120VAC/1000VA@277VAC
Motor ...............................................................................................1/4HP
Time Delay .......................................................................15Sec to 30Mins
Light Level. ........................................................................30 Lux--Daylight
Operation Temperature ...........................................................32 F�-131 F
DESCRIPTIONION
The passive infrared sensor works by detecting the difference
between heat emitted from the human body in motion and the
background space. The sensor switch can turn a load on and hold it as
long as the sensor detects occupancy. After no motion is detected for the
set time delay, the load turned off automatically. The sensor s witch has
one relay (equal to single pole switch), also includes Ambient Light
Level Sensor.
Coverage Area
The coverage range of the sensor switch is specified and illustrated in
Figure 1. Large objects and some transparent barriers like glass
windows will obstruct the sensor's view a nd prevent detection,
causing the light to turn off even if someone is still in the detection area.
- 01-
SAFETY WARNING::
Read and understand these instructions
before installation. This device is intended for installation in
TD0S5-J
accordance with the National Electrical Code and local
regulations. It is recommended that a qualified electrician
perform this installation. Make sure to turn off the circuit
breaker or fuse(s) and test that the power is off before wiring
(2-IN-1)
the device.
Note: Green wire on the sensor must be connected to Ground
or Neutral for the sensor to work properly.

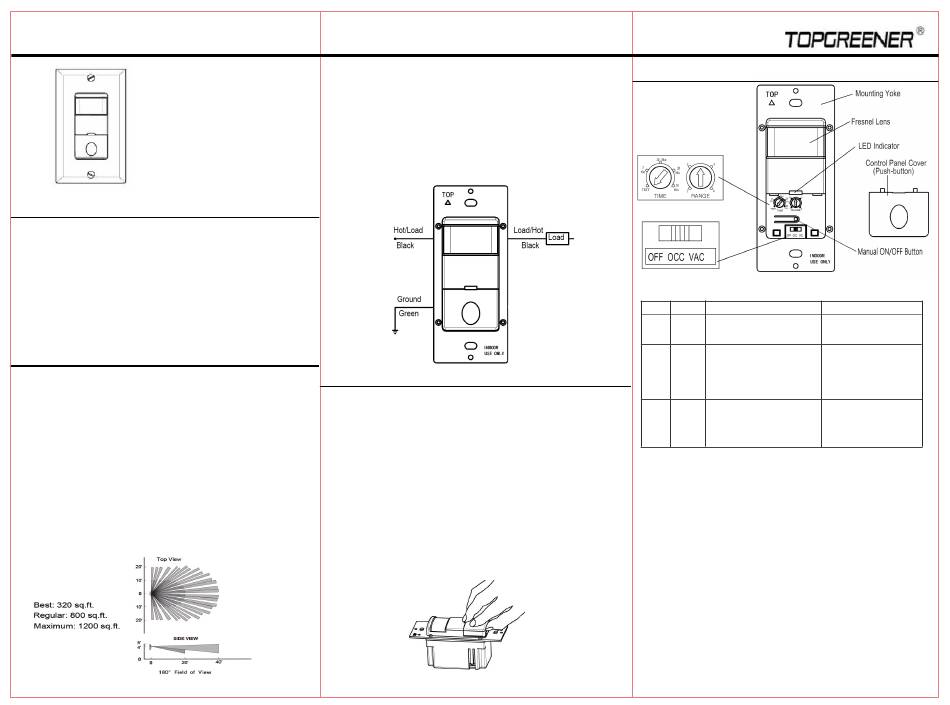

Wiring Diagram:
0
IINSTALLATIONION
1. The black wires on the sensor are hot and load interchangeable.
2.
Connect lead wires as wiring diagram (see Figure 2): One Black
lead to Hot or Load, The other Black lead to Load or Hot, Green
lead to Ground.
3. Gently position wires in wall box, attach sensor switch to the box.
4. Mount device "TOP" up.
5. Restore power at circuit breaker or fuse. Wait three minutes for
the sensor complete its initial run.
Note: The sensor needs to be charged for 3 minutes in the first
use. Please do not press any button and make any adjustment in
this period of them for the sensor to work properly.
6. Remove the small cover plate. (Illustrated in Figure 3)
7. Locate the adjustment knobs on the control panel to test and
change setting.(Illustrated in Figure 3)
8. Replace the small cover plate after testing and setting.
9. Attach the wallplate.
Figure 1

ADJUSTMENT

Band Switch Description
Mode
Figure 2
OCC
Time Delay knob
Default position: 15 Seconds (Test mode)
Adjustable: from 15 Seconds to 30 Minutes (clockwise)
Sensor Sensitivity Range Knob
Default position: Center at 65%
Adjustable: 30% (Position 1) to 100% (Position 4)
Note: Turn toward right for greater room space.

Ambient Light Level Adjustment

Note: Please complete Initial Run (3 minutes) before adjusting
ambient light level.
Figure 3
-02-
Position

Description

Push-Button on Reaction
Circuit is permanently
Left
OFF
opened. ( switched off)
Occupancy Mode:
Automatic On, automatic
Center
Off after set time delay.
Vacancy Mode: Manual On
only, automatic Off after set
VAC Right
time delay.
Turn toward left to avoid false alert in smaller room and near
the door way or heat source.
.
1. Set the Band Switch to VAC.
-03-
Figure 4
None
Manually toggles
OnIOff load.
Manually toggles
On/Off the load.
