INSTALLATION INSTRUCTIONS

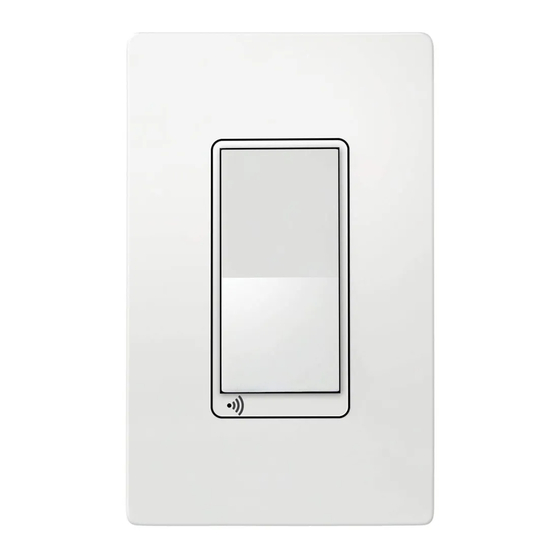

Model: TGWF15S
Wireless Home Automation
Wi-Fi ON/OFF SWITCH
FEATURES
• Control your lights with your smart devices without the need of
any hubs.
• Easy to configure easy to use Smart App.
• Save energy by automating the ON/OFF times or using the timer.
• Compatible with Amazon Alexa, Google Assistant, IFTTT.
SPECIFICATIONS
Incandescent....................................................1000W, 120V~60Hz
Electronic Ballast .................................................................... 5A
Standard Ballast .............................................................. 1200VA
Resistive ................................................................. 1800VA (15A)
Motor ................................................................................... 1/2HP
Protocol ............................................................ IEEE 802.11b/g/n
Wireless Type .................................................................. 2.4GHz
Operating Temperature ................................... 32º - 104ºF (0º-40ºC)
REQUIREMENTS:
• Wi-Fi Internet connection of 2.4GHz.
• Smart Device such as a Smart Phone or Tablet with an
operating system of Android ver. 4.1 or higher or iOS 8 of higher.
• Installation of the TOPGREENER Smart App on the Smart Device.
1
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Switch.
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 8in (20cm) between the radiator & your body.
RF Exposure
A distance of 8in (20cm) shall be maintained between the antenna and users, and
the transmitter module may not co-locate with any other transmitter or antenna.
WIRING DIRECTIONS:
First, determine if you will be controlling the lights from one location or multiple
locations. Next, identify all the wires and label them if necessary. Once you've
identified the wires, follow the diagram below for wiring.
3-way wiring for Wi-Fi Switches
2
Ground
TGWF15S
Single Pole Installation
Ground
TGWF15S
Traveler
Ground
Neutral
91150 Switch
3
