Topgreener TDOS5-KM Installation Instructions

INSTALLATION INSTRUCTIONS

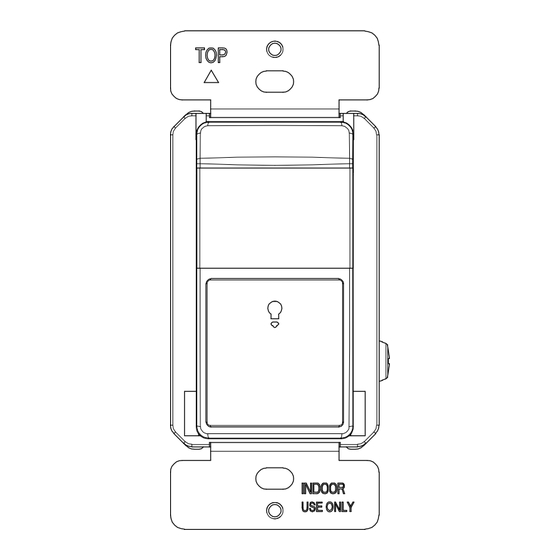

Model: TDOS5-KM
Occupancy/ Vacancy
Sensor Switch
FEATURES
The sensor switch can automatically turn a load on (or manually be turned on) and stay
on as long as the sensor detects occupancy. After no motion is detected within the
selected time delay, the load turns off automatically. This device features a learning
capability; it will learn your on/off habits based on your usage during different ambient
light levels, then automatically operate the lights based on the usage patterns.
SPECIFICATIONS
Voltage .........................................................................120VAC, 50/60Hz
Tungsten...........................................................................................300W
Electronic Self-Ballast (LED)................................................150W (1.25A)
Time Delay......................................................................15Sec to 30Mins
Operation Temperature................................ 32° F--104° F(0 °C to 40 °C)
PIR Coverage.........................1200 sq.ft. (up to 40' in front of the sensor)
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Sensor Switch.
Read and understand these instructions before installing. This device is intended for
installation in accordance with the National Electric Code and local regulations. It is
recommended that a qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
Coupez l'alimentation au disjoncteur avant
l'installation du commutateur de capteur.
Lisez et comprenez ces instructions avant l'installation. Cet appareil est destiné à être
installé conformément au Code national de l'électricité et aux réglementations locales. Il est
recommandé qu'un électricien qualifié effectue cette installation.
Utilisez uniquement du fil de cuivre.
Utilisez des fils avec une température nominale minimale de
75 ºC (167 ºF)
1
REQUIREMENTS
Neutral wire is NOT REQUIRED.
Ground wire is optional as it is NOT REQUIRED for TDOS5-KM to work.
WIRING DIRECTIONS:
1. Remove the wall plate.
2. Remove existing switch from wall box and prior to disconnecting wires,
identify the wires and label as needed.
3. Remove wires from existing switch.
4. Follow the diagram below to connect the TDOS5-KM sensor switch.
WARNING: The white wire you see in the wall box is not
always the neutral wire. Verify whether the
power enters the wall or ceiling box first
AVERTISSEMENT :
Le fil blanc que vous voyez dans la boîte murale n'est pas
toujours le fil neutre. Vérifiez si l'alimentation entre d'abord
dans le boîtier mural ou de plafond

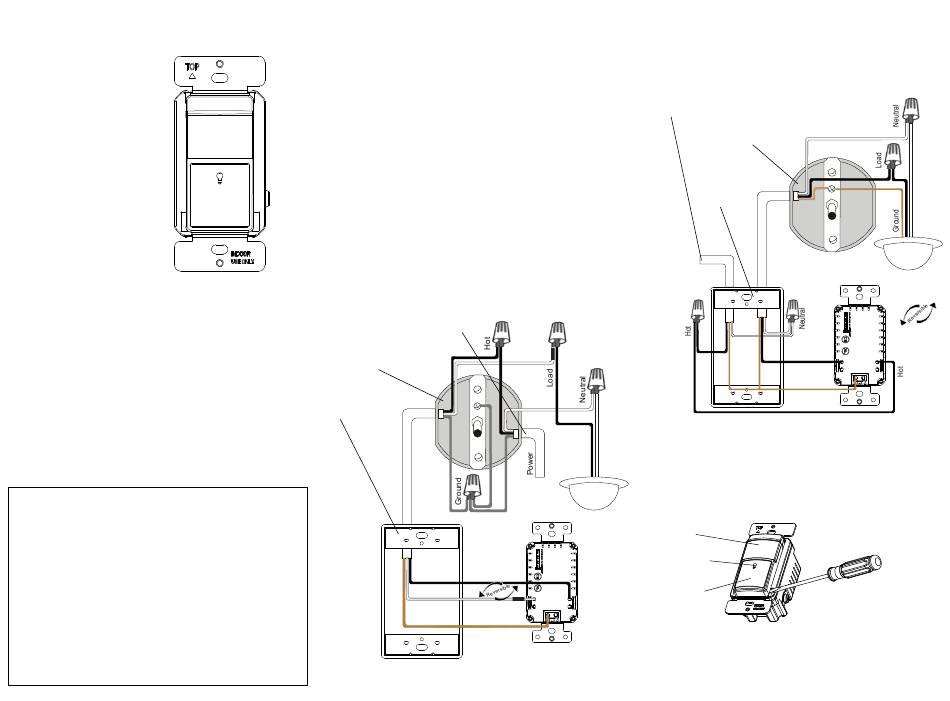

If power enters the ceiling box first,
then wire the TDOS5-KM this way
Ceiling box
Wall box
Hot
Load
Ground
(Optional)
2
If power enters the wall box first,
then wire the TDOS5-KM this way
Ceiling box
Wall box
POWER
Load
Ground
(Optional)
REMOVING COVER PANEL:
Remove the cover panel with a flathead screwdriver. Find the slots at the
bottom left or right of the panel cover and gently pry the panel cover off.
Fresnel Lens
LED Indicator
On/ Off and
Program Button
3
Hot
Load
