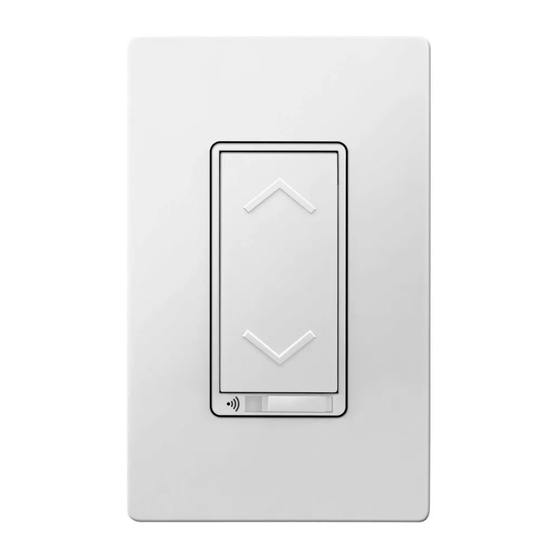

Topgreener TGWF500D Installation Instructions

INSTALLATION INSTRUCTIONS
Model: TGWF500D
Wireless Home Automation
Wi-Fi Dimmer
FEATURES
• Control your lights with your smart devices without
the need of any hubs.
• Easily configure use through Smart App.
• Save energy by automating the ON/OFF times.
• Compatible with Amazon Alexa, Google Assistant,
IFTTT.
SPECIFICATIONS
Incandescent .........................................................600W, 120V~60Hz
CFL/LED/Self Ballasted .......................................................2A, 150W
Protocol .................................................................. IEEE 802.11b/g/n
Wireless Type ........................................................................ 2.4GHz
Operating Temperature ..................................... 32º - 104ºF (0º-40ºC)
NOTE:
This device is not compatible with standard 3-way or 4-way switches. 3-Way
and 4-way capabilities require the TGWF3K auxiliary switch.
REQUIREMENTS:
• Wi-Fi Internet connection of 2.4GHz.
• Smart Device such as a Smart Phone or Tablet with an
operating system of Android ver. 4.1 or higher or iOS 8 of higher.
• Installation of the TOPGREENER Smart App on the Smart Device.
1
WARNING
Turn the POWER OFF at the circuit breaker before
installing the Dimmer.
Read and understand these instructions before installing. This device is intended for installation
in accordance with the National Electric Code and local regulations. It is recommended that a
qualified electrician performs this installation.
Use copper wire only.
Use wires with a minimum temperature rating of 75ºC (167ºF)
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1. This device may not cause interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 8in (20cm) between the radiator & your body.
RF Exposure
A distance of 8in (20cm) shall be maintained between the antenna and users, and
the transmitter module may not co-locate with any other transmitter or antenna.

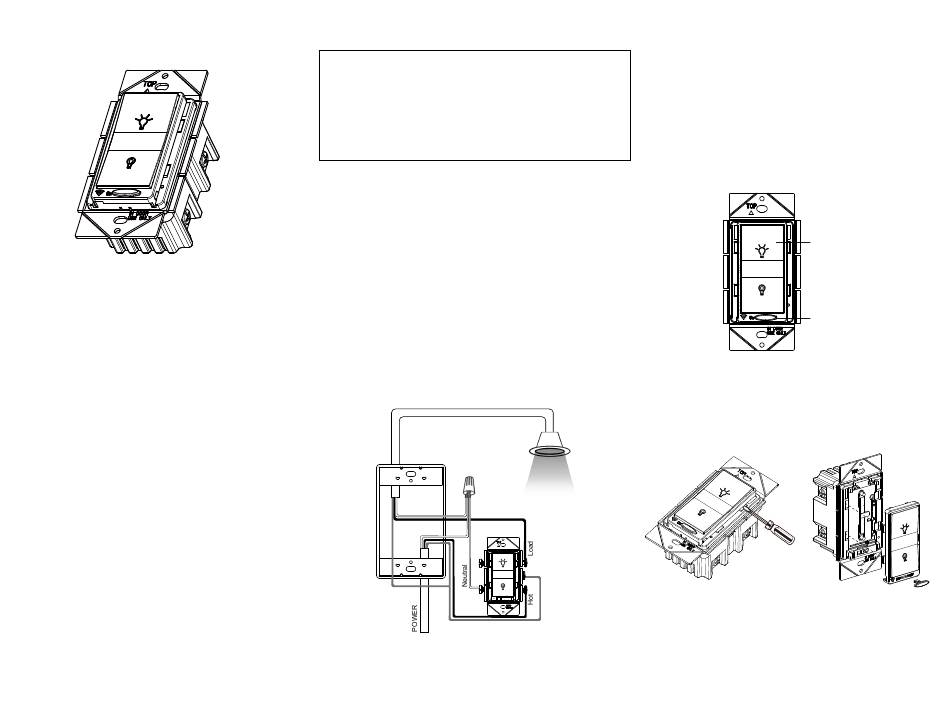

WIRING DIRECTIONS:
First, decide if you will be controlling the lights from one location or multiple
locations. Next, identify all wires. Once you've identified the wires, follow the
diagram below for wiring.
Single Pole Installation
TGWF500D
For 3-Way or 4-Way wiring, follow the
instructions on the TGWF3K auxiliary switch
2
OPERATING THE DIMMER
After the TGWF3K Add-On Switch has been properly connected to the
TGWF500D Dimmer, the Add-On Switch will operate the same way the
TGWF500D does.
• To turn on the lights ON to the last used brightness level, press and
release the top Dimmer Paddle
• To brighten the lights, press and hold the top Dimmer Paddle and
release when the desired level is reached
• To dim the lights, press and hold the bottom Dimmer Paddle and
release when the desired level is reached
• To save the brightness level and turn off the lights, press and release
the bottom Dimmer Paddle
CHANGING THE FACE COVER
Ground
To replace the face cover, use a flat screwdriver and insert the tip at the gap
shown in the diagram above and pry cover off. To re-install, simply align the
cover and snap back on.
Dimmer
Switch
Paddle
Air Gap Switch on the
TGWF500D
3
