Humanscale M2.1 Assembly Instructions Manual page 6

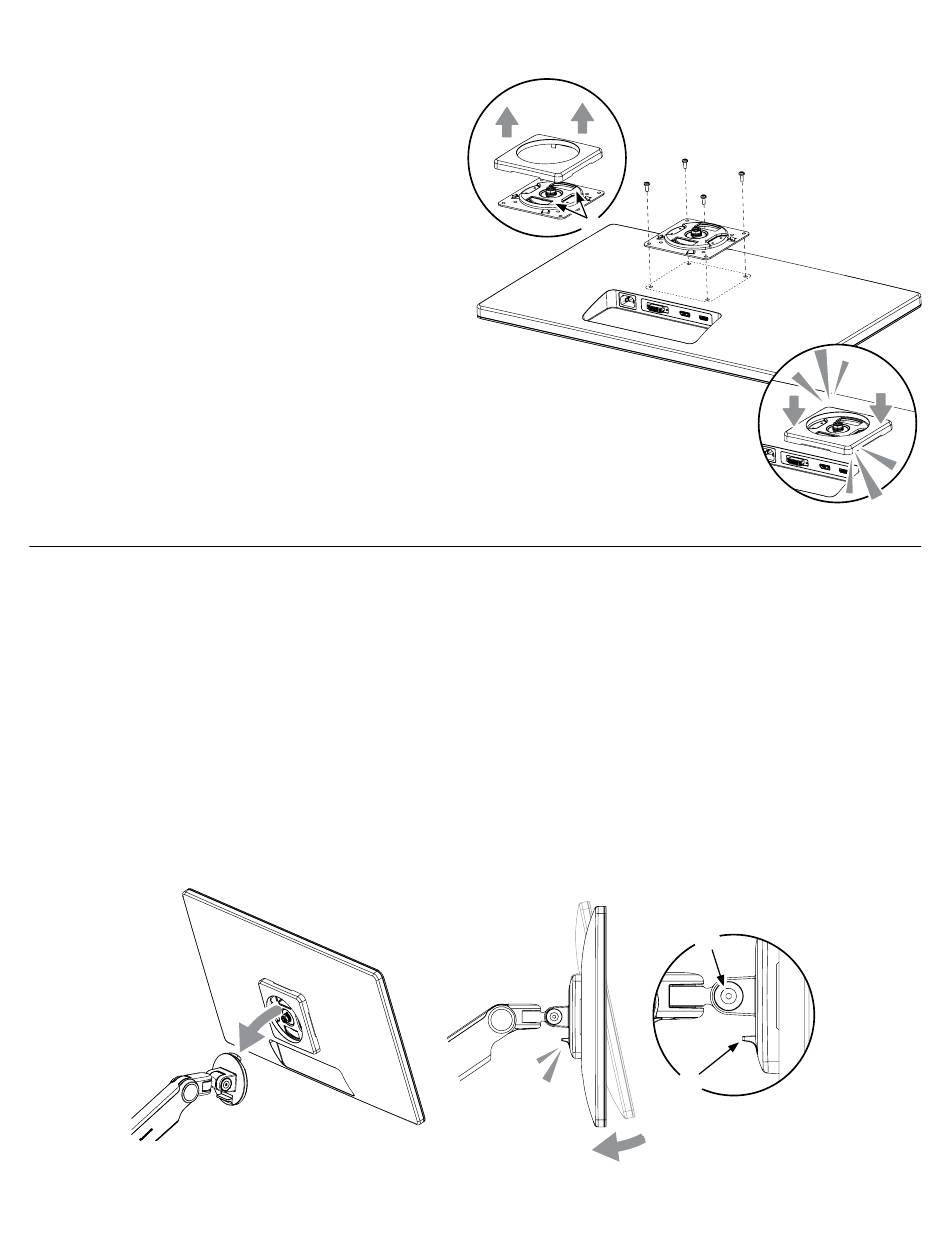

Attach Vesa Plate To Monitor
1
Separate the VESA cover from the VESA plate.
2
Position the VESA plate over the mounting holes
on the back of monitor with the D-shaped cut outs
(A) in a vertical orientation. Attach using provided
VESA screws.
3
Snap the VESA cover back in place.
The VESA plate features 75 mm and 100 mm hole
patterns. You may also use the screws which came
with your monitor to attach the VESA plate.
If you must offset the plate from the monitor, use
the plastic spacers and extended screws provided.
Attach Monitor To Arm
1
Hold the monitor at an angle and lower it onto the arm. Fit the hook at the top of the arm into the
D-shaped cutout in the VESA plate.
2
Push the bottom of the monitor back until the Quick Release Tab (B) on the arm snaps into position.
3
To remove the monitor, lift the Quick Release Tab and pull the bottom of the monitor away from the arm,
then lift free of the hook.
NOTE: If needed, adjust the Tension Screw (A) to hold the monitor in position.
