Humanscale M2.1 Installation Instructions

Direct wall mount

Hide thumbs Also See for M2.1:

Enlarged version

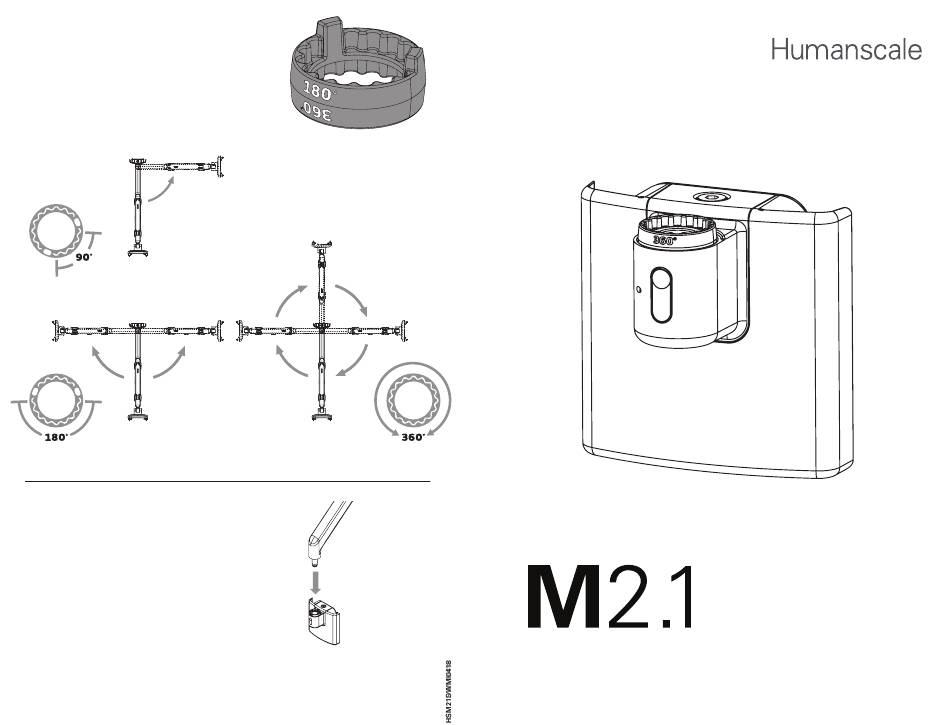

STEP 7:

Position the stop ring to limit the

arm's range of motion if desired.

The marked angle will be in the

center of the range of motion.

Arm can rotate 90º

Arm can rotate 180º

STEP 8:

Insert monitor arm into the mount

until release button locks in place.

To remove arm press release button

and pull the arm up near the joint.

www.humanscale.com

Arm can rotate

without stopping

Direct Wall Mount

Installation Instructions

Table of Contents

Need help?

Do you have a question about the M2.1 and is the answer not in the manual?

Page 1: Installation Instructions
Arm can rotate 180º Arm can rotate without stopping STEP 8: Insert monitor arm into the mount until release button locks in place. To remove arm press release button and pull the arm up near the joint. Direct Wall Mount Installation Instructions www.humanscale.com...
Page 2 STEP 1: STEP 4: Remove the plastic front cover. Align the mount with the mounting plate on the wall. STEP 2: STEP 5: Remove the two side screws and Reinstall the two side screws and top screw from the mount and top screw into the mount and tighten.
