Crestron TSW-570PR Quick Start Manual

TSW-570PR
5 in. Wall Mount Touch Screen, Portrait, Crestron Home™ OS Version
The Crestron® TSW-570PR is a wall mount touch screen designed
specifically to run the Crestron Home™ OS application. The touch
screens support H.265/H.264 streaming video and PoE+ (Power over
Ethernet Plus) network power.
NOTE: For simplicity within this guide, the term "touch screen" is used
except where otherwise noted.
In the Box
1 TSW-570PR*, Wall Mount Touch Screen, Portrait
Additional Items
1 Bracket, Preconstruction, TSW-UMB-570P-PMK
(4531648)
1 Bracket, Mounting, TSW-UMB-70 (4531354)
2 Screw, 6-32 x 1/2 in., Pan Head, Phillips (2007240)
1 Bracket, Security (2055451)
2 Screw, M2 x 4 mm, Security (2055454)
1 Key, Security Bracket Release (2055452)
* Refer to the TSW-570PR-B product page at
color variations.
www.crestron.com for a complete list of
Install the Mounting Bracket
The TSW-570PR can be mounted into drywall and other surfaces, or it
can be mounted onto a wall stud.
NOTE: Additional mounting options are possible using the
TSW-UMB-70 universal mounting bracket, TSW-UMB-570P-PMK
preconstruction mounting kit, or TSW-UMB-70-BBI wall mount back
box. For more information, refer to the product pages at
www.crestron.com.

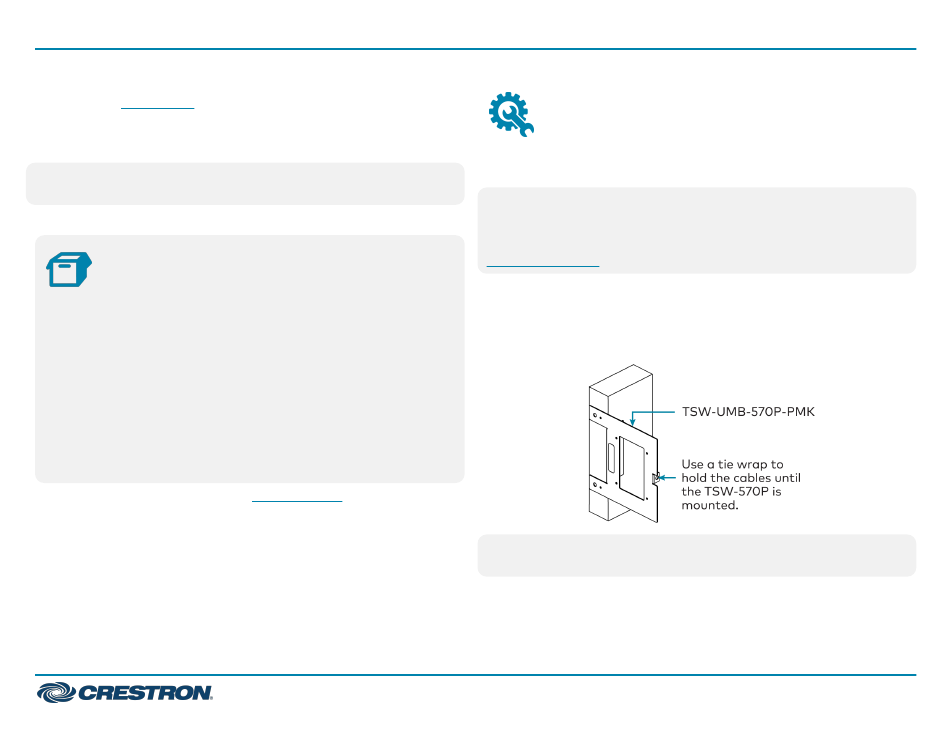

Preconstruction Installations
To install the TSW-570PR mounting bracket in preconstruction
applications, use standard drywall nails or screws (not included) to
attach the TSW-UMB-570P-PMK mounting bracket to a wall stud.
NOTE: Allow an air gap of at least 12 in. (305 mm) in the wall cavity
above and below the touch screen for heat dissipation.
