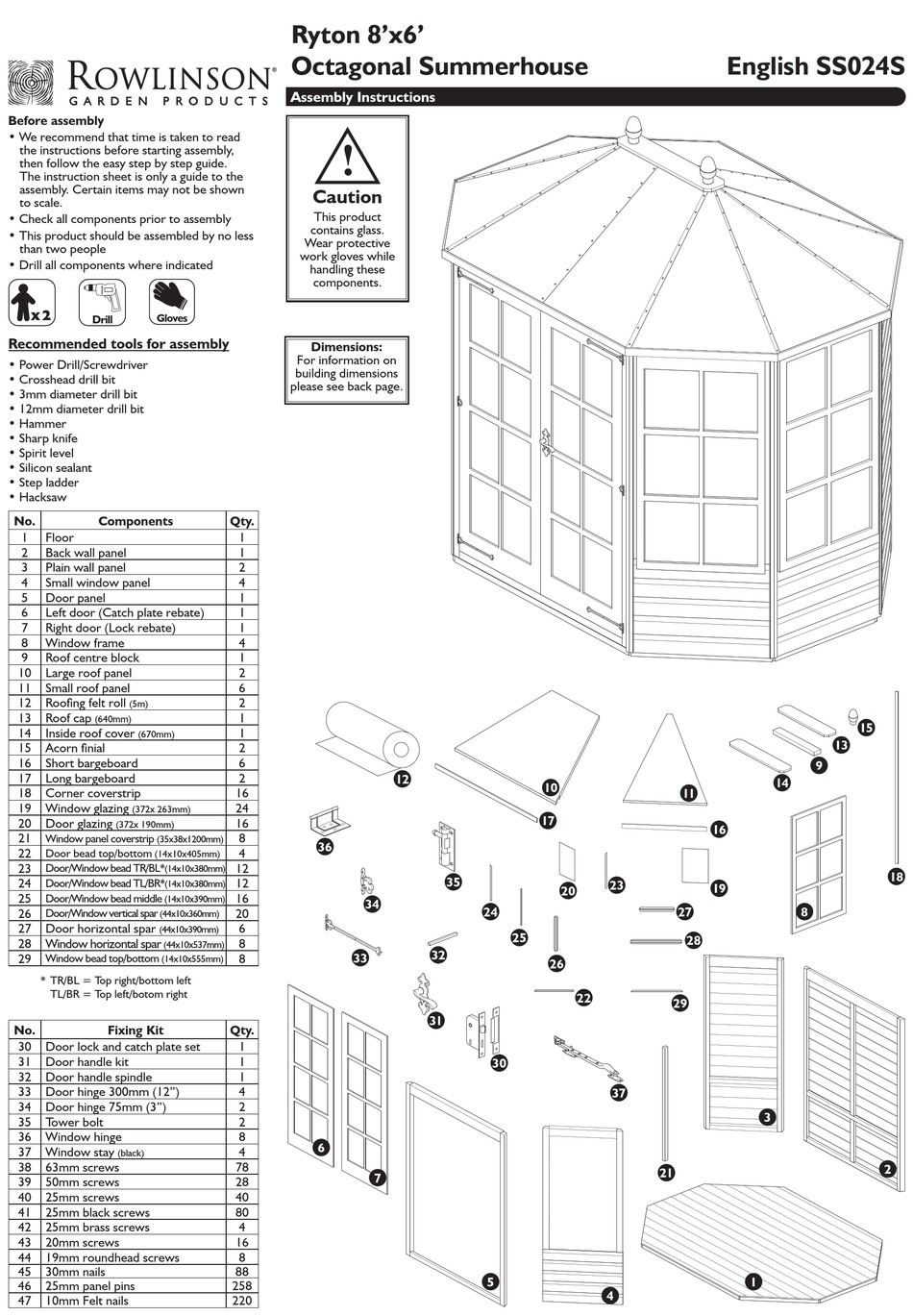

Rowlinson Garden Products Ryton 8'x6' Assembly Instructions Manual

Before assembly
• We recommend that time is taken to read
the instructions before starting assembly,
then follow the easy step by step guide.
The instruction sheet is only a guide to the
assembly. Certain items may not be shown
to scale.
• Check all components prior to assembly
• This product should be assembled by no less
than two people
• Drill all components where indicated
x 2
Gloves
Drill
Recommended tools for assembly
• Power Drill/Screwdriver
• Crosshead drill bit
• 3mm diameter drill bit
• 12mm diameter drill bit
• Hammer
• Sharp knife
• Spirit level
• Silicon sealant
• Step ladder
• Hacksaw
No. Components
1 Floor
2 Back wall panel
3 Plain wall panel
4 Small window panel
5 Door panel
6 Left door (Catch plate rebate)
7 Right door (Lock rebate)
8 Window frame
9 Roof centre block
10 Large roof panel
11 Small roof panel
12 Roofing felt roll
(5m)
13 Roof cap
(640mm)
14 Inside roof cover
(670mm)
15 Acorn finial
16 Short bargeboard
17 Long bargeboard
18 Corner coverstrip
19 Window glazing
(372x 263mm)
20 Door glazing
(372x 190mm)
21
Window panel coverstrip
(35x38x1200mm)
22
Door bead top/bottom
(14x10x405mm)
23
Door/Window bead TR/BL*
(14x10x380mm)
24
Door/Window bead TL/BR*
(14x10x380mm)
25
Door/Window bead middle
(14x10x390mm)
26
Door/Window vertical spar
(44x10x360mm)
27 Door horizontal spar
(44x10x390mm)
28 Window horizontal spar
(44x10x537mm)
29
Window bead top/bottom
(14x10x555mm)
* TR/BL = Top right/bottom left
TL/BR = Top left/botom right
No. Fixing Kit
30 Door lock and catch plate set
31 Door handle kit
32 Door handle spindle
33 Door hinge 300mm (12")
34 Door hinge 75mm (3")
35 Tower bolt
36 Window hinge
37 Window stay
(black)
38 63mm screws
39 50mm screws
40 25mm screws
41 25mm black screws
42 25mm brass screws
43 20mm screws
44 19mm roundhead screws
45 30mm nails
46 25mm panel pins
47 10mm Felt nails
Ryton 8'x6'
Octagonal Summerhouse
Assembly Instructions
Caution
This product
contains glass.
Wear protective
work gloves while
handling these
components.
Dimensions:
For information on
building dimensions
please see back page.
Qty.
1
1
2
4
1
1
1
4
1
2
6
2
1
1
2
6
2
12
16
24
16
8
36
4
12
12
16
34
20
6
8
33
8
Qty.
1
1
1
4
2
2
8
6
4
78
7
28
40
80
4
16
8
88
258
220
10
17
35
20
24
25
32
26
22
31
30
5
English SS024S
14
11
16
23
19
27
28
29
37
3
21
1
4
15
13
9
18
8
