10.4 Start (pulse) + Stop (pulse)

- Semi-auto flow assembly line with belt conveyor system
- Scout gives the alert buzzer when the work-piece move out to the next process
before the cycle completed.
It have two signals for work-piece coming IN and OUT using the optical or magnetic
sensors. Scout starts to count fastening numbers with Start signal, and verify Cycle
complete OK / NG with Stop signal.

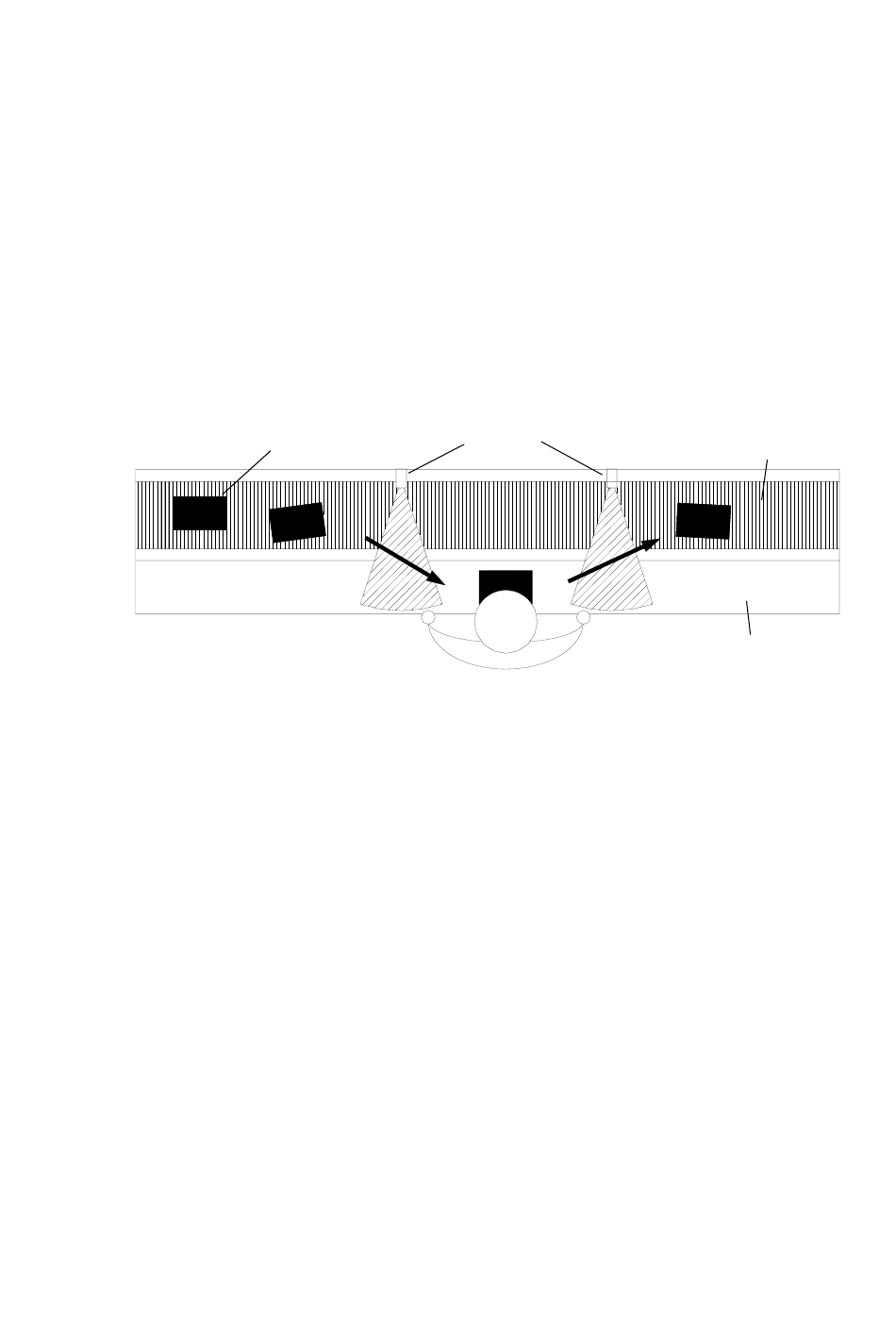

Work-piece
IN
- 29 -
Sensors
OUT
Conveyor
Belt system
Work table
