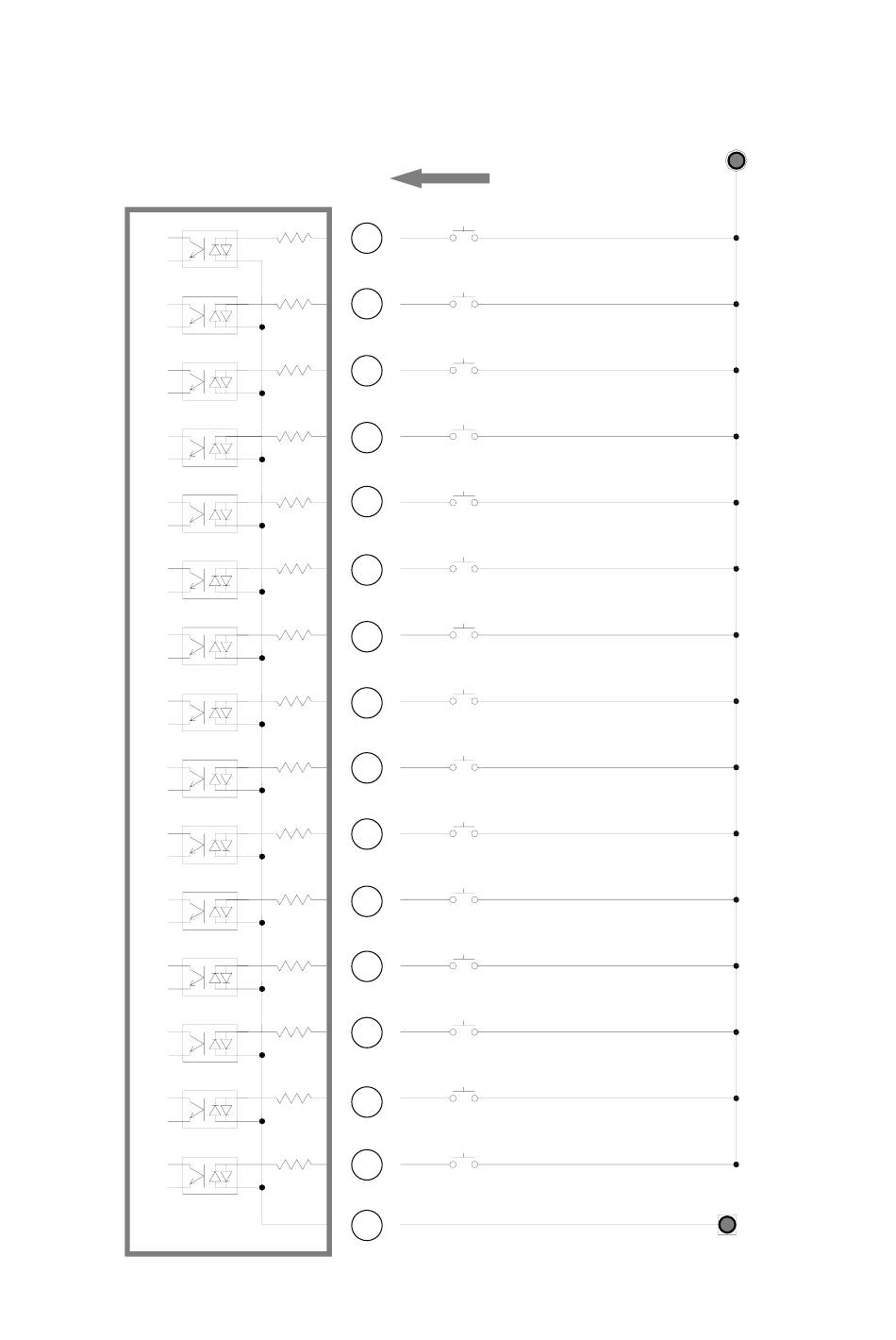

(Negative(-) Common wiring)
7.2 INPUT
SCOUT II
External motor RUN
1
External torque up
2
Cycle Start
3
Cycle Stop
4
Cycle reset
5
Driver Lock
6
Spare 1
7
PS1
8
PS2
9
PS3
10
PS4
11
PS5
12
PS6
13
PS7
14
PS8
15
Input COM
24
Return 24V(-)
- 15 -
External power (24VDC+)
