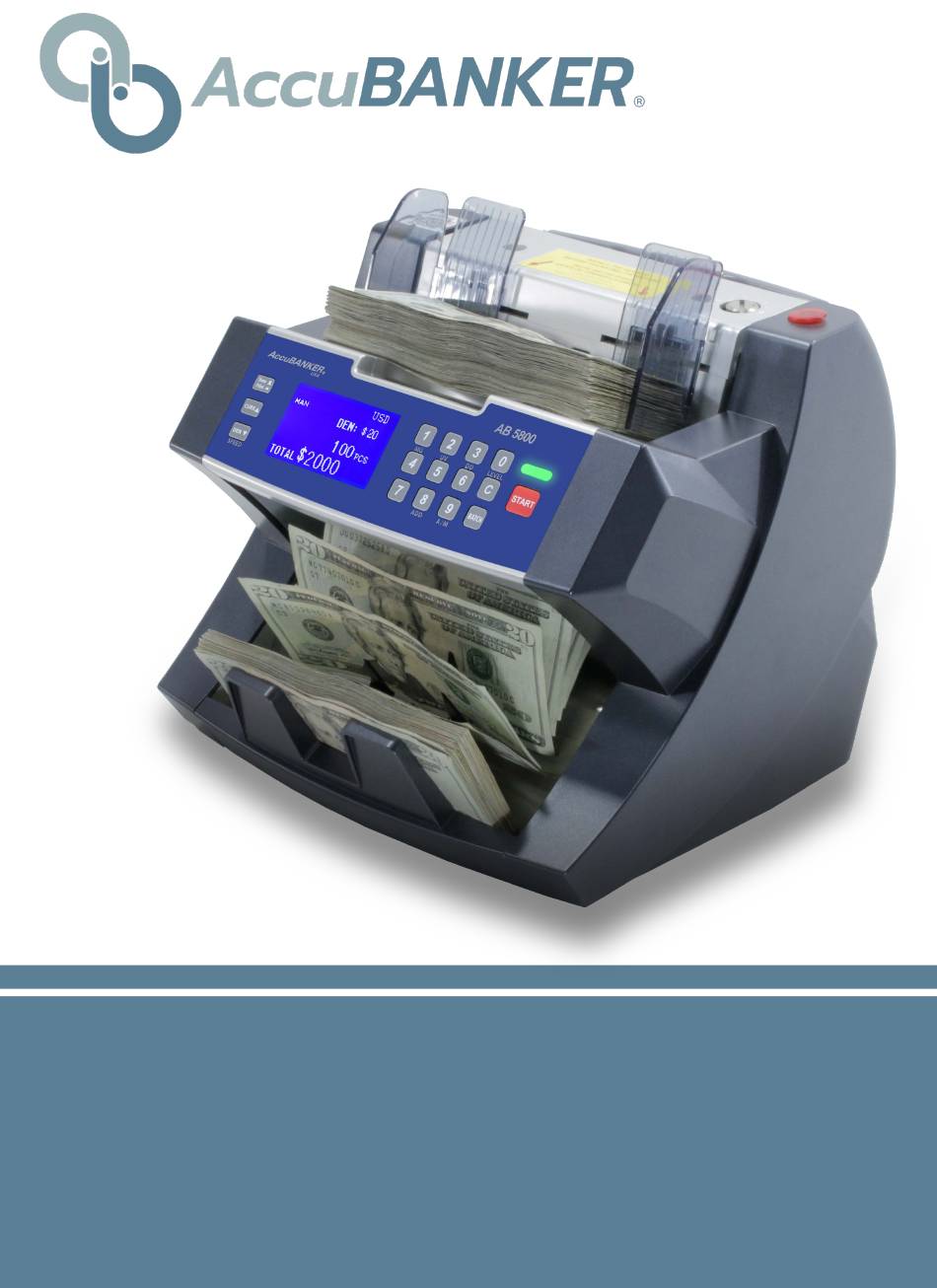

  • Page 1 AB5800 Bank Grade Value Extension Bill Counter USER GUIDE www.AccuBANKER.com...
  • Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use.

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ..................... 3 Introduction ...................... 4 1. Safety Instructions ..................5 2. Getting Started ....................7 2.1 Installation ....................7 2.2 Bill Guider Installation ................7 2.3 Bill Selection / Placement ............... 8 3. Equipment Overview ..................9 3.1 Part Description ..................

  • Page 4: Introduction

    Introduction The AB5800 bill counter is the perfect solution for a fast, accurate, and reliable banknote counting process. This machine is designed to meet the most demanding applications in today’s financial market. A simple and friendly user interface, as well as its Value Extension function capability, will help save you time and money during the closeout process.

  • Page 5: Safety Instructions

    1. Safety Instructions Warning Do not use this product in areas where it may be exposed to water or other liquids. Unplug this product from the electric outlet before cleaning. Do not use liquid or aerosol cleaners. To clean, use a damp cloth. To reduce the risk of electric shock, do not disassemble this product.
  • Page 6 1. Safety Instructions (continued) • Follow all warnings and instructions marked on the unit. • This product is meant to be operated in an indoor environment with proper ventilation. • Do not place near direct sunlight, heat sources, or air conditioners. •...

  • Page 7: Getting Started

    2. Getting Started 2.1 Installation Select an appropriate workspace that is clean, flat, and leveled. The equipment should never be placed near strong sources of light, heat sources, or air conditioners. Please do not install the equipment where its weight cannot be supported.

  • Page 8: Bill Selection / Placement

    2. Getting Started (continued) 2.3 Bill Selection / Placement A. Avoid counting wet, excessively dirty, folded, or damaged bills. B. Check for foreign objects mixed up with the bills such as paper clips, rubber bands, pieces of paper, etc. C. If counting new bills, fan them lightly since they often stick together. D.

  • Page 9: Equipment Overview

    3. Equipment Overview 3.1 Part Description 10 11 12 AB5800 1. Bill Guiders: Aligns the bills to be counted 2. Hopper Sensor: Senses when bills are on the hopper tray 3. Emergency Stop Button: Stops the counting operation instantly 4. Hopper Tray: Bills are placed here to be counted 5.

  • Page 10: Control Panel Description

    2. Equipment Overview (continued) 3.2 Control Panel Description PRINT SHOW / PRINT (AccuBANKER Thermal Printer not included, sold • separately): Used to show the count details when the Value Extension function is used or to print a receipt detailing a breakdown by denominations counted.
  • Page 11 2. Equipment Overview (continued) 2.2 Control Panel Description (continued) CURR: Press CURR repeatedly to select the desired currency to • COUNT. The default options are USD-EUR-MXN-CAD-LOCAL. This key is also used to “SCROLL UP” the cursor during the SHOW view. LOCAL DENOMINATIONS CONFIGURATION a.
  • Page 12 2. Machine Overview (continued) 2.2 Control Panel Description (continued) DEN / SPEED: Press the DEN key to activate the Value Extension • function. Pressed repeatedly, it will show all the denominations available for that currency. This key is also used to “SCROLL DOWN” the cursor during the SHOW view.
  • Page 13 2. Equipment Overview (continued) 2.2 Control Panel Description (continued) • UV: Ultraviolet Verification On/Off This function allows the unit to analyze the ultraviolet characteristics of each bill during the counting. The unit will stop counting if a bill is considered suspicious. The UV sensitivity can be adjusted by the user from 1-9.
  • Page 14 2. Equipment Overview (continued) 2.2 Control Panel Description (continued) • Numeric Keys: For setting up batch sizes manually, just enter the desired batch quantity. Used also for the security functions sensitivity adjustment. • A/M: Automatic or Manual starting mode. The counting begins automatically when the bills are placed in the hopper.

  • Page 15: Functions Detection Sensitivity Adjustment (Mg-Uv-Dd-Level)

    2. Equipment Overview (continued) 3.3 Functions Detection Sensitivity Adjustment (MG-UV-DD- LEVEL) The user has the option to adjust (increase or decrease) the sensitivity of the detection functions based on their specific needs. The sensitivity can be adjusted from 1-9, where 1 is the lowest sensitivity and 9 the highest sensitivity to adjust.

  • Page 16: Operation

    4. Operation 4.1 Counting Operation Proceed to turn the unit ON. The unit will proceed with a short Self-Test routine to confirm the proper operation of all its modules before starting the count. If any error is reported, check the ERROR MESSAGES section for a solution to the problem.

  • Page 17: Thickness Knob Adjustment (Feeding Gap)

    4. Operation (continued) 4.3 Thickness Knob Adjustment (Feeding Gap) Proceed with this calibration when the bills are not fed smoothly through the machine or miscounting errors are occurring frequently. Other reasons that might require readjusting the feeding gap are: The counting of new or mint condition bills The counting of poor or bad fitness condition bills Having the correct thickness adjustment knob positioning will ensure a smooth counting as well as a trouble-free unit’s operation.

  • Page 18: Warning And Error Messages

    5. Warning and Error Messages Error Messages The unit might report any error message to notify the operator about any incident or anomaly during the counting. This table shows a summary of the possible error messages. ERROR CAUSE SOLUTION Remove the suspicious bill UV Alarm Suspicious UV feature Consider reducing UV sensitivity...

  • Page 19: Specifications

    6. Specifications Variable Counting Speed: 1200, 1500 and 1800 notes / min Feeding System: Roller Friction System (Front-loading) Hopper Capacity: 300 bills (good fitness condition) Stacker Capacity: 200 bills (good fitness condition) Banknote size range: 4 x 1.97 – 7 x 3.1 in Display: High Resolution LCD Display Power Source: 100 - 240 VAC 60/50 Hz Power Consumption: <...
  • Page 20 AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
