Page 1: Table Of Contents
AB7500 Dual Pocket Mixed Bill Counter USER GUIDE www.AccuBANKER.com... - Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. ®...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ..................... 1 1. Introduction ....................4 2. Safety Instructions ..................4 3. Equipment Overview ..................6 3.1 Part Description ..................6 3.2 Control Panel Description ..............7 4. Configurations Menu Description ..............9 5. Bill Rejection Codes Descriptions ............. 14 6. -
Page 4: Introduction
1. Introduction The AB7500 is a double pocket bill counter designed to accelerate the cash counting process, as it does not stop its operation when a suspicious bill is detected; instead, it is sent directly into the rejection pocket. The final count result shows the total value as well as the number of bills counted. - Page 5 2. Safety Instructions (continued) • Read and understand all of the safety instructions. • Follow all warnings and instructions marked on the unit. • This product is meant to be operated in an indoor environment with proper ventilation. • Do not place near direct sunlight, heat sources, or air conditioners. •...
-
Page 6: Equipment Overview

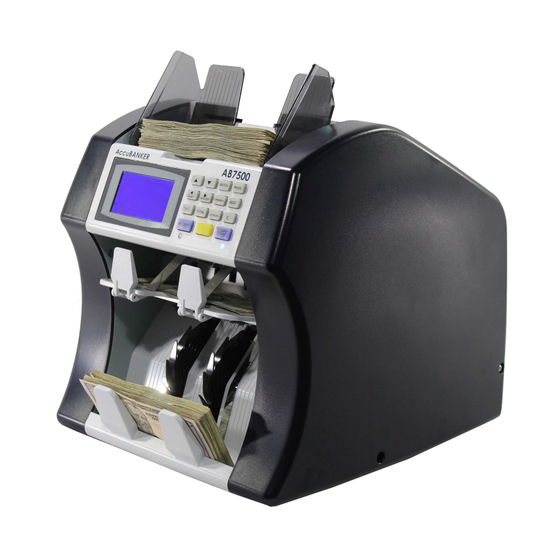

3. Equipment Overview 3.1 Part Description a- Hopper g- Serial ports b- Bill Guiders R- For printer c- Control Panel L- For service d- Rejection Pocket h- USB port for updates e- Stacker i- External display port f- Bill Thickness Adjustment j- Power switch Screw k- Power Jack... -
Page 7: Control Panel Description
3. Equipment Overview (continued) 3.2 Control Panel Description AccuBANKER AB7500 MODE BATCH CURRENCY PRINT FACE/ORT TOTAL DISPLAY START ACCEPT STOP Up / Down / Left / Right BUTTONS Used to move the cursor in the configuration menu. IMPORTANT: When there are bills in the rejection pocket, press see why a bill was rejected. - Page 8 3. Equipment Overview (continued) 3.2 Control Panel Description (continued) PRINT Prints detailed count reports. FACE/ORT Organizes the bills FACE UP, FACE DOWN, LEFT, or RIGHT. CURRENCY Used to change the currency that will be counted. Activates ADDING function. TOTAL Shows the TOTAL VALUE COUNT. DISPLAY Displays the breakdown details of the counting.
-
Page 9: Configurations Menu Description
4. Configurations Menu Description The user menu allows the operator to configure the unit based on their working preferences. The different points to be defined are described below: a- Press the SET key until the menu appears on the screen. b- Use the “direction”... - Page 10 4. Configurations Menu Description (continued) OFF LCD LIGHT Enables / Disables the display standby function when the unit is not in use for long periods of time. MODE KEY SWITCH Used to select the operation mode (MDC, SCD, or CNT). SPEED Allows varying the counting speed of the machine between 800/900/1000 bills/min.
- Page 11 4. Configurations Menu Description (continued) CURRENCY CF In this section, the operator configures the sensitivity of the detection sensors of the various banknote security verification functions. • DD: Bill Size Detection. • DB: Double Bill Verification. • UV: Ultraviolet Detection. •...
- Page 12 4. Configurations Menu Description (continued) CIS SELECT Activates / Deactivates the CIS sensor in CNT mode (basic counting) SELECT DIGIT Allows operator to select the format in which to separate the digits on the display or during printing EXTERNAL DISPLAY Activates / Deactivates external display’s connection TIME CHECK Allows operator to configure the unit to the date and time desired...
- Page 13 4. Configurations Menu Description (continued) BATCH FUNCTION (MDC mode) During operation in MDC mode with the BATCH function active, the total accumulated value can be set to return to ZERO (this restarts the count for every batch) or ADD (this sums the total amount of all batches counted) every time the selected grouping quantity is reached.
-
Page 14: Bill Rejection Codes Descriptions
5. Bill Rejection Codes Descriptions During the count, suspicious bills are rejected directly into the rejection pocket. To determine the specific cause of rejection, simply press the key and the display will show the rejection details using the following error codes described below: •... -
Page 15: Warning And Error Messages
6. Warning and Error Messages Error messages reported during unit’s operation: ERROR CAUSE & SOLUTION SKEW Bill entered skewed. TYPE 2 Rejected because BATCH is full. REJ DENO Rejected by denomination. JAM PS1 PS1 Sensor obstructed, open-top cover and remove the jammed bill, press C to continue. -
Page 16: Unit Maintenance
7. Unit Maintenance 7.1 Periodic Cleaning Routines Follow the recommendations below to minimize possible errors during the operation of the unit and to extend the life of the unit. Daily routine: Perform the following steps on a daily basis: a. Turn Off the Turn OFF the unit. b. -
Page 17: Software Updates
8. Software Updates Steps to perform software update: Proceed to update the machine's firmware when new bills are launched by the Central Bank. 1. Copy the update file into a USB memory. The memory capacity must be lower than 32GB. 2. -
Page 18: Specifications
9. Specifications Counting Speed: 800 bills/min (MDC and SDC) Operating Modes: MIXED (MDC), SORT (SDC), BASIC COUNT (CNT) Detection Technology: Contact Image Sensors (CIS) Detection Functions: UV-MG-IR-MT Interface: USB- For Updates / RS232- For Printer and External Display Feeding System: Friction Rollers Hopper Capacity: 500 bills Stacker Capacity: 200 bills Bill Dimensions: 10 x 5 - 18 x 9 cm... - Page 19 ® AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
