- Page 1 AB1050 Commercial Bill Counter USER GUIDE www.AccuBANKER.com...
- Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. ®...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ..................... 3 Important Safety Instructions ................4 Other Safety Considerations ................5 1. Introduction ....................6 2. Box Contents ....................6 3. General Parts and Controls ................7 3.1 Parts Description ..................7 3.2 Control Panel ..................8 4. -
Page 4: Important Safety Instructions
Important Safety Instructions When using this bill counter, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or injury to persons; including the following: Warning Do not use this product in areas where it may be exposed to water or other liquids. -
Page 5: Other Safety Considerations
Other Safety Considerations • Read and understand all of the safety instructions. • Follow all warnings and instructions marked on the unit. • This product should never be placed near or over a radiator or heater register. This product should not be placed in an enclosed space unless there is proper ventilation. -
Page 6: Introduction
1. Introduction The AB1050 Series is our newest back-loading model that provides a simple and rapid way to count money. It is the perfect solution when fast, accurate, and reliable banknote processing is the goal. It is ready to tackle the most demanding tasks, from counting large amounts of cash to batching custom bill quantities. -
Page 7: General Parts And Controls

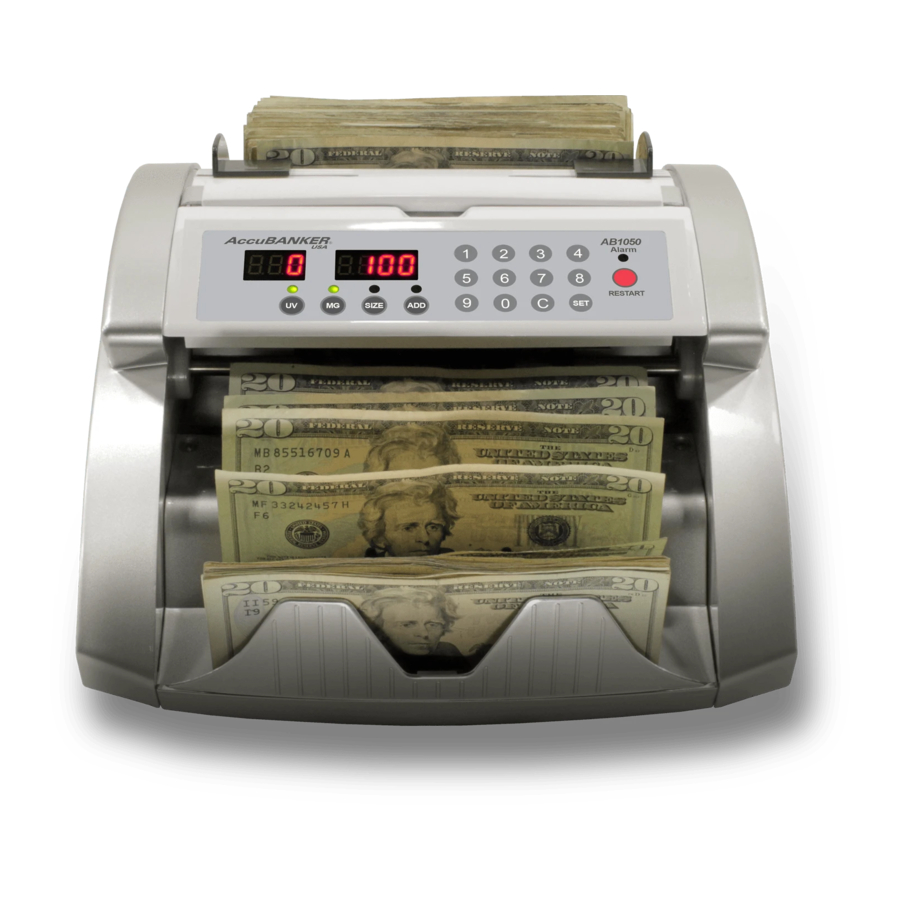

3. General Parts and Controls 3.1 Parts Description 1. Hopper 2. Hopper Guiders 3. Retractable Handle 4. Control Panel 5. Stacker 6. Bill Thickness Adjustment Knob 7. Power Switch 8. Power Outlet 9. External Display jack... -
Page 8: Control Panel
3. General Parts and Controls (continued) 3.2 Control Panel UV: Ultraviolet Detection function ON / OFF. (Optional function) MG: Magnetic Ink Detection function ON/ OFF. (Optional function) Size: Size Detection function ON/ Off (Width). ADD: Adding function ON / OFF. Counts all the bills placed on the hopper and adds them to the total counted earlier. -
Page 9: Basic Operation
4. Basic Operation 4.1 Notes Selection For ensuring a trouble-free operation: 1. Avoid counting wet, excessively dirty, spoiled, folded, or curved notes. 2. Check for foreign objects mixed up with the bills like paper clips, rubber bands, pieces of paper, etc. 3. -
Page 10: Proper Positioning Of The Notes On The Hopper
4. Basic Operation (continued) 4.2 Proper positioning of the notes on the Hopper Back-loading machines are very sensitive to the good positioning of the bills in the hopper, continuous errors may occur during the counting due to bad positioning of the bills. Proceed with the following instructions for placing the bills on the hopper. -
Page 11: Auto/ Manual Modes
4. Basic Operation (continued) 4.4 AUTO/ MANUAL Modes The unit comes from the factory with AUTO counting mode as default. Pressing the RESTART button for 7 sec. until the unit's display shows A-1 or A-0; this will activate or deactivate the Manual mode. In this mode, the user can control when the unit starts counting the bills. -
Page 12: Counterfeit Detection Functions (Optional)
4. Basic Operation (continued) 4.6 Counterfeit Detection functions (Optional) a. Ultraviolet Detection function (only available for the AB1050 UV model) UV function can check all types of banknotes containing UV features and will alert the user in case it fails with the warning message "EE-1" and a beeping alarm. -
Page 13: Size Detection (Width)
4. Basic Operation (continued) 4.6 Counterfeit Detection functions (Optional) (continued) MG sensitivity adjustment The user could customize the MG sensitivity to make this function more accurate for a specific currency. Press the MG key to activate or deactivate the MG function. 1. -
Page 14: Troubleshooting
5. Troubleshooting 5.1 Avoiding Problems Pre-select the notes you are going to count in the unit. Don't attempt to count bills: a. with staples, metal clips, rubber bands, or any other object b. if torn, washed, or damaged c. profusely stained d. -
Page 15: Jamming
5. Troubleshooting (continued) 5.3 Jamming Before beginning operating the machine, make sure there are no foreign objects in any of the mechanisms such as silica bags, spare parts, etc. • To avoid jamming, ensure that banknotes are placed correctly in the hopper (section 4.2). -
Page 16: Unit Maintenance
6. Unit Maintenance 6.1 Cleaning the Optical Sensors It is important to clean all of the sensors in the unit to avoid any paper particles or dust from sticking to the sensors. This should be done every day if possible. The glass surfaces of the sensors may be wiped with a soft cloth soaked with alcohol (refer to the picture below). -
Page 17: Warning And Error Messages
7. Warning and Error Messages ERROR CAUSE SOLUTION Remove the bill and resume the UV function alarm counting. Recheck the suspect bill Remove the bill and resume the MG function alarm counting. Recheck the suspect bill Half note detected Remove the damaged bill Size function alarm Remove the bill CODE... -
Page 18: Specifications
8. Specifications Counting Speed: 1200 notes/min. Counterfeit Detection: SIZE and UV-MG (optional) Interfaces: External Display connection Display: LEDs Display Hopper Capacity: 200 notes (new) Stacker Capacity: 200 notes (new) Banknote size range: 100mm x 50mm – 185mm x 100 mm Power Requirements: Single Phase 110V / 60 Hz. - Page 19 ® AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
