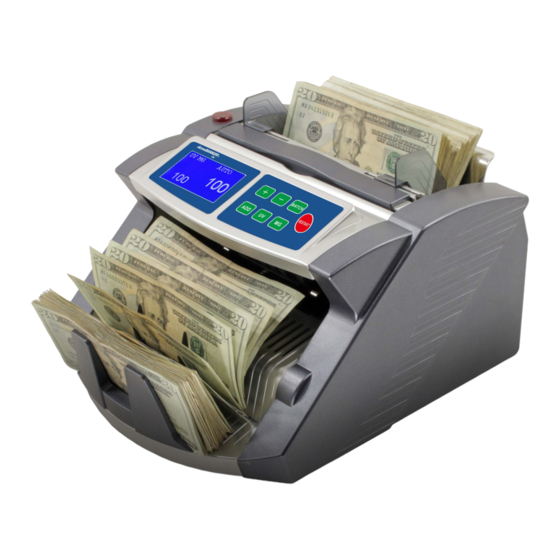

- Page 1 AB1100 PLUS Commercial Digital Bill Counter USER GUIDE www.AccuBANKER.com...
- Page 2 Thank you for trusting AccuBANKER with your cash handling needs. In order to optimize the performance of your equipment, we encourage you to thoroughly read this user guide prior to use. ®...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ......................3 Basic Instructions ......................4 Important Safety Instructions .................... 6 Other Safety Considerations....................7 Box Contents ........................9 Cleaning of the Machine ....................10 1. General Controls and Parts ..................11 1.1 Control Panel and Display ..................13 2. -
Page 4: Basic Instructions
(plastic) banknotes makes this new model an indispensable counting machine for the financial market of today. The AB1100 PLUS models count at a rate of 1300 bills per minute. Different models can include Adding, Batching UV, and MG Counterfeit Detection functions. Its counting speed as well as its capability to detect counterfeit banknotes during the counting procedure (depending on the model), will allow you to save time and money. - Page 5 Model AB1100 PLUS Basic: This model counts at a rate of 1300 bills per minute. It includes Adding and Batching functions but not any Counterfeit Detection. Model AB1100 PLUS UV: This model counts at a rate of 1300 bills per minute. It includes Adding, Batching, and UV Counterfeit Detection functions.
-
Page 6: Important Safety Instructions
Important Safety Instructions When using this bill counter, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or injury; including the following: Warning Do not use this product in areas where it may be exposed to water or other liquids. -
Page 7: Other Safety Considerations
Other Safety Considerations Read and understand all safety instructions. Follow all warnings and instructions marked on the unit. The slots and openings in the back or bottom of the case are provided for ventilation to protect the unit from overheating. These openings should never be blocked or covered by placing the product on the bed, sofa, rug, or similar surfaces. - Page 8 Other Safety Considerations (continued) Never push objects of any kind into the unit through case slots, since they may touch dangerous voltage points or shortcut parts, resulting in a risk of fire or electric shock. Unplug this product from the electric outlet and refer to servicing by qualified service personnel under the following conditions: When the power supply cord or plug is damaged or frayed* If liquid has been spilled into the unit or it has been exposed to rain or...
-
Page 9: Box Contents
Box Contents When opening the box, verify that all the items described below are included. If any item is damaged or missing, contact your provider. 1. Bill Counter AB1100 PLUS 2. External Display 3. Power Cord 4. User Guide... -
Page 10: Cleaning Of The Machine
Cleaning of the Machine WARNING: BEFORE DOING ANY CLEANING, TURN THE POWER SWITCH OFF AND DISCONNECT THE POWER CORD FROM THE MACHINE. KEEP IN MIND THAT PROBLEMS OR DEFECTS THAT ARISE FROM LACK OF PERIODIC MAINTENANCE ARE NOT COVERED BY THE WARRANTY. A) Cleaning the Optical Sensors It is important to clean all the sensors to avoid any paper particles or dust from sticking to the IR transmitter or IR receiver sensors. -
Page 11: General Controls And Parts
1. General Controls and Parts 1. Hopper 5. Optical Sensors 2. Hopper Guiders 6. Control Panel 3. Retractable Handle 7. Emergency Stop Button 4. Stacker 8. Auxiliary Counting Screen... - Page 12 1. General Controls and Parts (continued) 9. Rubber Tongue 10. Bill Thickness Adjustment Screw 11. Power Switch 12. Power Cord Outlet 13. Auxiliary Screen Jack...
-
Page 13: Control Panel And Display
1. General Controls and Parts (continued) 1.1 Control Panel and Display 1. Pre-set Number (Batch) 2. Counting Number (Counter) 3. Batch "+" Button (To add) 4. Batch "-" Button (To subtract) 5. Batch Button (Pre-set to 100, 50, 30, 20, 10, and 5) 6. -
Page 14: Features
Counts all bills and will detect suspicious bills using different detection methods. The AB1100 PLUS UV uses UV fluorescence detection. The AB1100 PLUS MG/UV uses both, Magnetic, and UV detection systems. 2.5 Automatic Start The machine starts counting when bills are placed in the hopper. -
Page 15: Auxiliary Counting Screen
2. Features (continued) 2.7 Auxiliary Counting Screen The AB1100 PLUS Series is equipped with an auxiliary counting screen. This accessory will help the user visualize the quantity of counted bills when the unit is placed out of his range of vision. It also serves the purpose of allowing third parties to visualize the count. -
Page 16: Operations
Select the function you want to use: "ADD", "BATCH", "UV", or "MG" using the control panel. When turned on, the unit will automatically set the "MG" and/or "UV" functions to verify for counterfeit banknotes (for AB1100 PLUS UV and/or AB1100 PLUS MG/UV models only). -
Page 17: Counting Function
3. Operations (continued) 3.3 Counting Function Once the bills are correctly placed in the hopper plate, the machine will start counting automatically. The counted bill numbers will be shown on the Display. Moreover, once the bills are removed from the stacker and a new bundle of the bill is placed into the hopper, the "Counter"... -
Page 18: Ultraviolet Detection Function
The newly counted quantity will be added to the previous one. 3.4 Ultraviolet Detection Function (Available for the models AB1100 PLUS UV and/or AB1100 PLUS MG/UV, only) UV detection function is selected or deselected by pressing the UV button on the control panel. - Page 19 3. Operations (continued) 3.4 Ultraviolet Detection Function (continued) UV Sensitivity Adjustment a- Fine-Tuning Sensitivity Adjustment (UV parameter) For adjusting the sensitivity of the UV function, press the UV button for 3 seconds. The display will show the current sensitivity level (UV-X). Using the "+"...
-
Page 20: Magnetic Detection Functions
To set the desired sensitivity level, press RESTART. NOTE: The ultraviolet and magnetic detection systems integrated with the AB1100 PLUS (models UV and MG/UV only,) are valuable instruments that help the user verify the legitimacy of bills. However, like all other... -
Page 21: Add" Function
3. Operations (continued) 3.6 "ADD" Function The addition will be performed by pressing the "ADD" button. In this case, the unit will add all the counting performed with this function ON. Removing the counted bills from the stacker will not clear the previous quantity already counted. -
Page 22: Batch" Function
3. Operations (continued) 3.9 "BATCH" Function By pressing the BATCH button sequentially, the pre-set batching value will change from 100, 50, 30, 20, 10, 5, and OFF. Custom batching can be set up in case the user needs a different amount. The user must select the nearest pre-set batching value and reach the final value using the + and - keys. -
Page 23: Emergency Stop Feature
3. Operations (continued) 3.10 Emergency Stop Feature The AB1100 PLUS Series is equipped with an emergency stop button, which protects the user in the event unintended objects (e.g. neckties, scarves, etc.) reach the feeding rollers of the unit. If the internal resistance increases beyond the parameters of normal bill counting, the counting operation is stopped immediately. -
Page 24: Avoiding Problems
Pre-select the bills you are going to count in the machine. Do not count bills: With staples or metal clips Torn or washed Profusely stained Covered with adhesive media (for AB1100 PLUS UV and AB1100 PLUS MG/UV models, only) 4.2 Jamming Before you start operating the machine, make sure that there are no foreign elements (such as silica bags) obstructing the moving parts of the unit. -
Page 25: Counting Is Wrong (Miscounting)
4.4 Additional Recommendation The models AB1100 PLUS UV and AB1100 PLUS MG/UV should never be placed under intense light sources. The sensibility of the UV sensors may be affected. -
Page 26: Maintenance
5. Maintenance 5.1 Verifying the Adjustment of the Hopper Plate The hopper plate ensures proper feeding of the bills for counting. It is secured to the back of the unit by two pivoting points and a magnetic lock. To verify that the Hopper Plate is properly adjusted, press down, or lift the hopper plate and look for any displacement (see Figure 1). -
Page 27: Flipping The Rubber Tongue
5. Maintenance (continued) 5.2 Flipping the Rubber Tongue When should the rubber tongue be flipped? The rubber tongue should be flipped when the bill thickness adjustment screw does not solve the problem of improper banknote feeding or repeated miscounting errors. Procedure: Press the hopper plate (metal plate) downward (Figure 1). - Page 28 Make sure the rubber tongue is 1/4" ahead of the tips of the metal plate that holds it down. Once both sides of the rubber tongue have been used, contact your local service representative or AccuBANKER to get a new one. Figure 3A Figure 3B...
-
Page 29: Error Messages
6. Error Messages MESSAGES POSSIBLE CAUSES SOLUTION a) Remove the suspicious bill and count again UV ALARM Suspicious UV features b) In case you need it, reduce the UV sensitivity a) Remove the suspicious bill and count again MG ALARM Suspicious MG features b) In case you need it, reduce the MG... -
Page 30: Specifications
7. Specifications Counting Speed: 1300 notes/min Feeding System: Roller Friction System (Back-loading) Hopper Capacity: 100 old bills or 200 new bills Stacker Capacity: 100 old bills or 200 new bills Display: High-Resolution LCD Display Bill Material: Polymer Notes (plastic) and Paper Notes Size of Countable Bills: 10 x 5 - 18.5 x 10 cm Thickness of Countable Bills: 0.06 - 0.12 mm Ambient Temperature: 32°F - 104°F (0 C - 40 C) - Page 31 ® AccuBANKER USA 7104 NW 50th St Miami, FL 33166 9AM- 5PM ET Monday through Friday www.AccuBANKER.com Please give us a call at 1-888-993-2228...
