Overview
2 Overview
The IXXAT FlexRay interface has one or more FlexRay bus connections. Communi-
cation between the IXXAT FlexRay interface and the PC occurs via receive and
transmit FIFOs.
The programming interface of the IXXAT FlexRay interface board described in this
document is based on COM technology. The board itself and the FlexRay control-
lers are thus represented by COM objects.
PC
MC

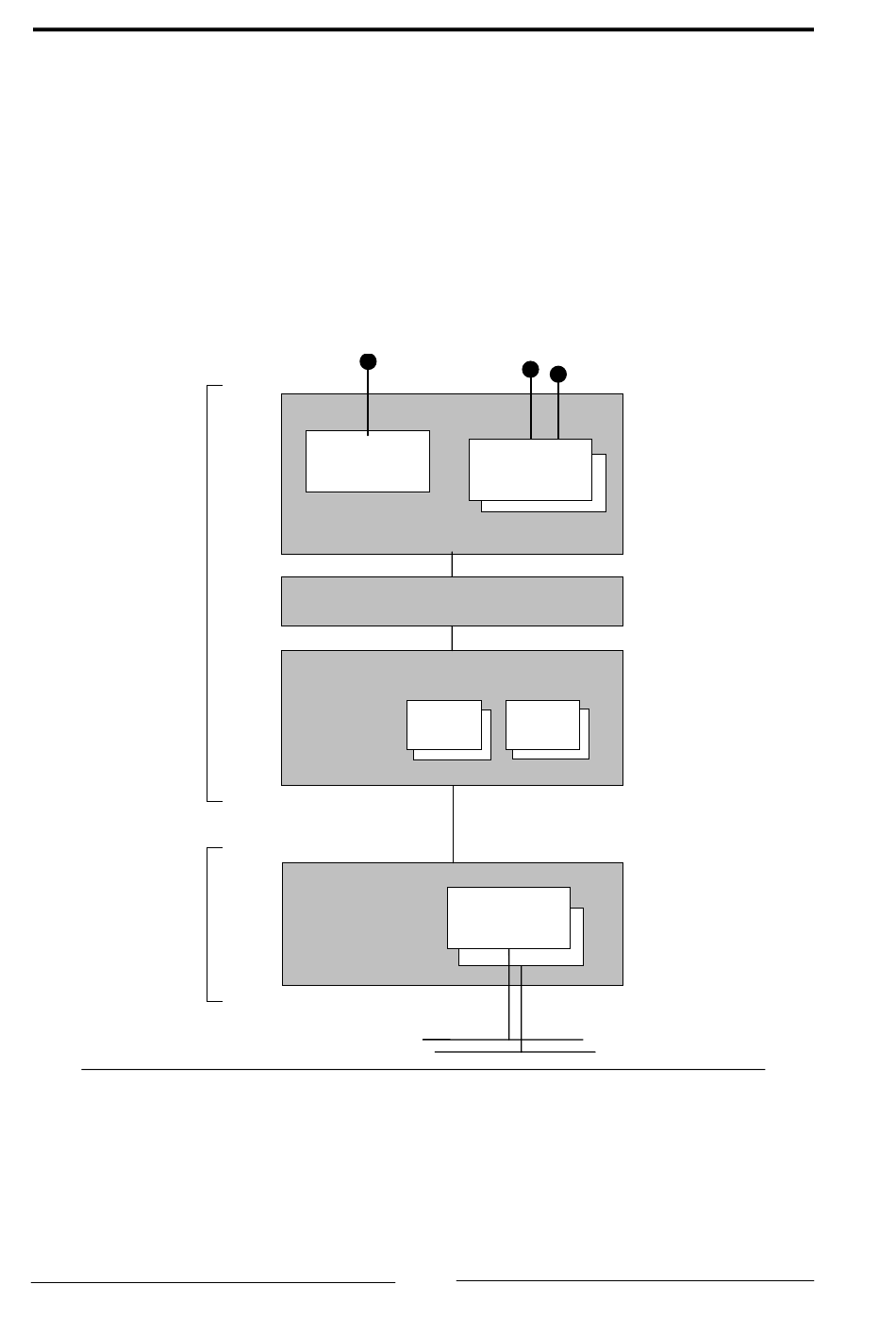

Fig. 2-1: PC FlexRay interface and programming interface
Copyright IXXAT Automation GmbH
IUciBoard
Board
Programming interface
Driver
FIFOs
FlexRay
Tx FIFO
IXXAT FlexRay
Interface
FlexRay
8
IUciFlexRayCtrl
FlexRay
Controller
FlexRay
Rx FIFO
FlexRay
Controller
UCI Programming Manual FlexRay, V1.13
