HMS Intesis INWMPLGE001R000 Installation Manual

Interface INWMPLGE001R000
Safety instructions
WARNING
Follow carefully this safety and installation instructions. Improper work may lead to serious harmful for your health and also may
damage seriously the interface and/or the AC indoor unit.
• This interface must be installed by accredited technical personnel (electrician, installer or authorized technical personnel) and
following all the safety instructions.
• This interface must only be installed in a restricted access location.
• Before manipulate the AC indoor unit be sure it is completely disconnected from Mains power.
• In case of installation of the interface inside the AC indoor unit, fix the interface and communication cables preferably to any
appropriate point of the plastic cover of the unit taking care of no blocking free movement of mobile parts and as far as possible
from tubes containing liquids and power cables.

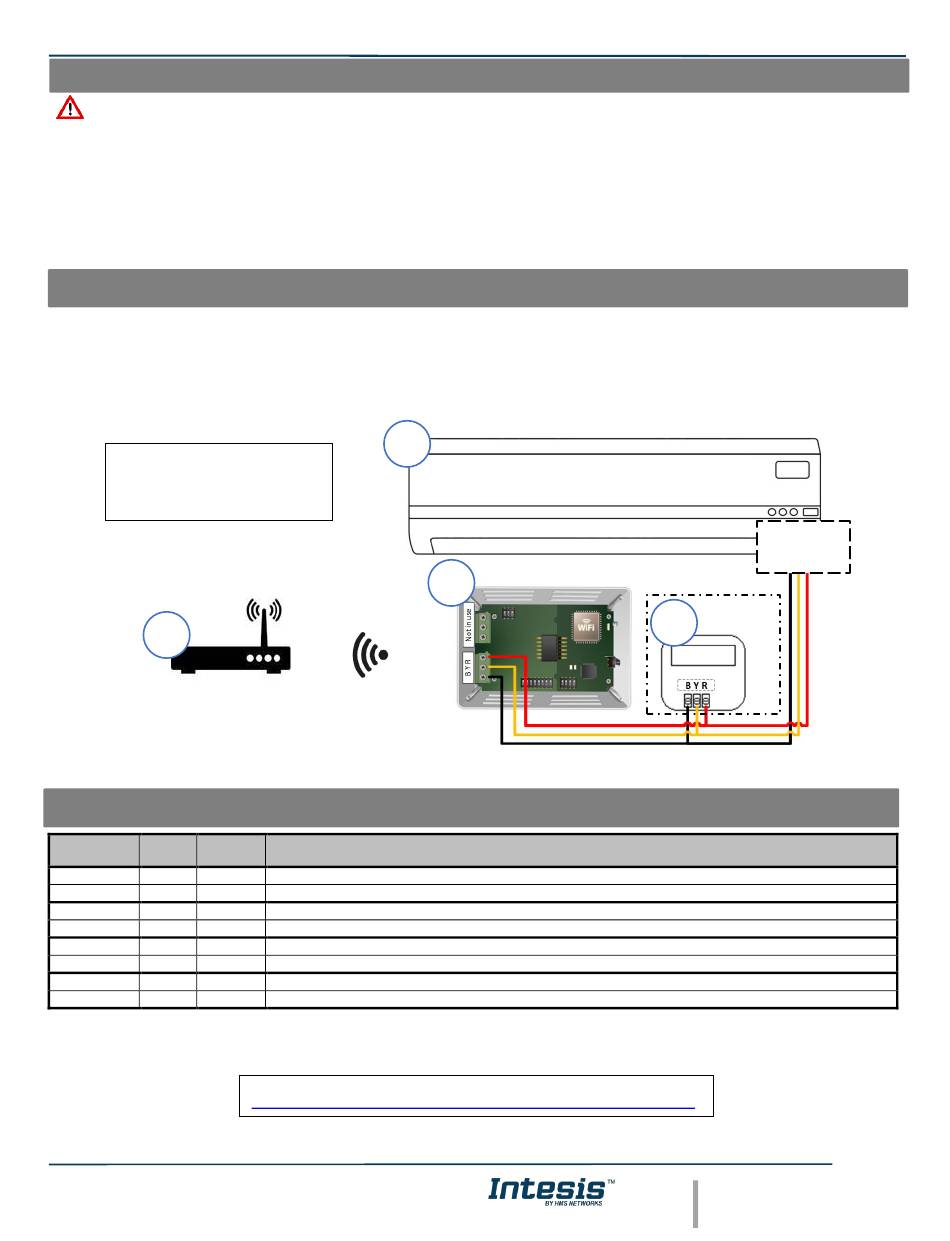

Installation instructions
1. Unplug the LG system from mains electricity.
2. Connect Intesis RC port to LG's Indoor Unit RYB terminals. Respect the polarity according to the following scheme.
3. Connect Wired Remote Control in parallel to RYB bus (if present).
4. Configure the Intesis switches (see below).
5. Plug the LG system to mains electricity.
1. Wi-Fi Access Point or Router
2. Intesis device
3. Wired Remote Controller
4. Indoor unit
4.
1
Switch configuration
Binary value Decimal Switches
value
b ...b 1 2 3 4
0 4
0xxx 0  x x x
1xxx 1  x x x
x0xx 0 x  x x
x  x x
x1xx 1
xx0x 0 x x  x
xx1x 1 x x  x
xxx0 0 x x x 
xxx1 1 x x x 
SW3: This switch determines the performance of the device. Running in High Performance Mode means maximum consumption and maximum device performance.
SW4: This switch determines the Wi-Fi range of the device. Maximum range is set by default. Consider that changing this switch may affect to device WiFi communication,
happening a device in a running installation not to reach the current access point or Wi-Fi network to which is connected.
NOTE: Remember that you need to power cycle the climate system or the Intesis device for the changes in the switches to be applied.
Rev.1.0
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
4
Description
Slave - LG Controller must be present in RYB bus configured as Master (Default value)
Master – LG Controller not needed in RYB bus. If it exists, it must be configured as Slave
Error Type B – Machine must be Type B (Default value)
Error Type A – Machine must be Type A
Low Power Mode
High Performance Mode (Default value)
Wi-Fi power is limited
Max Wi-Fi power (default value)
More information about the product and its manuals can be found at:
https://intesis.com/products/ac-interfaces/lg-gateways/lg-ascii-wifi-vrf-lg-rc-wmp-1
2
BYR BUS
Installation Manual
BYR
connector
OPTIONAL
3
URL https://www.intesis.com
