On Deck Installation - Inter-fab SETBACK Assembly/Installation Instructions

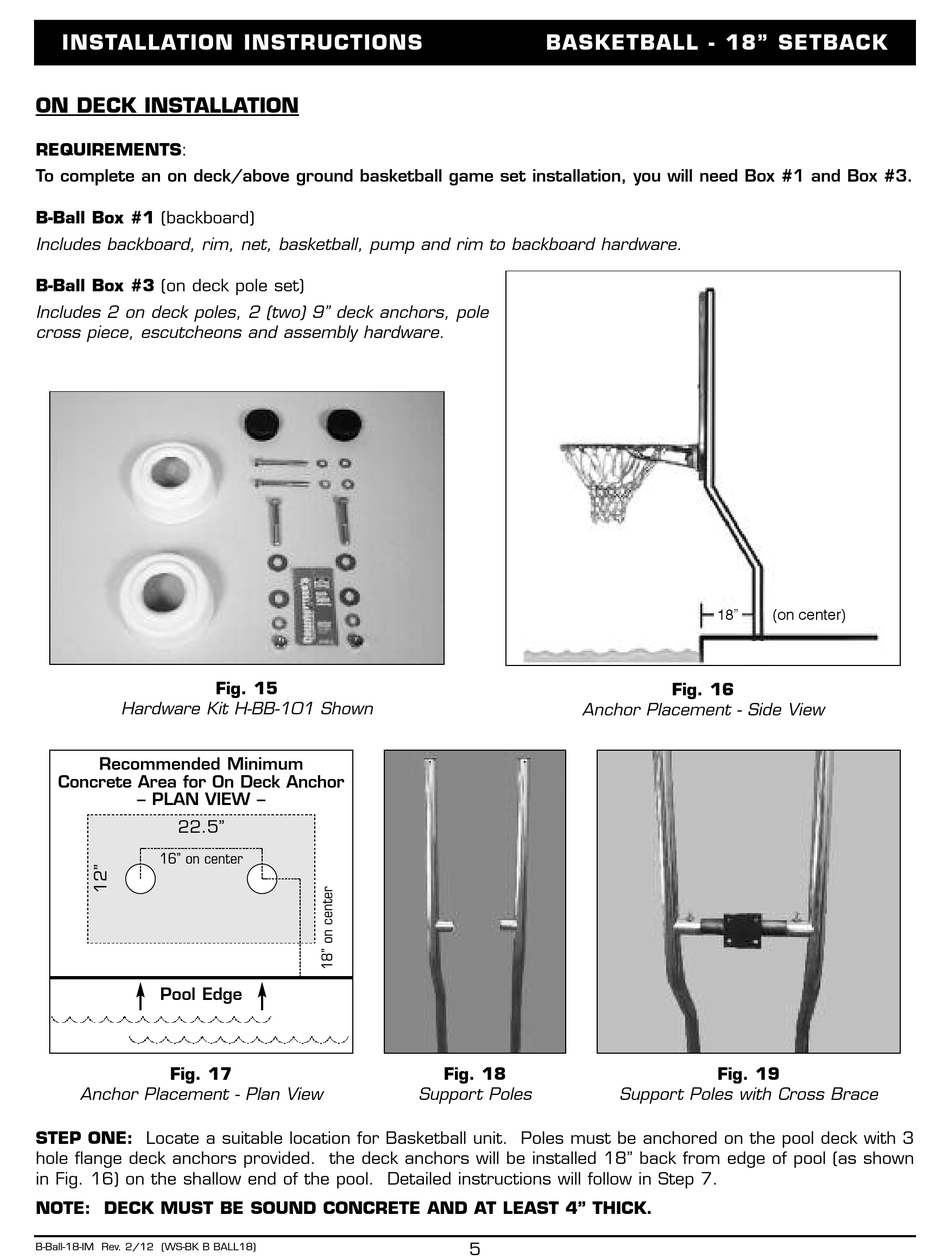

INST LL TION INSTRUCTIONS
ON DECK INST LL TION
REQUIREMENTS:
To complete an on deck/above ground basketball game set installation, you will need Box #1 and Box #3.
B-Ball Box #1 (backboard)
Includes backboard, rim, net, basketball, pump and rim to backboard hardware.
B-Ball Box #3 (on deck pole set)
Includes 2 on deck poles, 2 (two) 9" deck anchors, pole
cross piece, escutcheons and assembly hardware.
Hardware Kit H-BB-101 Shown
Recommended Minimum
Concrete rea for On Deck
– PL N VIEW –
22.5"
16" on center
Pool Edge
Fig. 17
nchor Placement - Plan View
STEP ONE: Locate a suitable location for Basketball unit. Poles must be anchored on the pool deck with 3
hole flange deck anchors provided. the deck anchors will be installed 18" back from edge of pool (as shown
in Fig. 16) on the shallow end of the pool. Detailed instructions will follow in Step 7.
NOTE: DECK MUST BE SOUND CONCRETE
B-Ball-18-IM Rev. 2/12 (WS-BK B B LL18)
Fig. 15
nchor
B SKETB LL - 18" SETB CK
nchor Placement - Side View
Fig. 18
Support Poles
ND T LE ST 4" THICK.
5
18" (on center)
Fig. 16
Fig. 19
Support Poles with Cross Brace
