In Deck/In Ground Installation - Inter-fab SETBACK Assembly/Installation Instructions

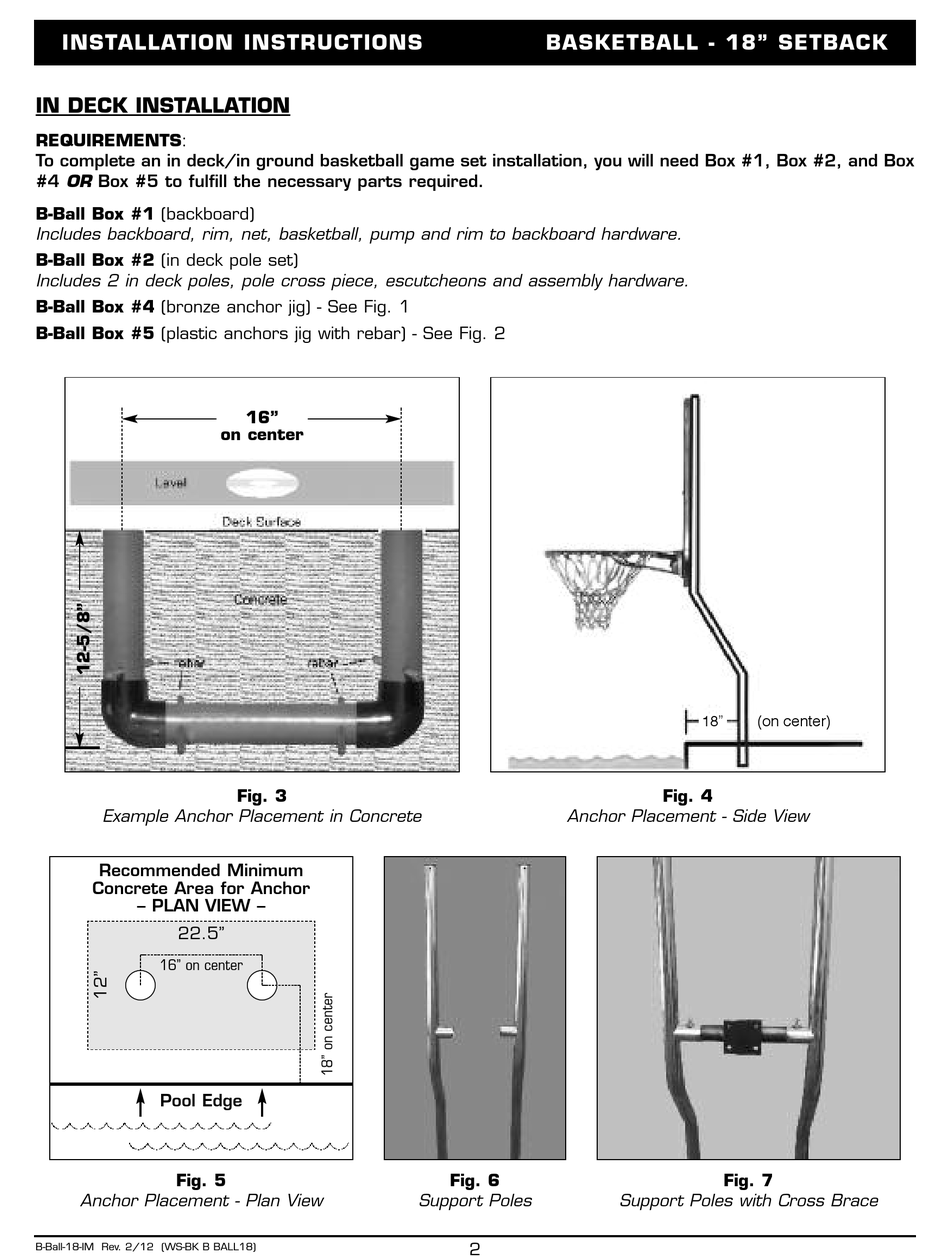

INST LL TION INSTRUCTIONS
IN DECK INST LL TION
REQUIREMENTS:
To complete an in deck/in ground basketball game set installation, you will need Box #1, Box #2, and Box
#4 OR Box #5 to fulfill the necessary parts required.
B-Ball Box #1 (backboard)
Includes backboard, rim, net, basketball, pump and rim to backboard hardware.
B-Ball Box #2 (in deck pole set)
Includes 2 in deck poles, pole cross piece, escutcheons and assembly hardware.
B-Ball Box #4 (bronze anchor jig) - See Fig. 1
B-Ball Box #5 (plastic anchors jig with rebar) - See Fig. 2
Example nchor Placement in Concrete
Recommended Minimum
Concrete rea for
– PL N VIEW –
22.5"
16" on center
Pool Edge
Fig. 5
nchor Placement - Plan View
B-Ball-18-IM Rev. 2/12 (WS-BK B B LL18)
16"
on center
Fig. 3
nchor
B SKETB LL - 18" SETB CK
nchor Placement - Side View
Fig. 6
Support Poles
2
18" (on center)
Fig. 4
Fig. 7
Support Poles with Cross Brace
