International Concepts Whitewood T-7B Assembly Instructions

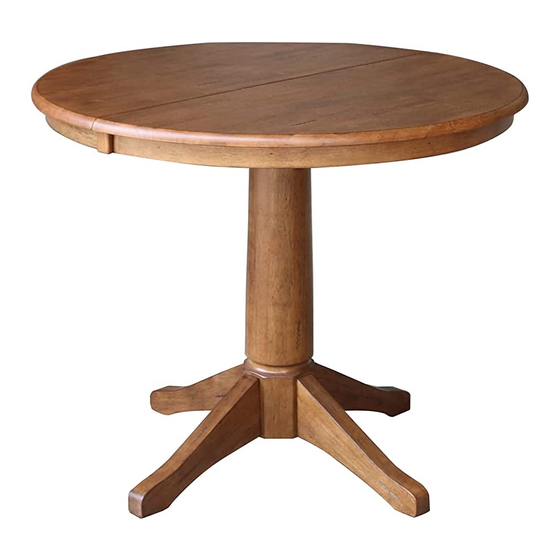

Transitional pedestal for solid top

Description

Item No.

Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take

the time to read and follow the assembly instructions carefully.

ITEM : T-7B

ASSEMBLY INSTRUCTIONS

: TRANSITIONAL PEDESTAL FOR SOLID TOP

: T-7B

BEFORE ASSEMBLY

- 1 -

Printed in Vietnam

Table of Contents

Do you have a question about the Whitewood T-7B and is the answer not in the manual?

Page 1 ASSEMBLY INSTRUCTIONS Description : TRANSITIONAL PEDESTAL FOR SOLID TOP Item No. : T-7B BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. ITEM : T-7B Printed in Vietnam - 1 -...
Page 2 Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present. If hardware is missing or you have difficulty assembling this product, please call Toll Free: 1-888-944-8396.
Page 3 STEP 2 Detach mounting plate from a table top with Allen key (6) as shown below. REMOVE STEP 3 Attach the mounting plate from Step 2 to top of the column (B) with nuts (3), washers (2) and (1). Tighten with the wrench (4).
Page 4 STEP 4 Attach the mounting plate back to the table top with bolts and washers (from Step 2). Tighten with Allen key (6). Assemble the height adjustable levelers (5) at bottom of legs (A). ITEM : T-7B Printed in Vietnam - 4 -...
