Summary of Contents for ECO-WORTHY CSP600
-
Page 2: Table Of Contents
Contents ....1 Important Safety Information General Safety Information ....1 Inverter safety ........2 Bayttery Safety ........2 General Information ......5 Key feature ..........3 Installation ...........5 Location Recommendation ..........5 Wiring Step ..............6 Solar Panel Wiring ............7 ..........8 Operation Maintenance ........8 Troubleshooting ........10... -
Page 3: Important Safety Information
Important Safety Information This manual contains important safety, installation, and operating instructions for the inverter.The following symbols are used throughout the manual. Warning:indicate a potential dangerous condition.Use extreme caution when performing this task. Caution:indicate a critical procedure for safe and proper operation of the inverter. -
Page 4: Inverter Safety
Inverter safety ALWAYS make sure inverter is OFF position and disconnect all AC and Be careful when touching bare terminals of capacitors as they may retain high lethal voltage even after power is removed. Connecting when working on any circuit associated with the inverter- when connecting battery terminals,ensure the polarity of the battery connections is correct.Incorred polarity may cause permanent damage to the unit. -
Page 5: General Information

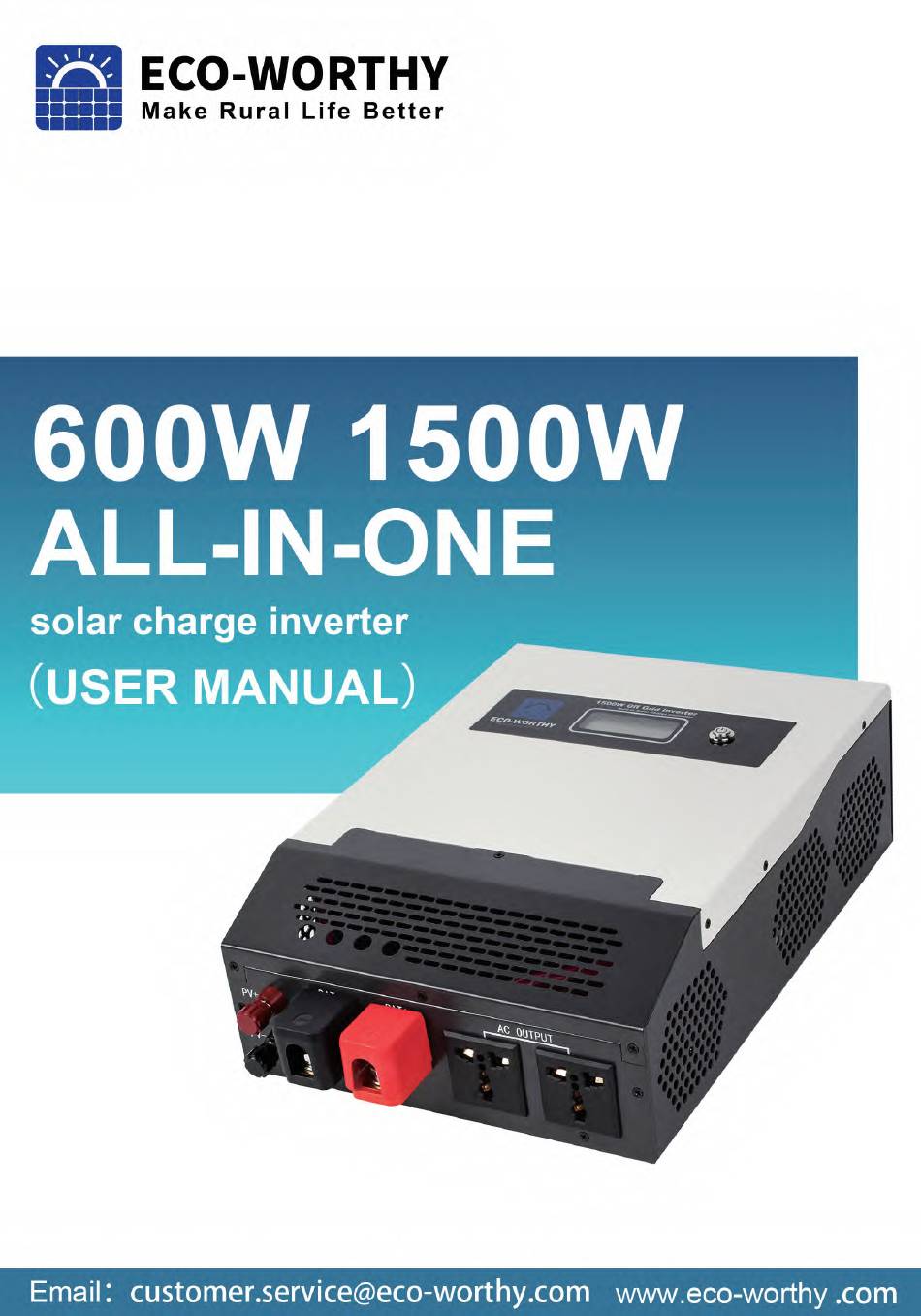

General Information The Eco-worthy ALL-IN-ONE Pure Sine Wave Charge Inverter delivers superior performance for Off-grid application，built-in solar charge controller for your solar panel kit. Key feature 1.Built-in PWM charge controller. 2.SPWM pure sine wave output. 3.Dynamic LCD display and intelligent LEDs providing important system information. - Page 6 ① Solar input terminal ② Battery terminal ③ AC Outlets Dimensions...
-
Page 7: Installation
Installation Warning:Make sure inverter is in the off position before connecting anything. Caution:Do not over tighten the terminals.This could potentially damage the unit. Location Recommendation 1.Dry，cool，well-ventilated area Inverters must be in an area where the fans are not blocked or where they are not hit directly by the sun. - Page 8 Battery Wiring Caution:Be careful of the positive and negative poles. Reversing the poles may cause permanent damage to the inverter. There may be a sparking occurring even the inverter is in the off posi- tion. To minimize sparking, it is recommended that the user have the appropriate size wire feeding into the solar inverters and/or install an external fuse leading into the inverter.
-
Page 9: Solar Panel Wiring
Solar Panel Wiring Maximum PV Recommended Recommended Recommended Charging Current wiring circuit breaker wiring 30A/50A 4mm² 4.3mm/4.3mmΦ Bare wire When combining panels in parallel it is recommended to use a combiner box for safety and organizational precautions. This will require combin- ing solar panels in series or series parallel to achieve the minimum voltage DC requirement. -
Page 10: Operation
Operation Assuming all connections are correct and tightly secured, Locate the power button on the solar inverter and press power switch to the ON position. The following describes the basic operation of the solar invert- er charger. LED Display Operation (1) Solar input voltage (3)AC output voltage (2) Present battery capacity... - Page 11 Product specification 600W 12V- 1500W Model 110V/230V 24V-110V/230V (CSP600) (CSP1500) Input Voltage Rated Power 600W 1500W Peak Power 1200W 3000W Output Waveform Pure Sine Wave Maximum PV Array Open Circuit Voltage Maximum PV Array Wattage 500W 1200W Maximum Solar Charge Current...
-
Page 12: Troubleshooting
Troubleshooting Description Solution Fault code Fault Name too many solar panels in series reduce amount of solar panels in series Solar panels overvoltage wrong solar panel choose suitable panels DC-DC voltage increase Generatrix overvoltage repair system failed DC-DC voltage increase Generatrix undervoltage repair system failed...
