Summary of Contents for ECO-WORTHY 120W Foldable Solar Panel Charger
-
Page 2: Table Of Contents
Contents 1. Product Features 2. Specification 3. Accessories Introduction 4. Application 5. Use Tips 6. Tips for Controller Use 7. Important Safety Information 8. Warning... -
Page 3: Product Features
（3）Durable Oxford cloth; PET matte material panel; IPX4 waterproof and splash-proof; （4）Outdoor power supply, which can charge various devices (battery, power station, laptop, mobile phone etc.) Specification Product Name 120W Foldable Solar Panel Charger Rated Power 120W (4 x 30 W) Solar Cell Monocrystalline Open Circuit Voltage 21.6 V... -
Page 4: Accessories Introduction

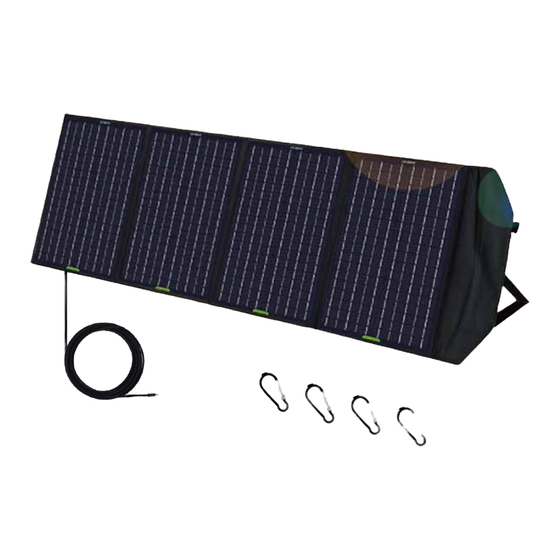

ECO-WORTHY Accessories Introduction The 120W foldable solar panel charger is composed of 4 high-efficiency 30W solar panels. The extension cable of the soalr panel is 3 meters long, which can meet most of your needs. There are 4 mountaineering metal buckles in the package, which can be hung on backpacks and RVs,great choice for camping. - Page 5 ECO-WORTHY 20A PWM Solar Charge Controller The second-generation solar charge controller can charge various types of batteries (Lithium, SLA, Gel..) Two USB output ports, using USB 2.0 technology, stable direct current output. The controller is pre-connected with 3 meters extension cable with battery...
-
Page 6: Application
ECO-WORTHY 10 kinds of adapter connectors for most solar generator like Jackey, Suaoki, Goal Zero, Paxcess and other brands. It also supports charging laptops such as Dell, HP, Lenovo, Thinkpad, etc Application Application 1: Charge for battery and mobile phone a: Connect the alligator clips of the charge controller to battery;... - Page 7 ECO-WORTHY Application 2: Charge for solar generator and laptop a: Choose a suitable DC adapter from 10-in-1 DC adapters for your solar generator or laptop. b: Connect solar panel extension cable with DC adapter to generator or laptop.
-
Page 8: Use Tips
ECO-WORTHY Use Tips Tips 1:A protective film is attached to the surface of the solar panel, which should be removed before use. Tips 2: The surface of the solar panel cannot be covered with shadows, otherwise it will affect the power generation efficiency of the entire solar panel. -
Page 9: Tips For Controller Use
ECO-WORTHY Tips 5:It is forbidden to place the panel in rain. The solar panel is IPX4 waterproof and splash-proof. However, the outer packaging material of the solar panel is made of wear-resistant Oxford cloth, so it cannot be used in rainy weather or in water. -
Page 10: Important Safety Information
This product is designed for use under specific conditions. If you are unsure of whether or not the product can be used in a certain way, please contact us at our email address, info@eco-worthy.com. We strongly discourage the alteration or modification of this product. If you need to alter or modify the product, please contact us for further information. - Page 11 ECO-WORTHY ·Please do not modify this product in any way. Unauthorized modification of this product may impact the product’s functionality or safety, and could reduce the product’s service life. ·Use an appropriate electrical load (less power than this product’s power output).
